| Prod Model: |
LZFW2-24W3 |
| Rated Primary Current: |
5-800A |
| Rated Load: |
≤15va |
| Rated Frequency: |
50Hz or 60Hz |
| Key Words: |
IP65 Current Transformer |
| Rated Voltage: |
20kv |
| Accuracy Class: |
0.2s |
| Standards: |
IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Rated Secondary Current: |
5A or 1A |
| Rated Short-Time Thermal Current: |
60ka, 1s |
| Material: |
Epoxy Resin |
| Application: |
Lighting |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
Product description

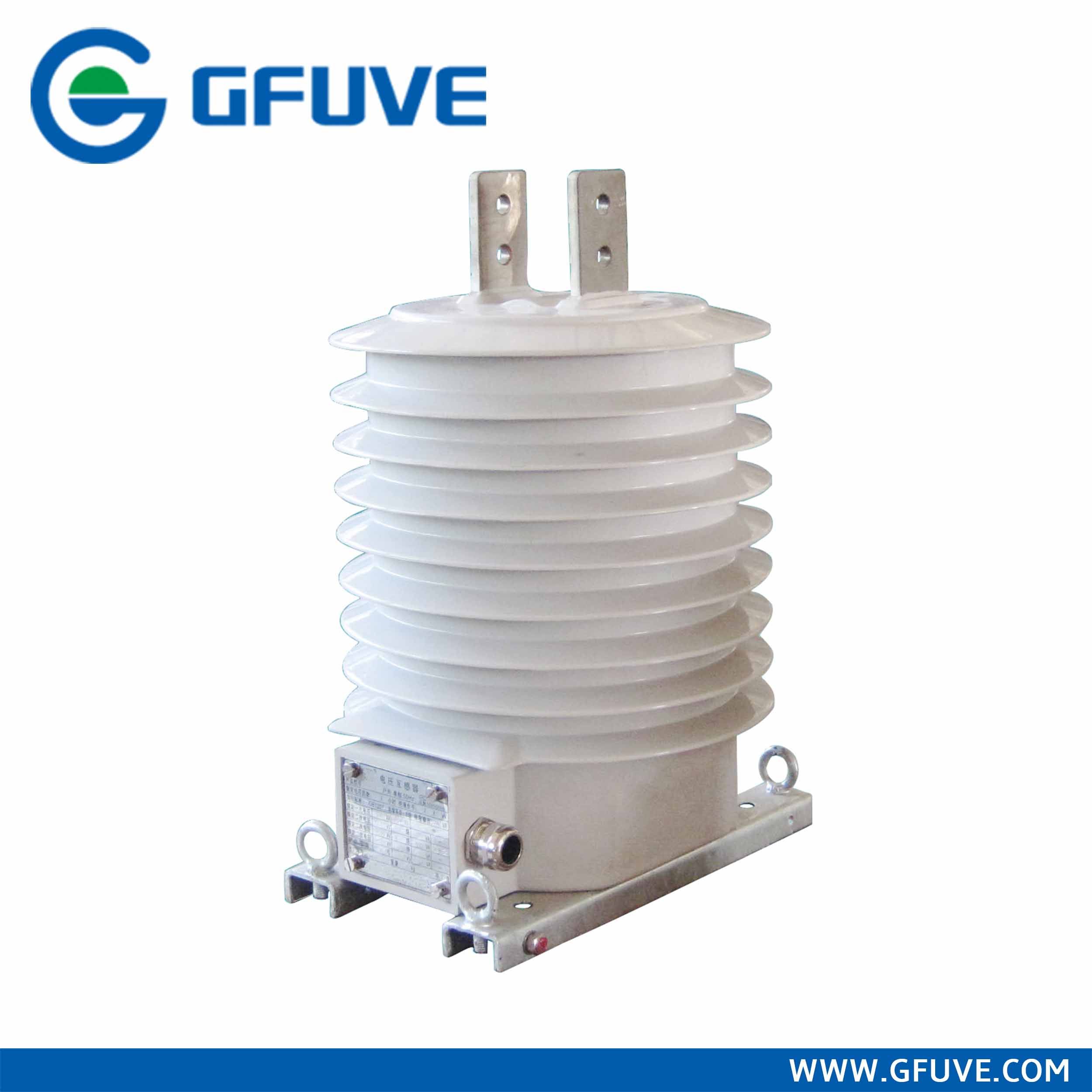

The LZFW2-24W3 IP65 Proofwater Outdoor Current Transformers ct are fully enclosed and cast in epoxy resin. Transformer is equipped with one core and coil assembly rated for measurement and protection. The transformers are designed for electric power systems of 50Hz/60Hz rated frequency and 20kV rated voltage. They are used for outdoor mounting. The performances of the products meet standards IEC60044-1, IEC61869-2 and IEEE C57.13. The products are applied to metering electric energy, voltage controlling and relay protection.
Parameters
| Technical parameters |
| Standards | IEC60044; IEC 61869; ANSI/IEEE C57.13 |
| Rated primary current | 5-800A |
| Rated load | ≤15VA |
| Rated frequency | 50Hz or 60Hz |
| Rated secondary current | 5A or 1A |
| Rated short-time thermal current | 60kA, 1S |
| Rated dynamic current | 150kA |
| Rated insulation level | 12/42/75KV |
| FS | ≤10 |
| Surface creepage distance (mm) | 490 |
| Mechanical parameters |
| Material | Epoxy resin |
| Weight (kg) | 43 |
| Operating conditions |
| Operating temperature | -25°C to +55°C |
| Daily average temp | <+40°C |
| Storage temperature | -40°C to +70°C |
| Altitude | <1000 meters |
| Condition | No existence of severely begrimed, erosive and
radioactive gas in the air. Permission of long-termoperation under rated current. |
