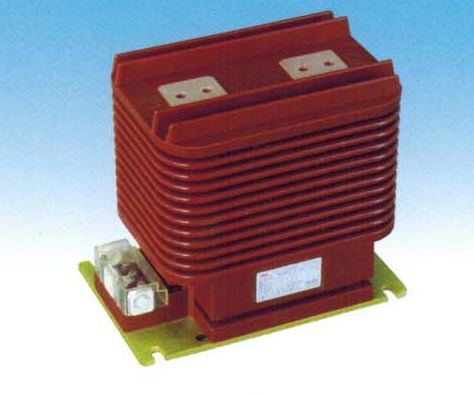

Lzzb9-36 Current Transformer Instrument Transformer

Name: Lzzb9-36 Current Transformer Instrument Transformer
Brand: all-electronics-online.com
SKU: 716629442
Availability: InStock
Rating: 4.8 (27 reviews)

Price:	US $ 400/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZB9-36/250W2G1
Application:	Instrument
Type:	Current Transformer
Phase:	Three

Product Description

Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

Main Technical Parameter

1. Rated insulation level: 40.5/95/185
2. Rated secondary current: 5A
3. Meter protection coefficient: FS less than 10

Model	Rated primary current	Rated output(VA)				Accuracy classes combination	Short time thermal current(KA/s)	Dynamic stable current(KA) (Peak)
Model	Rated primary current	0.2	0.5	5P15	5P20	Accuracy classes combination	Short time thermal current(KA/s)	Dynamic stable current(KA) (Peak)
LZZBJ9-35/250W1	20-100	10	15	/	15	0.2/0.2 0.2/0.5 0.5/0.5 0.2/5P 0.5/5P	200I m	500I m
	150-200						31.5/1	80
	300-500						31.5/2	80
	600-1250	15	30	/	20		31.5/4	80
	1500-2000	20	40	/	30		40/4	125
	2500	20	40	/	20		40/4	125
LZZBJ9-35/250W2	20-100	10	15	15	15	0.2/0.2/0.2 0.2/0.2/0.5 0.5/0.5/0.5 0.2/5P15/5P20 0.5/5P15/5P20	200I m	500I m
	150-200						31.5/1	80
	300-500						31.5/2	80
	600-1250	15	30	15	20		31.5/4	80
	1500-2000	20	40	20	30		40/4	125
	2500	20	40	20	20		40/4	125
Explanation:
L: Current transformer
Z: Support type
Z: Casting insulation
B: With protection class
J: Intensive insulation
9: Design No.
35: Rated voltage
W1(2): structure code

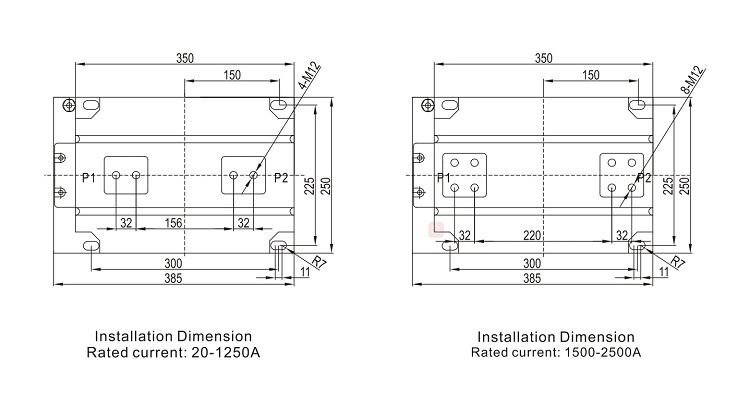

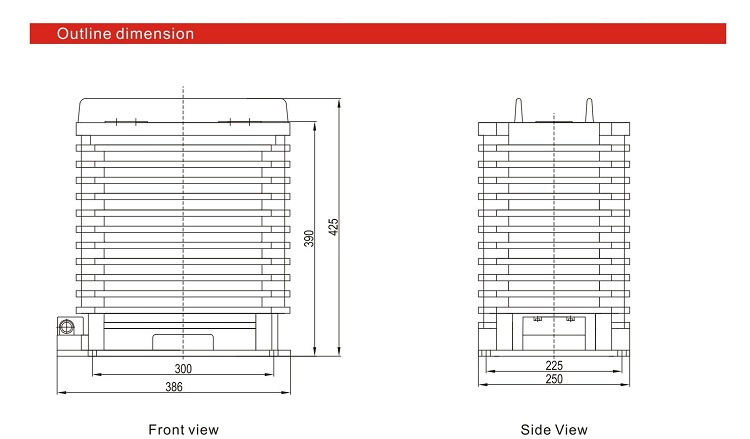

DIMENSION:

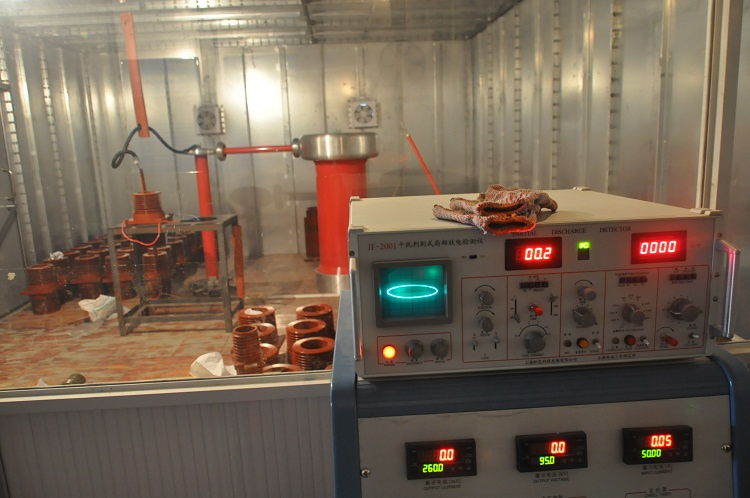

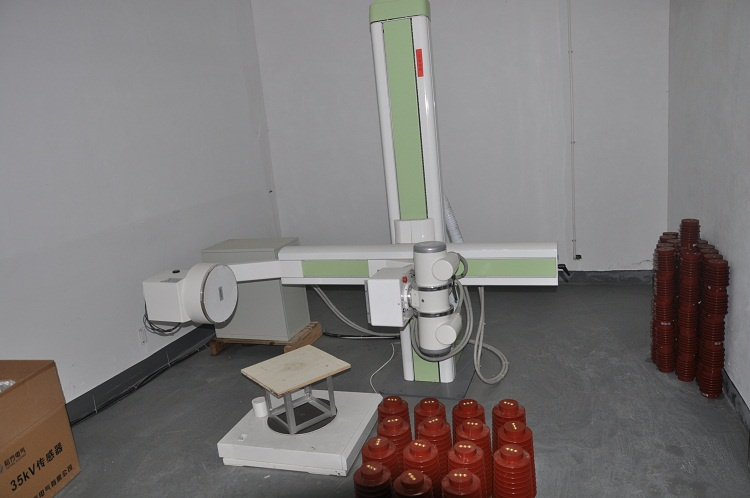

Quality Control

Shentong Technology Co., Ltd. is an integrated professional power equipment manufacturing enterprise of science, industry and trade, which is located in Wenzhou, Zhejiang which is called "The city of electrical"in China. The current enterprise registration funds is one hundred million Yuan. Our company has throughed the ISO9001 international quality certification system. We are also the national power "two network transformation"recommended enterprise. Our company is specialized in the production of HV/LV Integrated Switchgears and switchgears' accessories, power station accessories, such as: Power Transformer, 10kv-40.5kv intelligent vacuum circuit breaker, epoxy resin casting insulators, wall bushing, contact box, earthing switch, load switch, 10kv-35kv current transformer, 10kv-35kv voltage transformer, low voltage current transformers, solenoids, SF6 load switch, high voltage metering box and other electric components. Chinese professional terminal manufacture, Chinese vcb manufacture, electrical manufacture, switchgear manufacture, Chinese CT PT manufacture

Our company has a group of senior technical production staff. The company adopts modern production and management modes. With high quality products and perfect after sale Service, we got good reputation from customers. The products are widely used in aerospace, metallurgy, petrochemical, port, municipal and other industries.

We not only provide customers with excellent quality products, but also strive to use our years of professional experience to provide customers with the best solutions and characteristics of personalized services.

Product Advantages: Well and High Quality Control, Prompt Delivery, New Product, Customer's Design and Logo are Welcome, Competitive Prices, Earth-friendly Products, Small Order Acceptable, ODM Accepted, OEM Accepted,
