Lzzbj6-12A\Lzzbj6-12b\Lzzbj6-12c Current Transformer 12kv Indoor Single-Phase Epoxy Resin Type

$Lzzbj6-12A\Lzzbj6-12b\Lzzbj6-12c Current Transformer 12kv Indoor Single-Phase Epoxy Resin Type$

Price:	US $ 105-120/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ6-12A\LZZBJ6-12B\LZZBJ6-12C CURRENT TRANSFORM
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Small Size:	Block Type
Single Ratio:	Double Ratio
11kv:	50/60Hz
CT:	Epoxy Resin
Current Transformer:	Busbar Type
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

LZZBJ6-12A,LZZBJ6-12B,LZZBJ6-12C CURRENT TRANSFORMER
12kV Indoor Single-Phase Epoxy Resin Type

Technical Data
1.Rated insulation level:             12/28/75 kV or 12/42/75 kV
2. Rated frequency:                 50/60Hz
3. Installation site:                  Indoor
4. Technical standard:               IEC 61869-1:2007,IEC 61869-2:2012
                                  GB 20840.1-2010,GB 20840.2-2014
Specification

Rated transformation ratio(A)	Accuracy classes combination	Rated output(VA)
		Measuring		Protective	Protective
		0.2(S)	0.5	5P10	5P20
10~100/5	0.2 0.5 0.2/0.5 0.5/5P10 0.5/5P20	10 15	10 15	15 20	15 20
150/5
200/5
400/5
500/5
600/5
800/5
1000/5
1200~2500/5

Note:Upon request we are glad to offer transformers according to other technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

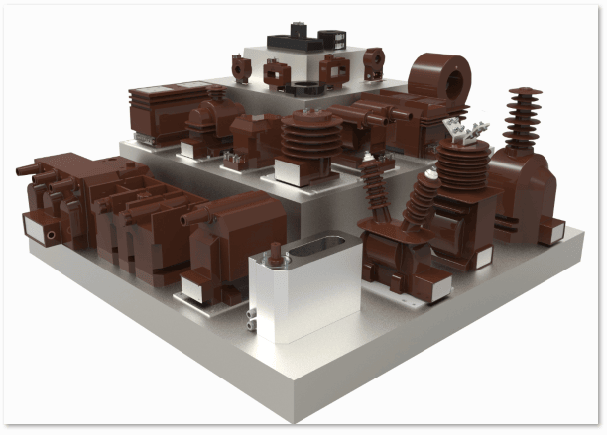

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
