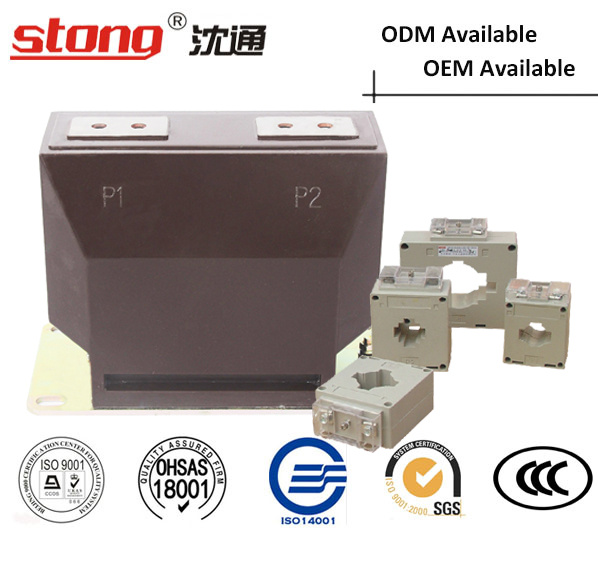

Lzzbj9-10 11kv Epoxy Resin Instrument Current Transformer

Name: Lzzbj9-10 11kv Epoxy Resin Instrument Current Transformer
Brand: all-electronics-online.com
SKU: 716598992
Availability: InStock
Rating: 4.4 (132 reviews)

Price:	US $ 80/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ9-10A1G, B1, C1
Weight:	30kg
ODM/OEM:	Available
Rated Voltage:	10kv-15kv
Rated Current:	630A-1250A
Ratio:	30/5---3000/5
Material:	Epoxy Resin
Storage:	More Than 300
Application:	Instrument
Type:	Current Transformer
Phase:	Three

Product Description

Advantages:
1.Our Company Has Great Reputation In Domestic Market.
2.Good Quality Guaranteed With Reasonable Price.
3.OEM, ODM Are Welcomed.
4.Goods Will Be Delivered On Time.
5.Factory Selling Directly

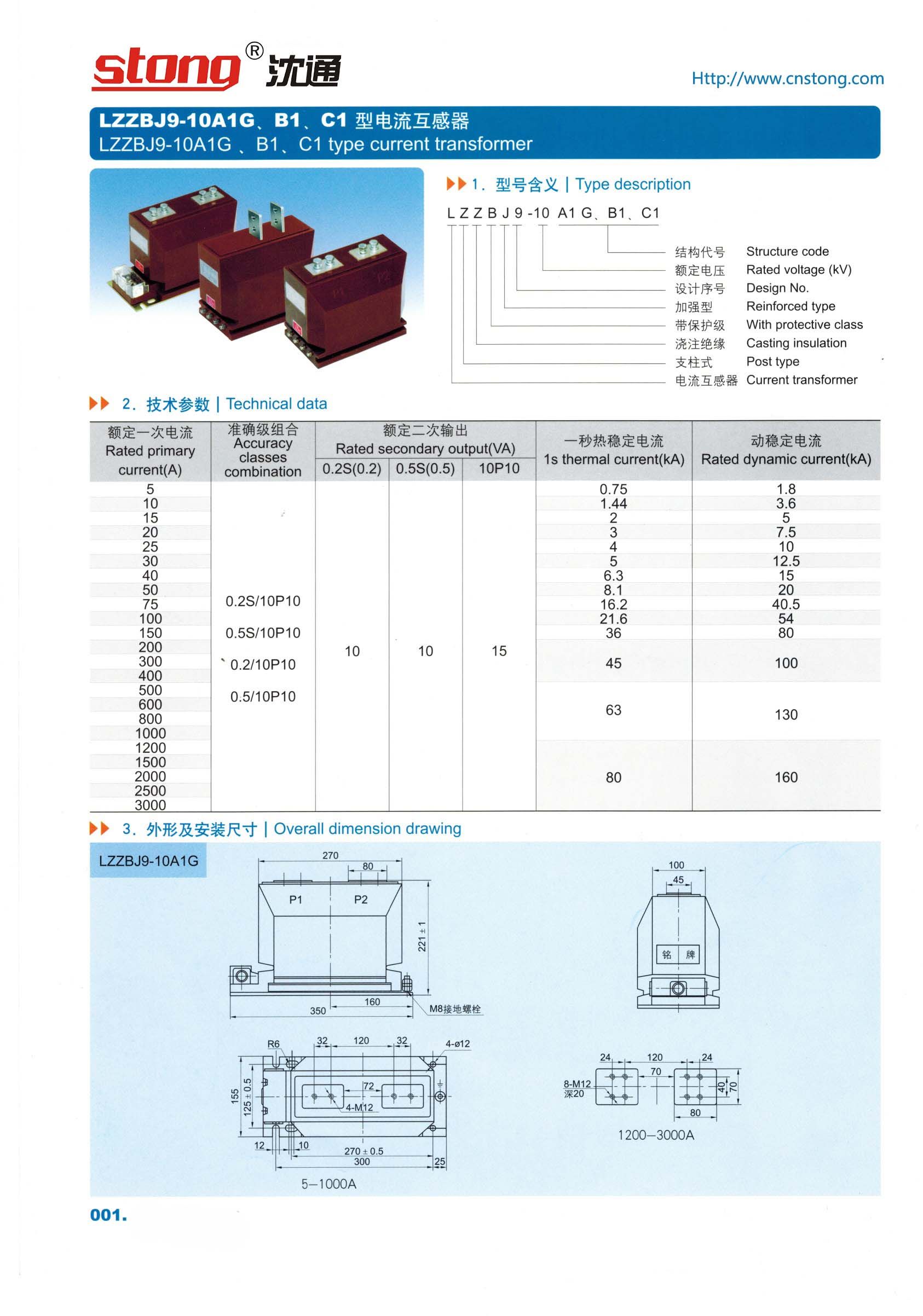

Main Technical Parameters

It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV, IEC68869-1&2.

Specification

1) lzzbj9-11c1 Single Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2 (s)/0.2 (s) 0.2 (s)/0.5 0.2 (s)/10p 0.5/10p 0.2s/0.5/10p 0.2/0.5/10p	10 15	15	15 20	10 15 20	5 (10)	150I1N	375I1N
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2000-3150/5							100	160

Note:Upon request we are glad to offer transformers according to other technical specs.

2) lzzbj9-11c1 Double Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-20/5	0.2 (s)/0.2 (s) 0.2 (s)/0.5 0.2 (s)/10p 0.5/10p	10 15	15	15 20	10 15 20	5 (10)	1.5	3.75
20-40/5							3	7.5
50-100/5							8	820
100-200/5							15	37.5
200-400/5							30	75
400-800/5							63	130
500-1000/5							80	160

Note:Upon request we are glad to offer transformers according to other technical specs.

3) lzzbj9-11c2 Single Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2 (s)/0.2 (s) 0.2 (s)/0.5 0.2 (s)/10p 0.5/10p 0.2s/0.5/10p 0.2/0.5/10p	10 15	15	15 20	10 15 20	5 (10)	150I1N	375I1N
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2000-2500/5							100	160
2500-3150/5							100	160

Note:Upon request we are glad to offer transformers according to other technical specs.

4) lzzbj9-11c1 Double Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2(s)/10p/10p 0.5/10p/10p 0.2 (s)/0.2 (s)/10p/10p/10p 0.2(s)/0.5/10p/10p	10 15	15	15 20	10 15 20	5 (10)	150I1N	375I1N
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2000-2500/5							100	160
2500-31500							100	160
