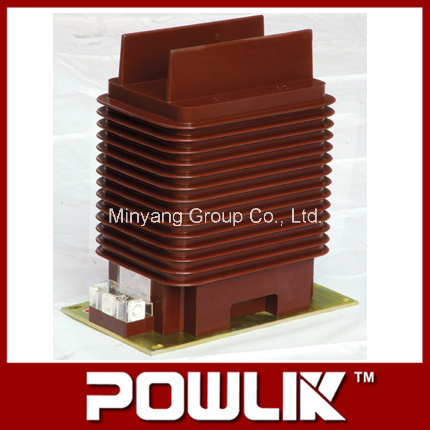

LZZBJ9-35 Current Transformer, 35kv Current Transformer

Name: LZZBJ9-35 Current Transformer, 35kv Current Transformer
Brand: all-electronics-online.com
SKU: 698050315
Availability: InStock
Rating: 4.4 (59 reviews)

Price:	US $ 8.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBJ9-35
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	35kv
Primary Current:	20A-1250A
Secondary Current:	5A
Safe Factor:	Fs Less Than 10
Application:	Electronic
Type:	Current Transformer
Phase:	Both

Product Description

LZZBJ9-35 Current Transformer/35KV Current transformer

1. Rated insulation level: 40.5/95/185
2. Rated secondary current: 5A
3. Meter protection coefficient: FS less than 10

Model	Rated primary current	Rated output(VA)				Accuracy classes combination	Short time thermal current(KA/s)	Dynamic stable current(KA) (Peak)
Model	Rated primary current	0.2	0.5	5P15	5P20	Accuracy classes combination	Short time thermal current(KA/s)	Dynamic stable current(KA) (Peak)
LZZBJ9-35/250W1	20-100	10	15	/	15	0.2/0.2 0.2/0.5 0.5/0.5 0.2/5P 0.5/5P	200I m	500I m
	150-200						31.5/1	80
	300-500						31.5/2	80
	600-1250	15	30	/	20		31.5/4	80
	1500-2000	20	40	/	30		40/4	125
	2500	20	40	/	20		40/4	125
LZZBJ9-35/250W2	20-100	10	15	15	15	0.2/0.2/0.2 0.2/0.2/0.5 0.5/0.5/0.5 0.2/5P15/5P20 0.5/5P15/5P20	200I m	500I m
	150-200						31.5/1	80
	300-500						31.5/2	80
	600-1250	15	30	15	20		31.5/4	80
	1500-2000	20	40	20	30		40/4	125
	2500	20	40	20	20		40/4	125
Explanation:
L: Current transformer
Z: Support type
Z: Casting insulation
B: With protection class
J: Intensive insulation
9: Design No.
35: Rated voltage
W1(2): structure code

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
