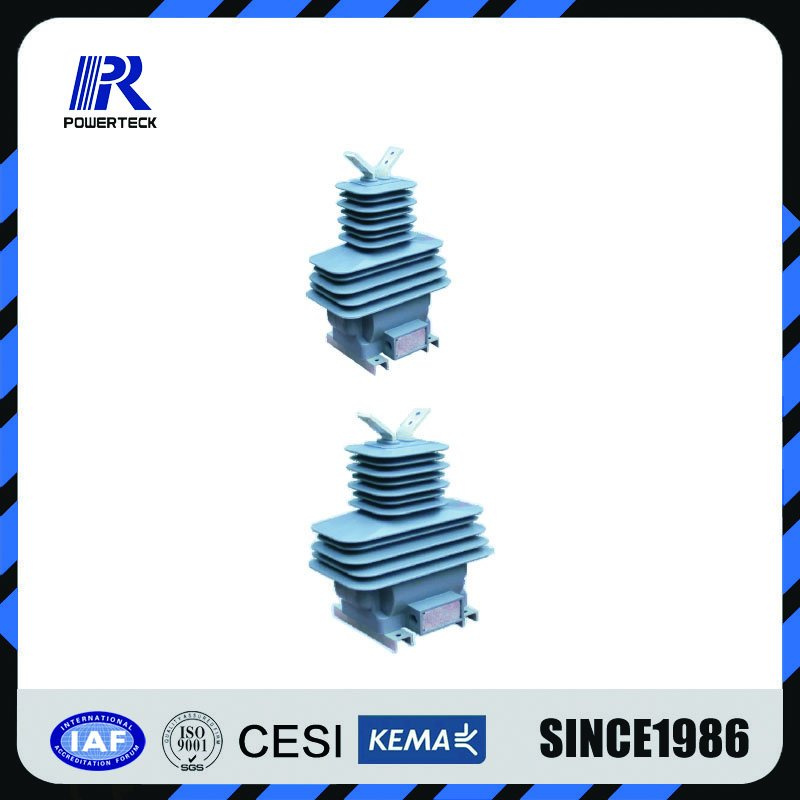

Lzzbw-35A, B 35kv Outdoor Post Type Casting Insulation Current Transformer

Name: Lzzbw-35A, B 35kv Outdoor Post Type Casting Insulation Current Transformer
Brand: all-electronics-online.com
SKU: 839310325
Availability: InStock
Rating: 4.8 (81 reviews)

Price:	US $ 430-900/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LZZBW-35
Application:	Instrument
Type:	Current Transformer
Phase:	Single

Product Description

LZZBW-35A, B OUTDOOR CURRENT TRANSFORMER

35kV Outdoor single-phase epoxy resin type

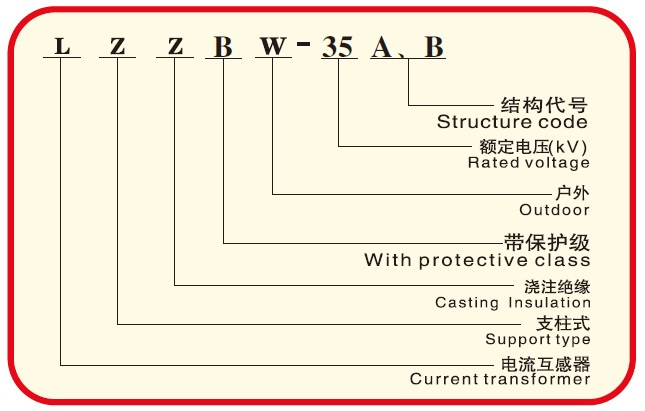

Type description

Technical data

1.rated insulation level: 40.5/95/185kV

2.rated frequency:50/60Hz

3.burden power factor: COSØ=0.8 lagging

4.technical standard according with: outdoor

5.technical standard according with:IEC60044-1:2003

Specification

LZZBW-35A

rated transformation ratio(A)	accuary classes combination	rated output(VA)			(ALF)	(FS)	short-time thermal current Ith(kA/S)	rated dynamic current Idyn(KA)
		measuring		protective
		0.2(S)	0.5	10P
10-200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P 0.2S/0.5/10P 0.2/0.5/10P	10 15	15	15	10 15 20	5 (10)	150I1n	375I1n
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5				20			63	125
1000/5							80	160
800-2000/5							80	160

Note:upon request we are glad to offer transformers according to other technical specific.

rated transformation ratio(A)	accuary classes combination	rated output(VA)			(ALF)	(FS)	short-time thermal current Ith(kA/S)	rated dynamic current Idyn(KA)
		measuring		protective
		0.2(S)	0.5	10P
10-200/5	0.2(S)/0.2(S)/0.5 0.2(S)/0.5/10P 0.2(S)/0.5/10P/10P 0.2(S)/10P/10P/10P	10 15	15	15	10 15 20	5 (10)	150I1n	375I1n
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5				20			63	125
1000/5							80	160
800-2000/5							80	160

Note:upon request we are glad to offer transformers according to other technical specific.

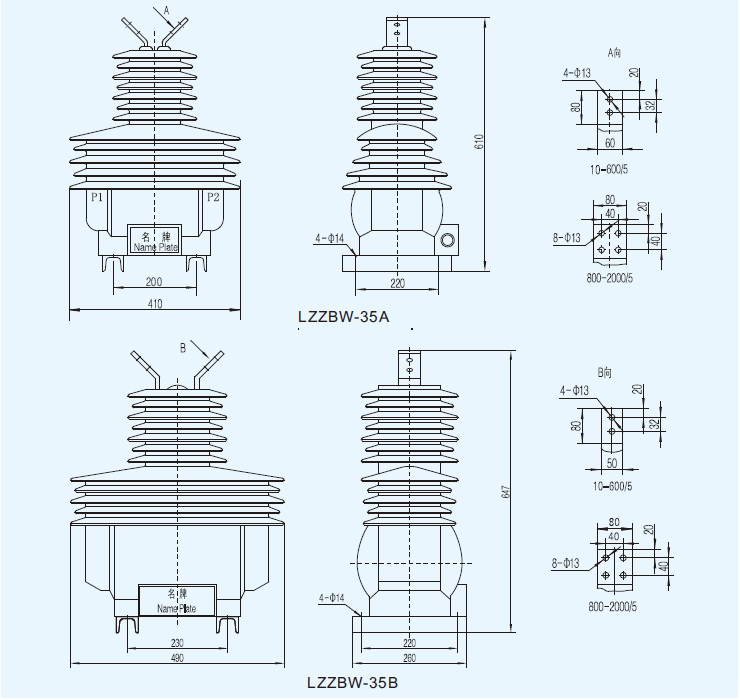

Outline drawing

ATTENTION:

1.The payment term: We accept TT,30% deposit and 70% balance against copy of BL.
2.The delivery time: Usually it will take about 15-20 days.
3.The standard of package: Usually use strong plywood case for protection.
4.The material of transformer: We have two types, one is with copper and another one is with aluminum. It depends on your requirement. In fact, those two have difference if normal work well. Only except the long life. Copper is better and also higher price.
5.The logo: If you have good quantity, it absolute no problem to do OEM.
6.Our market: our products are popular in Indonesia, Philippines, Russia, USA, Middle East and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation..
7.Warranty: in 12 month since BL date.
