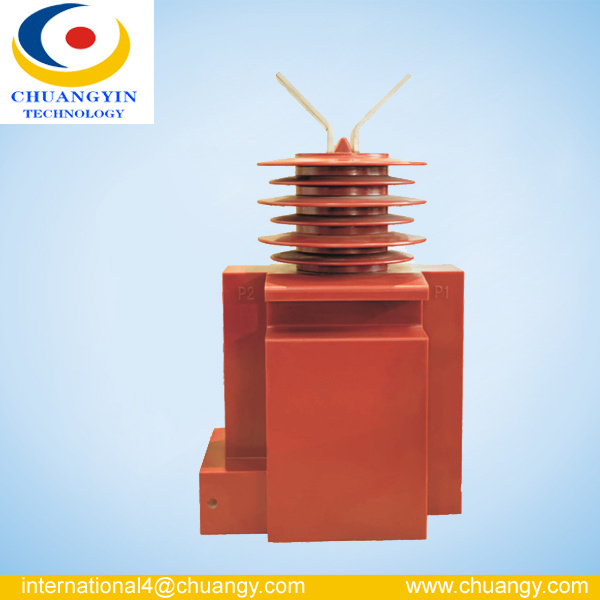

LZZBW-36W3 Outdoor Current Transformer

Description
LZZBW-36W3 current transformer adopts outdoor epoxy resin casting and belongs to support type full-closed structure. The product can be made four secondary windings,each winding can be tapped to realize three ratios with large external insulation creep distance, withstanding dirtiness and ultraviolet radiation. Be suitable for matching with 36kV (Up to 40.5 kV) outdoor for measuring electric energy, current and protective relaying.

Main technical parameter
1. Rated voltage: 30 kV or 33 kV or 34.5kV or 35kV etc

Rated secondary current: 5A or 1A
Rated insulation level: 36/70/170 kV (40.5/95/200 kV)
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
Other technical parameter pls see as follow:

Rated current ratio(A)	Secondary accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
50-75-100/5	0.2S/0.5/10P 0.2/0.5/10P 0.2/0.5/10P/10P 0.2S/0.5/10P/10P	20 25	25	30 50	5 (10)	10 15 20	150I1n	375I1n
75-100-150/5							22.5	80
100-200-300/5							31.5	100
200-300-600/5							45	100
200-400-600/5							45	100
300-400-600/5							63	130
400-600-800/5							63	130
500-800-1000/5							80	160
600-800-1000/5							80	160
1000-1250-1600/5							100	160
1000-1500-2000/5							100	160

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

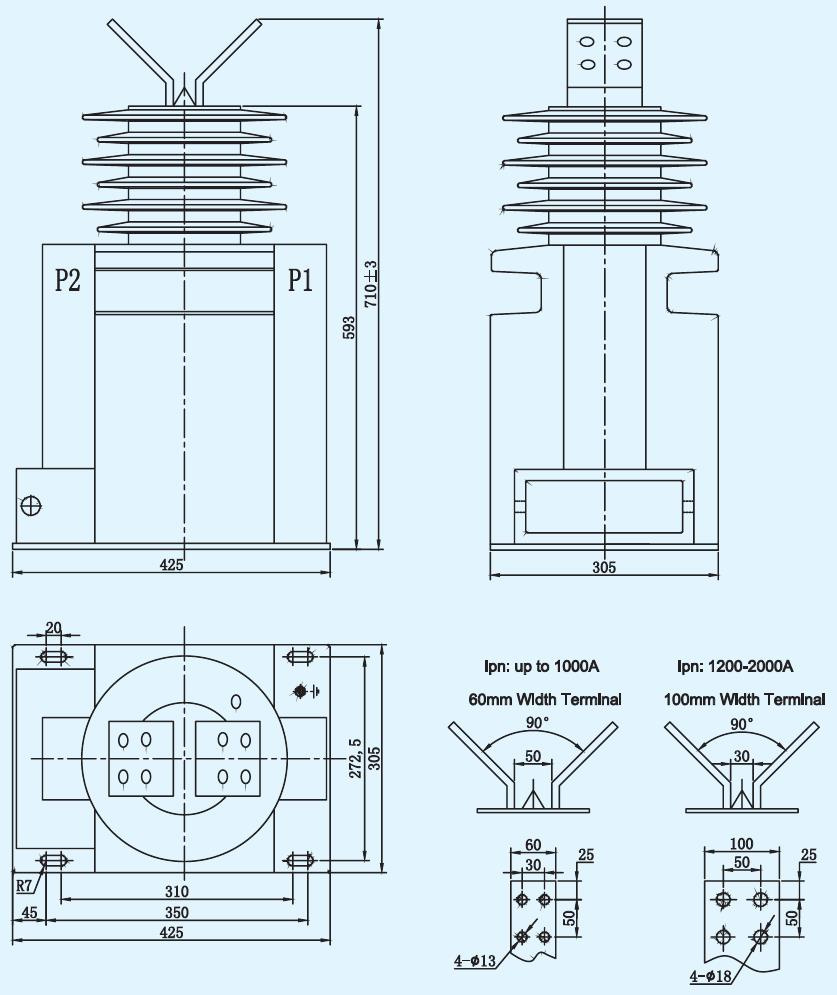

Outline drawing
