Lzzw1-35q Hight Accuracy Industrial Post Type Current Transformer

Prod Model:	LZZW1-35Q
Lzzw1-35q:	Hight Accuracy Current Transformer
Rated Primary Current (a):	10-1500
Ith/Ls (Ka R.M.S.):	2-140
Idyn (Ka Peak):	5-200
Accuracy Class:	.2(S)/0.2(S)
Rated Secondary Output(Va):	10-50
Surface Creepage Distance (mm):	1300
Wt (Kg):	72
Color:	Red
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

COMPANY PROFILE
Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, meter test equipment, reference standard meter, phantom load power source, electrical measurement instrument, relay test set, transformer test, and power analyzer, intelligent digital meter, transducer and current transformer models etc.
GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.
We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

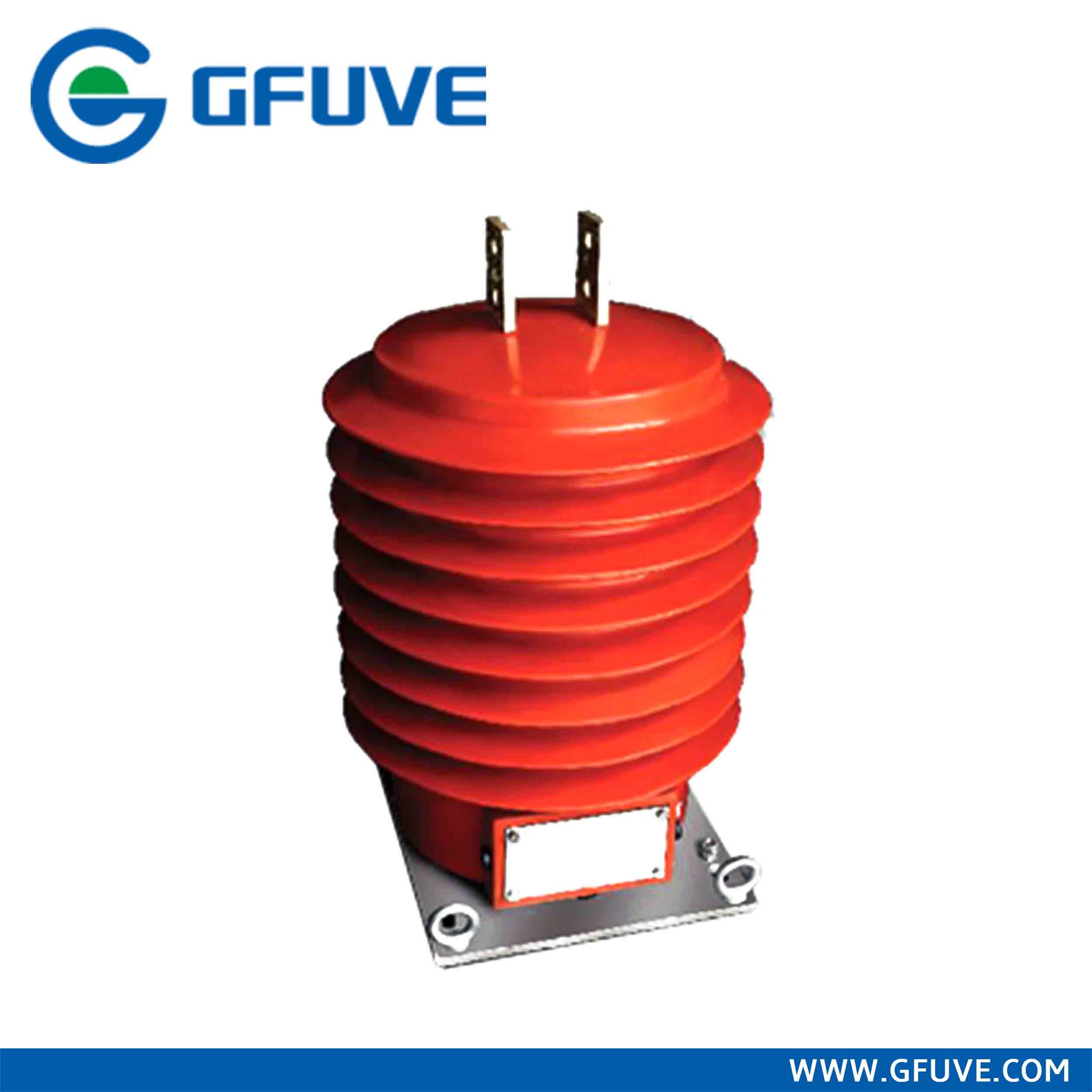

LZZW1-35Q Hight Accuracy Industrial Post Type Current Transformer
The 33KV medium voltage current instrument transformers LZZW1-35Q are fully enclosed and cast in epoxy resin. Transformer is equipped with one core and coil assembly rated for measurement and protection. The current transformers are designed for electric power systems of 50Hz/60Hz rated frequency and 36kV rated voltage. They are used for outdoor mounting. The performances of the products meet standards IEC60044-1, IEC61869-2 and ANSI/IEEE C57.13. The products are applied to metering electric energy, voltage controlling and relay protection.

Technical data

Rated primary current (A)	Ith/ls (KA r.m.s.)	Idyn (KA peak)	Accuracy class combination	Rated secondary output(VA)	Surface creepage distance (mm)	Wt (KG)
1S/2S	0.2S	0.5S	0.2	0.5	5P10	5P15	5P20
10	2	5	0.2(S)/0.2(S) 0.2(S)/0.5(S) 0.5(S)/0.5(S) 0.2(S)/5P 0.5(S)/5P	10	10	15	30	50	30	20	1300	72
15	2.7	6.75
20,25	4	10
30	6.3	15.7
40	8.1	20.2
50	10.8	27
75	16.2	40.5
100	21.6	51.5
150	37.8	94.5
200,250
300,400	54	110
500,600	68.4	136
750,800	95.5	190
1000
1200-1500	140	200
