M/FM 4 to 1 Mc4 T Branch 30A Solar Panel Connector (MCH401)

Name: M/FM 4 to 1 Mc4 T Branch 30A Solar Panel Connector (MCH401)
Brand: all-electronics-online.com
SKU: 719170392
Availability: InStock
Rating: 4.8 (45 reviews)

Price:	US $ 7.38/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MCH401
Application:	Solar System
Gender:	Male and Female

Product Description

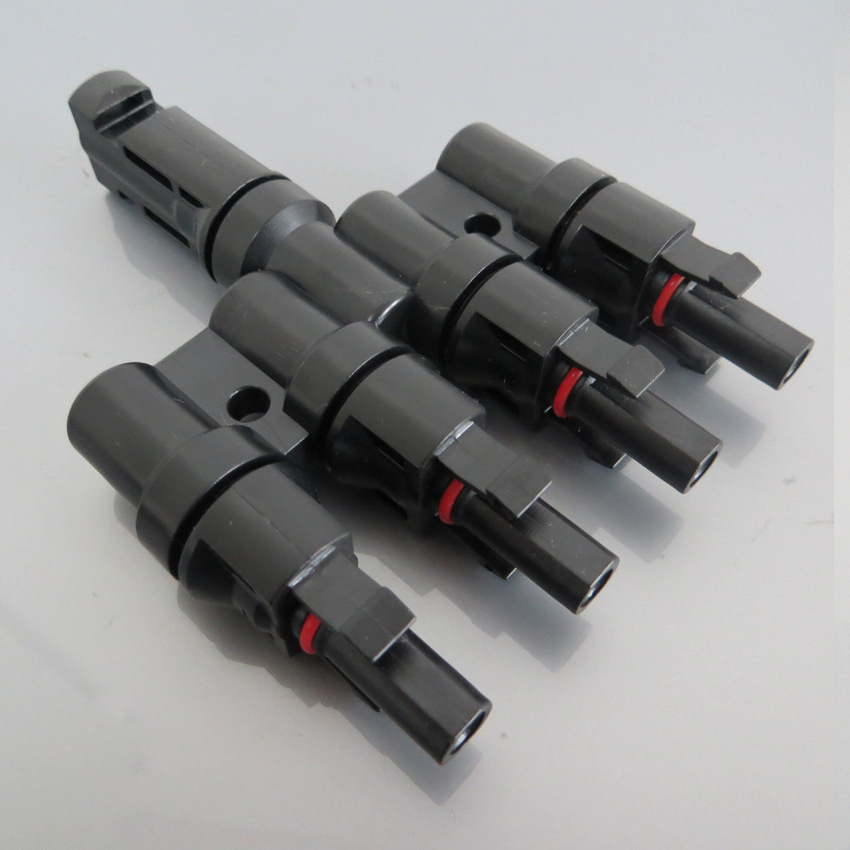

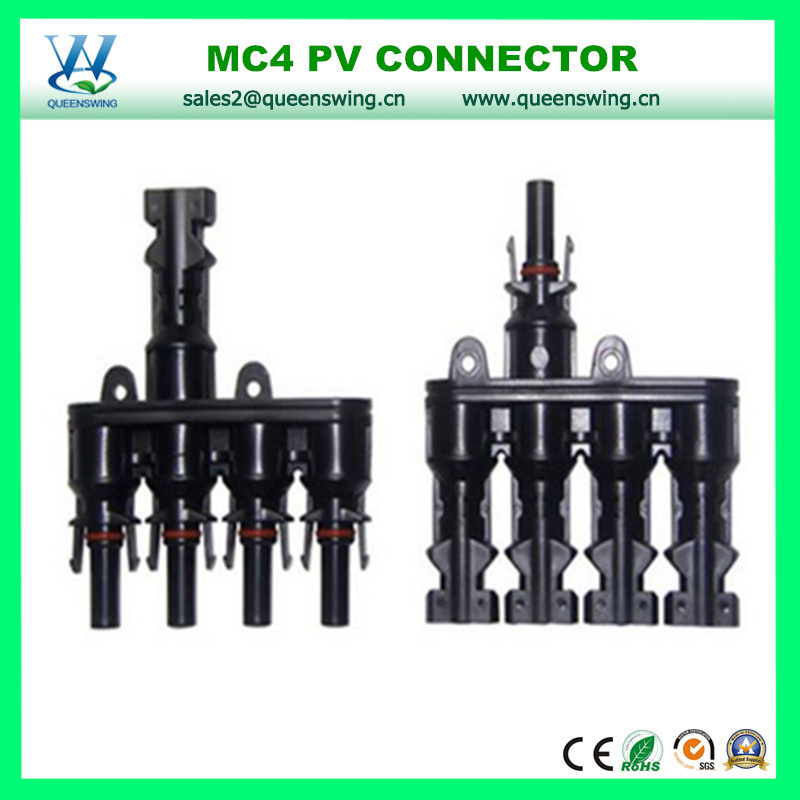

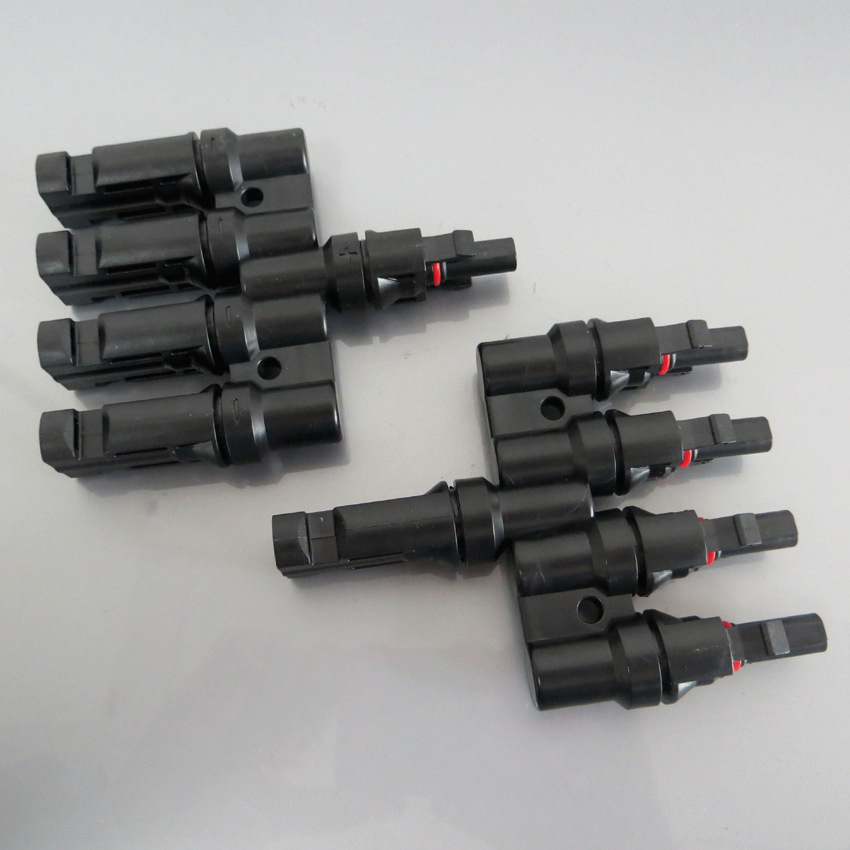

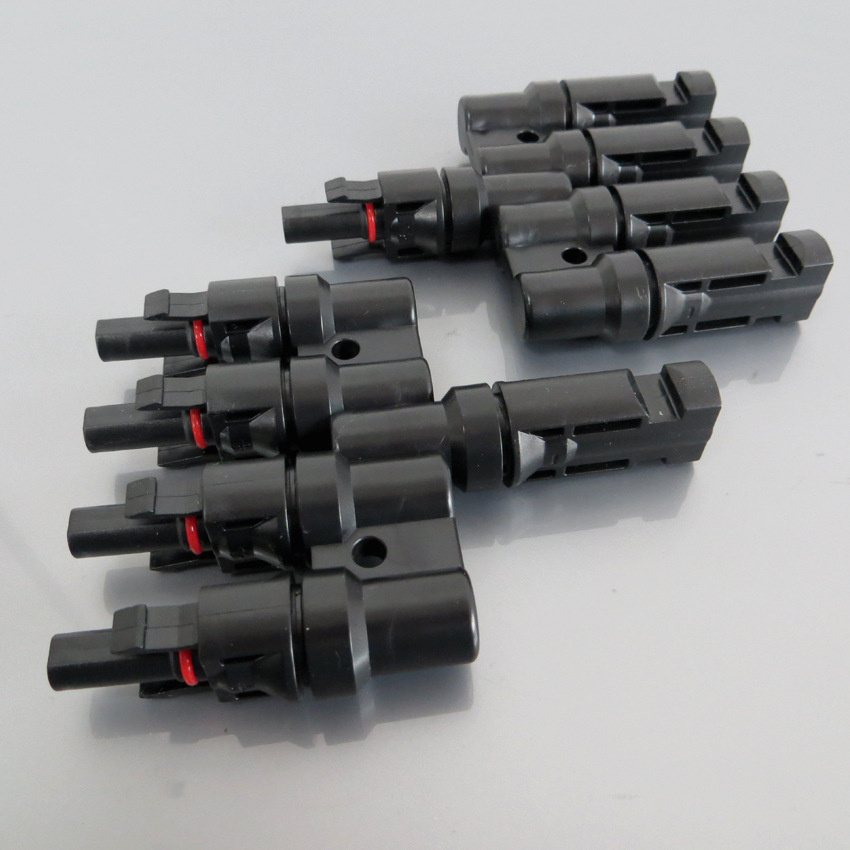

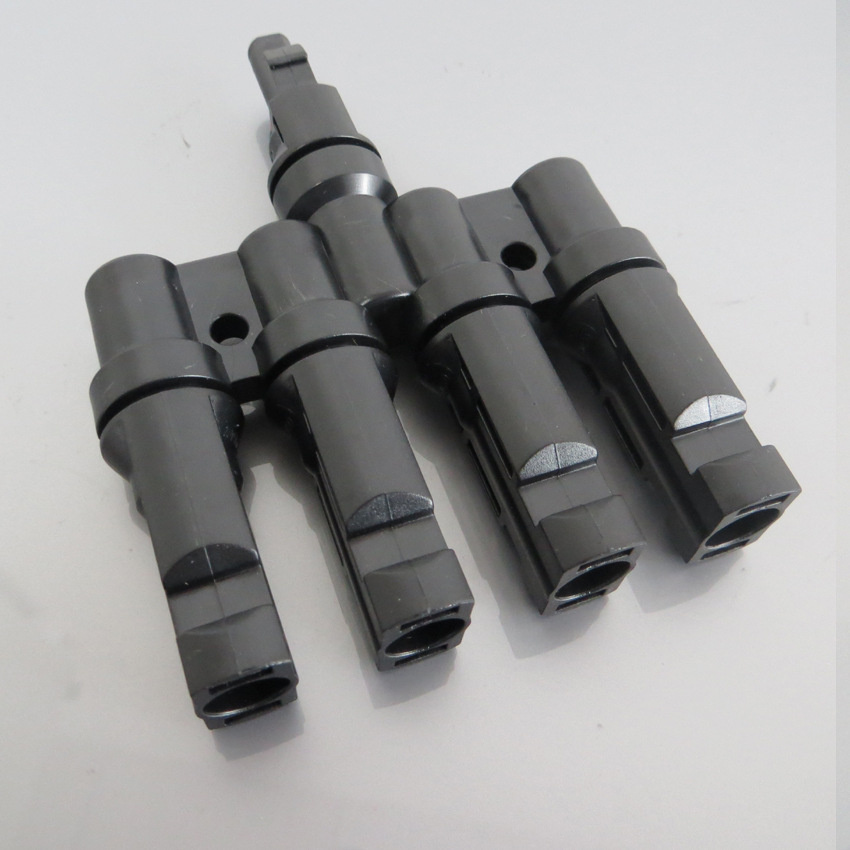

M/FM 4 to 1 MC4 T Branch 30A Solar Panel Connector (MCH401)

Description:
These are MC4 Style Branch Connectors which are approved by CE, TUV. They are used to connect multiple solar panels or groups of solar panels together in a solar field, and typically used in parallel applications.

Feature:
mc4 solar connector

1.5 to 1 branch adaptor
2.good price and fast delivery
3.best service4.tuv approved
4.solar branch connector
5.low power loss
6.solar connector for solar power system
7.all the connection made by double fixed connection
8.with the capacity of anti-aging and resistance to ultraviolet radiation on the out cover with convenient installation, strong commonality
9.to meet the using requirement under bad outdoor condition

Package includes:
1 Pair of (1 to 5) MC4 Solar Panel cable Connectors(Male/Female)

Specification

Product No.	MCH401
Rated Voltage	TUV 1000V DC / UL 600V DC
Rating Current	20A~ 30A
Suitable cable cross sections	2.5mm2~ 6.0mm2 / 14AWG~10AWG
Pin dimension	4.0mm
Proof voltage	DC 8KV(1Min)
Pollution degree	2
Protection class	Class II
Contact Material	Copper, tin-plated
Contact Resistance	5mW
Connector Material	PPO
Degree of Protection IP	IP67(IEC 60529)
Withdrawal Force	≥50N
Insertion Force	≤50N
Temperature Range	-40oc~ +85oc
Flame Class	UL94V - 0
