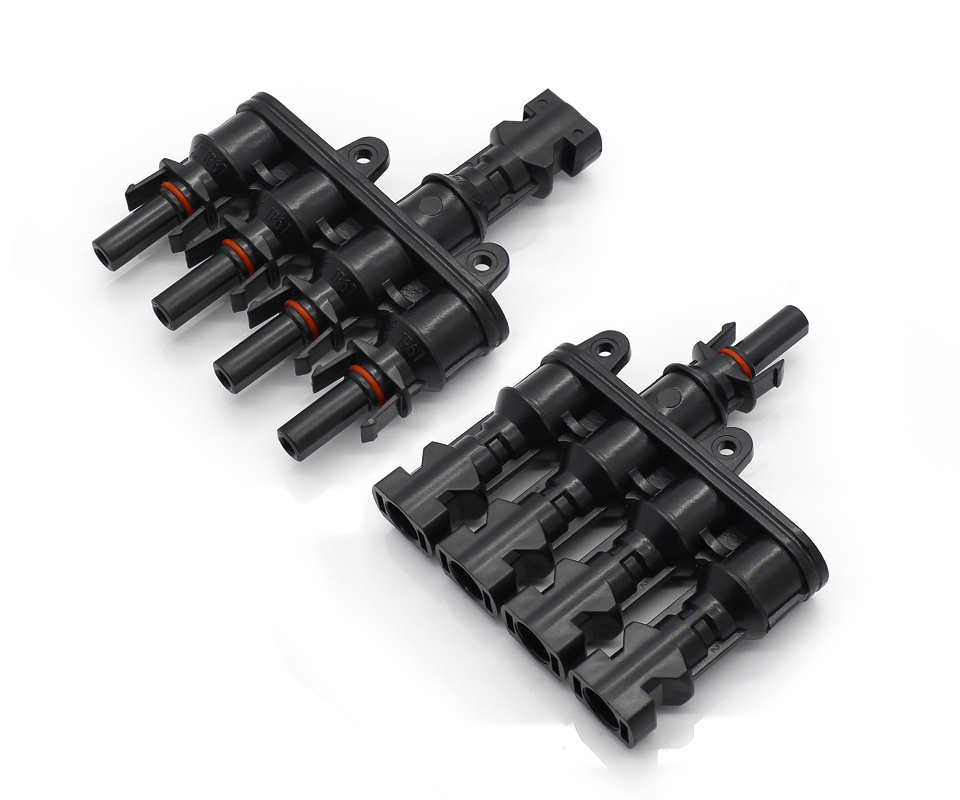

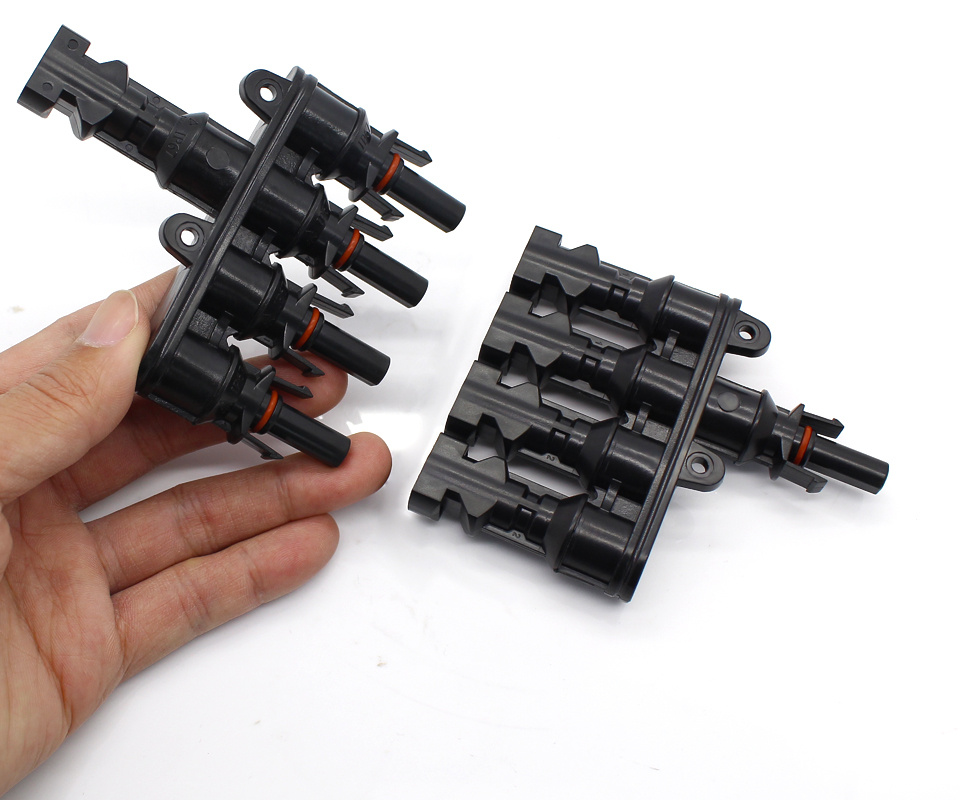

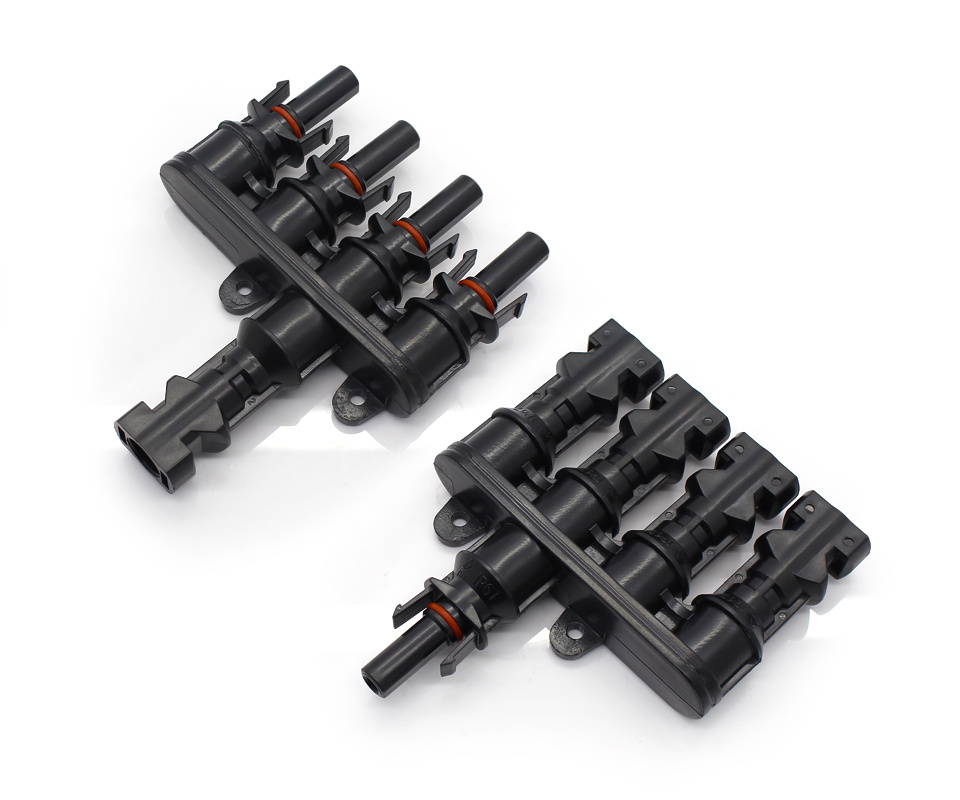

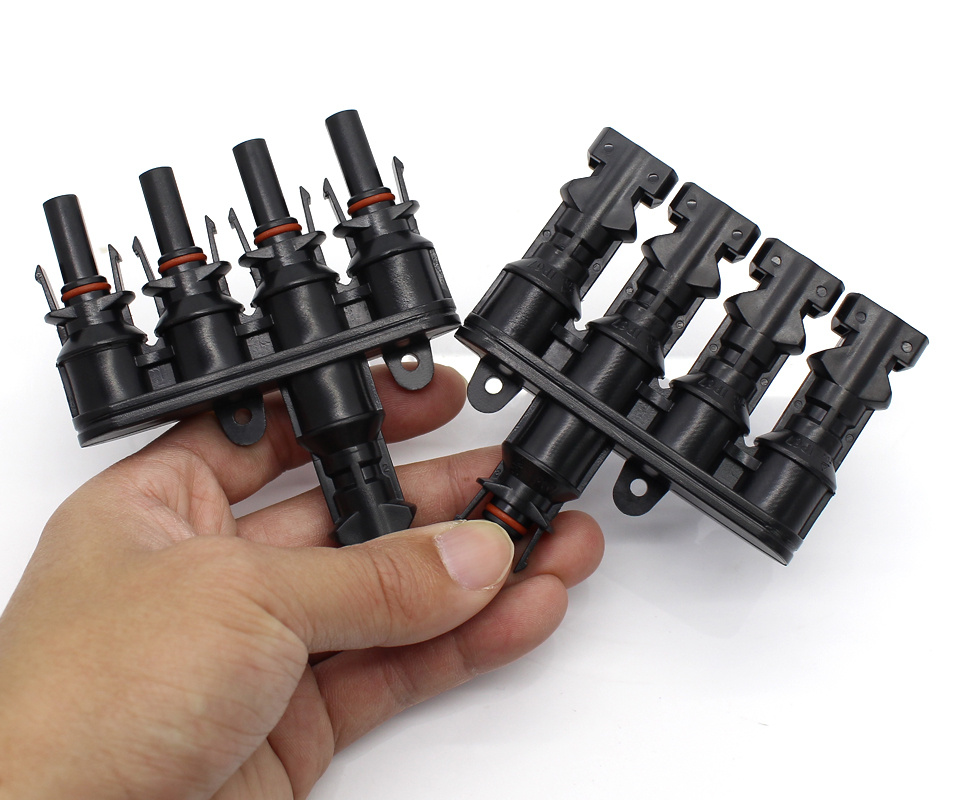

M/FM Solar Panel Connector 4 in 1 T Branch Connector Mc4 Connector for Solar Power Plant

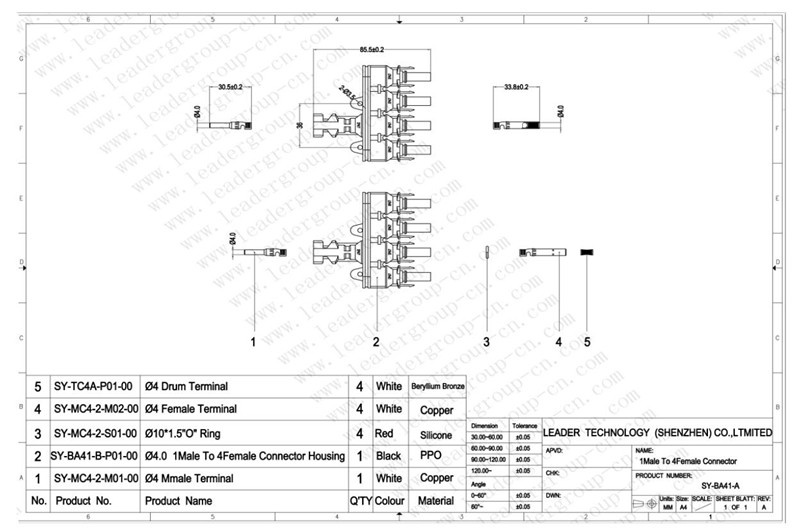

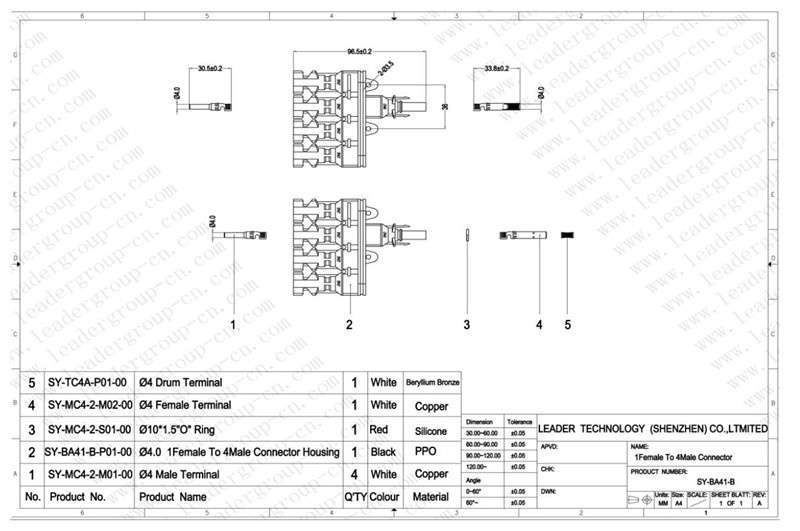

Prod Model:	SY-BA41-A/B
Rated Voltage:	TUV 1000V DC/UL 600 VDC
Rating Current:	20A~30A
Suitable Cable Cross Sectious:	2.5mm~6.0mm/14AWG~10AWG
Pollution Degree:	2
Proof Voltage:	TUV6000V AC(1min)/UL2200V DC(1min)
Protection Class:	Class 2
Degree Of Protection IP:	IP67 (IEC 60529)
Connector Material:	PPO
Contact Material:	Copper, Tin Plated
Be Customized:	Yes
Application:	Conduct Electricity
Type:	Solar Panel
Material:	OPP
Certification:	TUV
Brand:	Leader

Product Description

M/FM Solar Panel Connector 4 in 1 T Branch Connector MC4 Connector for Solar Power Plant

Product description


Rated Voltage	TUV 1000v DC/UL 600VDC
Rating Current	20A~30A
Suitable cable cross sections	2.5mm²~6.0mm²/14AWG~10AWG
Pin dimension	φ4.0mm
Proof voltage	TUV 6000V AC(1Min)/UL 2200V DC (1Min)
Pollution degree	2
Protection class	Class II
Contact Material	Copper ,Tin Plated
Contact Resistance	<=5mΩ
Connector Material	PP

Degree of Protection IP	IP67(IEC 60529)
Withdrawal Froce	.>=50N
Inestion Force	<=50N
Tempersture Range	-40 ºC~+85ºC
Flame Class	UL94V-0
