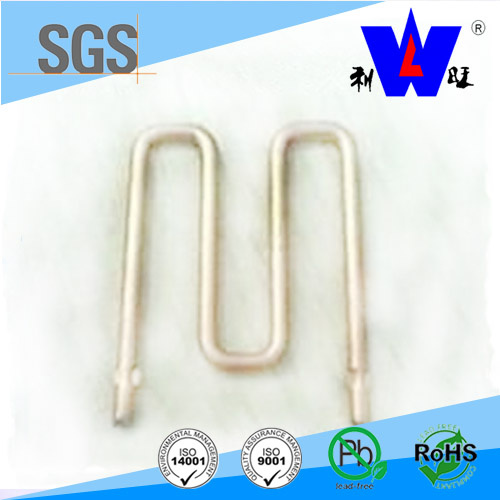

M Type Flat Wire Milli Ohm Resistor

Name: M Type Flat Wire Milli Ohm Resistor
Brand: all-electronics-online.com
SKU: 761724835
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	milli-ohm resistor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Rated Power:	2-4W
Resistance Range:	10-60mohm
Product Name:	M Type Flat Wire Milli Ohm Resistor
Resistance:	Fixed Resistor
Function For Resistance:	Protective Resistor
Installation:	DIP Resistor
Material:	Wire-wound Resistor
Package Type:	Throught Hole
Type:	Fuse Resistor
Brand:	Liwang

Product Description

Product description of M Type Flat Wire Milli Ohm Resistor
Specifications
1.Milli-OHM Resistor
2.have low resistance
3. high power .
4.ISO9001
Milli-OHM Resistor have various types.
Milli-ohm resistorc

Electrical data

Rated power(W)	Resistance range(mΩ)
2	20-50
3	20-50
4	10-60

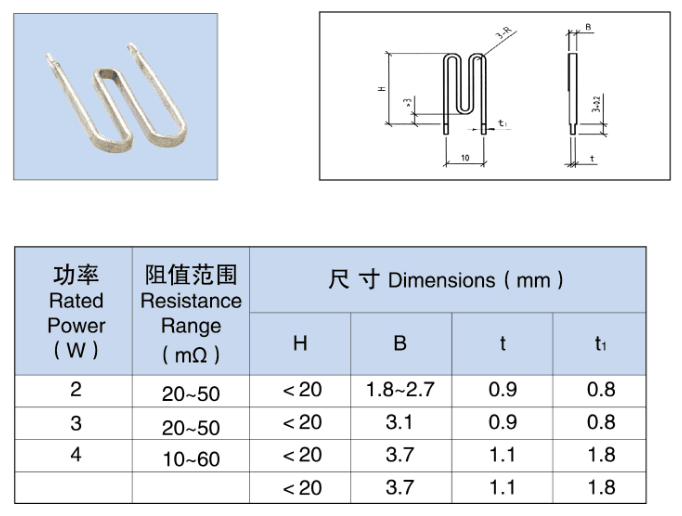

Physical data

The resistors have many differrent types.
Name	Features
M type	To increase the resistance, some resistance can be made of folded handle, a M-type or other shape, and will not produce too much inductance. In order to satisfy the customers ,this type of resistance presser foot treatment, so the resistor are easier to position in the circuit board .
Thin wire

Performance data

Conditions	The largest percentage change in resistance ΔR%
Work at 25 for 1000 hours at full load	1%
place in 100 hours in wet conditions	1%
At -40 ~ +150 temperature cycle 1000	1%

Features
Clamp technique, easy to fix in the circuit board before weld
Stand high temperature
No emotional design, inductance less than 10 nahan
Good material weldability, easy to solder. Some products may be tin-plated pin
easy solderable

Electrical feature
TCR X 10-8<±50
EMF VS Cu(0-100)uV≤45

Applications
Current sensing for not high precision
Feedback current
Low inductance current
Big surge and pulse current

Advantage:
1. Competitive price
2. High stability and high quality
3. Prompt shipment
4.professional & experienced management team

Selling point
1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand

All products of the size, electronical performance can be designed. If you have any questions or requirements, please contact us freely in any time.

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
