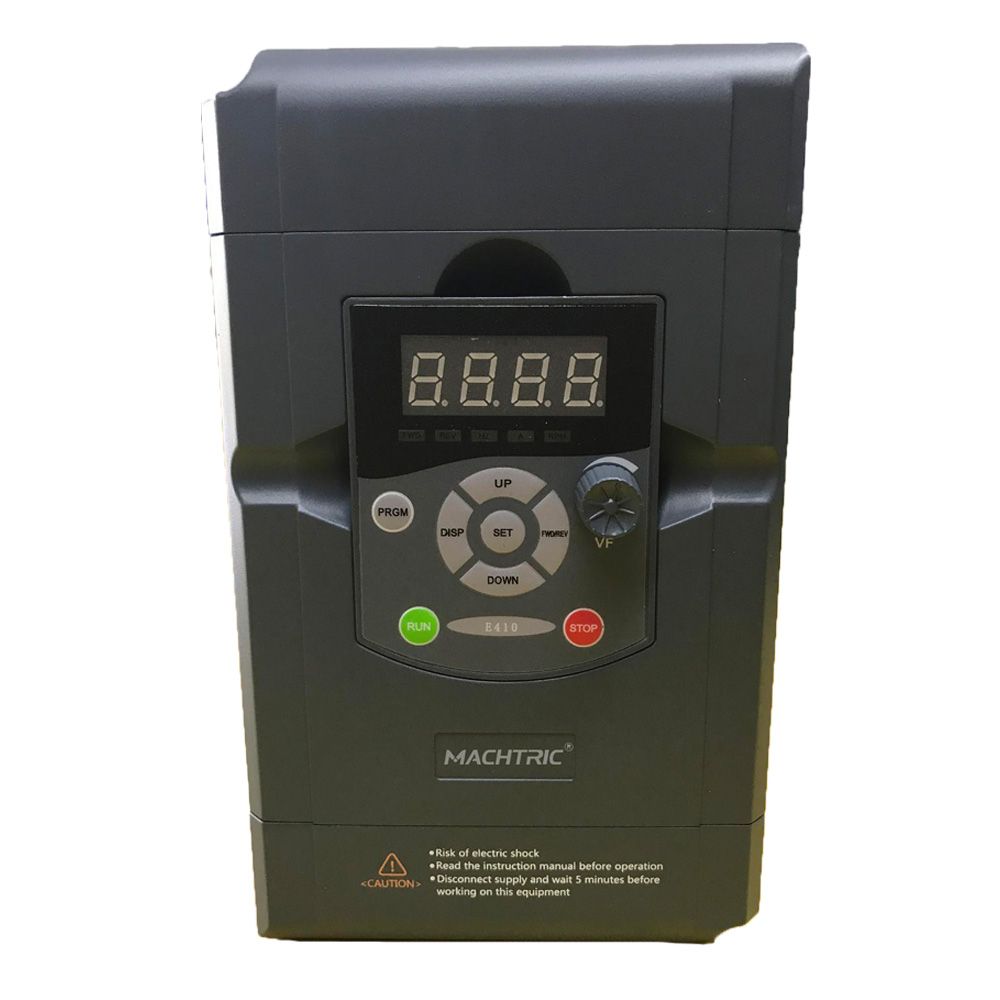

M100 Small Size AC Electric Motor Speed Control Frequency Converter
| Price: |
US $ 115/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
M100 |
| Item Name: |
AC Electric Motor Speed Control Frequency Converte |
| Vibration: |
Below 0.5g |
| Operation Temperature: |
-10~40 Degree |
| V/F Curve: |
Set V/F Curve at Will |
| Humidity: |
0-95% Relative Humidity (Without Dew) |
| Keyboard Setting Method: |
Press Directly to Set |
| Communication Control: |
RS485 |
| Overload Protection: |
Electronic Relay Protection Motor Drive |
| Torque Control: |
Torque Increase Is Settable by Max. 10.0%. |
| Other Functions: |
AVR (Auto Voltage Regulation), Deceleration Stop O |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description
M100 Small Size AC Electric Motor Speed Control Frequency Converter For Conveyor Belt

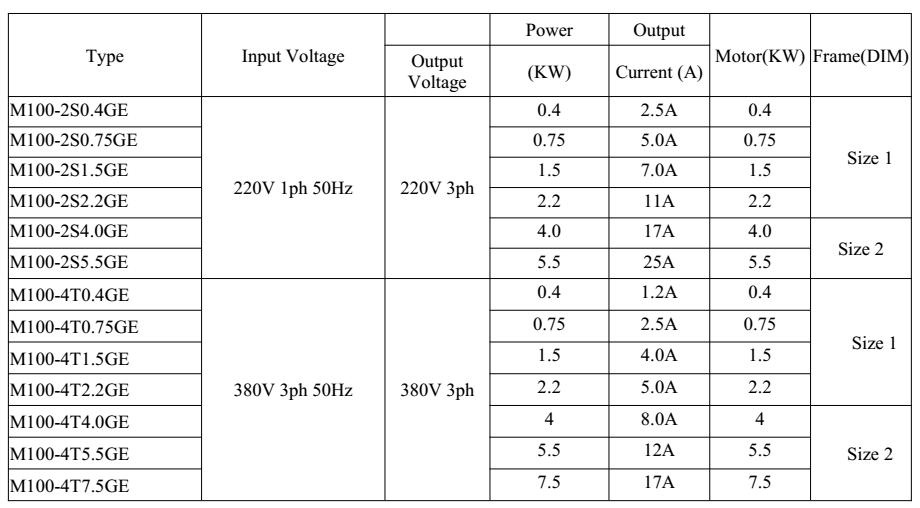

1. Specifications| Type | Input Voltage | | Power | Output | Motor(KW) | Frame(DIM) |
| Output Voltage | (KW) | Current (A) |
| M100-2S0.4GE | 220V 1ph 50Hz | 220V 3ph | 0.4 | 2.5A | 0.4 | Size 1 |
| M100-2S0.75GE | 0.75 | 5.0A | 0.75 |
| M100-2S1.5GE | 1.5 | 7.0A | 1.5 |
| M100-2S2.2GE | 2.2 | 11A | 2.2 |
| M100-2S4.0GE | 4.0 | 17A | 4.0 | Size 2 |
| M100-2S5.5GE | 5.5 | 25A | 5.5 |
| M100-4T0.4GE | 380V 3ph 50Hz | 380V 3ph | 0.4 | 1.2A | 0.4 | Size 1 |
| M100-4T0.75GE | 0.75 | 2.5A | 0.75 |
| M100-4T1.5GE | 1.5 | 4.0A | 1.5 |
| M100-4T2.2GE | 2.2 | 5.0A | 2.2 |
| M100-4T4.0GE | 4 | 8.0A | 4 | Size 2 |
| M100-4T5.5GE | 5.5 | 12A | 5.5 |
| M100-4T7.5GE | 7.5 | 17A | 7.5 |
2.Brake Unit and Brake Resistor| Inverter | Brake unit
| Brake resistor |
| Voltage | Capacity
(KW) | Mode | Dosage | Mode | Standard | Dosage |
One Phase
220V | 0.4 | Option | 1 | preset | 100W/150Ω | 1 |
| 0.75 | Option | 1 | preset | 100W/150Ω | 1 |
| 1.5 | Option | 1 | preset | 400W/100Ω | 1 |
| 2.2 | Option | 1 | preset | 600W/100Ω | 1 |
| 4 | With/in | 1 | preset | 500W/40Ω | 1 |
| 5.5 | With/in | 1 | preset | 500W/30Ω | 1 |
Three
Phase
380V | 0.4 | Option | 1 | preset | 100W/750Ω | 1 |
| 0.75 | Option | 1 | preset | 100W/750Ω | 1 |
| 1.5 | Option | 1 | preset | 260W/400Ω | 1 |
| 2.2 | Option | 1 | preset | 260W/250Ω | 1 |
| 4 | With/in | 1 | preset | 500W/150Ω | 1 |
| 5.5 | With/in | 1 | preset | 500W/100Ω | 1 |
| 7.5 | With/in | 1 | preset | 780W/75Ω | 1 |
3 Indicator LampsDescription of M100 Series Indicator Lamp Status
| Indicator lamp | Status | Description |
| FOR | on | The motor is in forward rotation. |
| REV | on | The motor is in reverse rotation. |
| HZ | on | Displaying set frequency or output |
| A | on | Displaying output current. |
4.Label Information

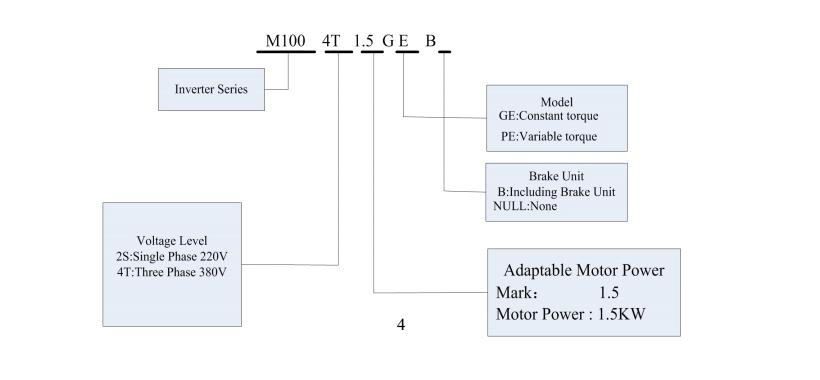

5.Type Difination:
6.Product Specification:
7.Contact Us:
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
