M12 3pins a Code Male Straight Waterproof Connector with Plastic Screws
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MC03C1LSG3AP34 |
| Standard: |
IEC 61076-2-101 |
| Sealing: |
O-Ring |
| Orientation: |
Straight |
Product Description

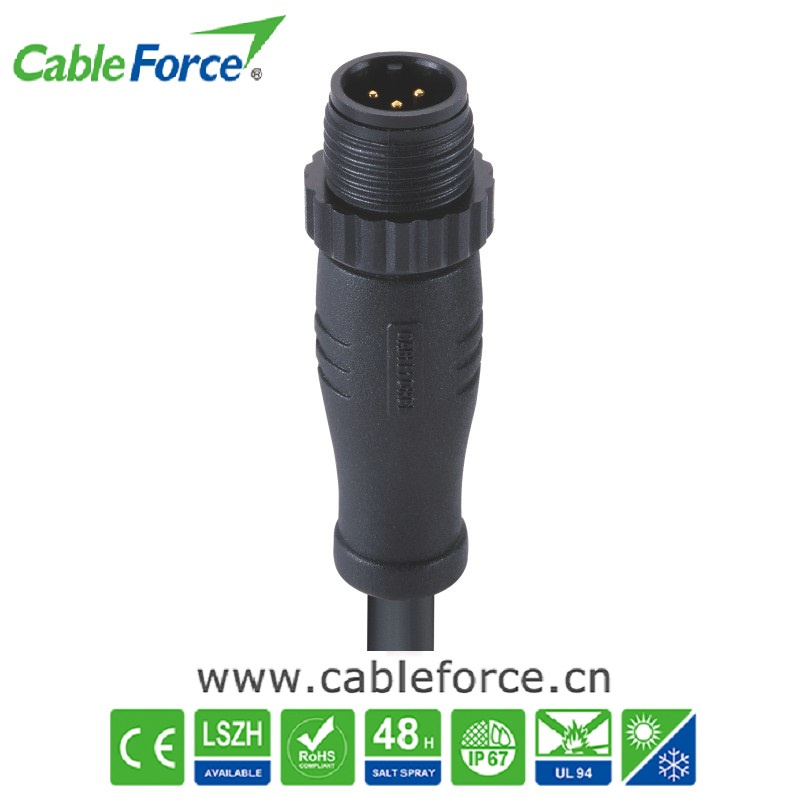

M12 3pins a Code Male Straight Waterproof Connector with Plastic Screws
1.Product descriptionsM12 Pre-molded (PUR/PVC) cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, contacts configuration covers pins of 3-, 4-, 5-, 8-, 12 poles, 360°EMC shielding is available for option. Compliant with IEC 61076-2-101 and mainly designed for signal transmission.
(1) PUR and PVC cable for option
(2) Degree of protection IP 67
(3) Anti-vibration locking screw design
(4) M12 connector according to IEC 61076-2-1012.Material dataContacts plating:Gold plated, thickness 3μ"
Coupling nut/screw:Plastic screw & housingConnector contacts:Brass with gold plated | Standard | IEC 61076-2-101 | IP rating | IP67 |
| | | |
| | Wire termination | soldering |
| | Rated current | 4 A |
| | Rated voltage | 250 V |
3.Applications(1) Sensor, actuator, encoder, servo motors
(2) Factory automation and process control
(3) Packaging, labeling and logistic devices
(4) Industrial instrumentation
(5) Commercial electronics PCBA
5.Quality statement(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated, CNC parts.
(2) Male contacts material: Brass C3604, 3μ" gold plated on nickel base, machined solid pin.
(3) Female contacts material: Phosphor bronze C5441 with 3μ" gold plated on nickel base, machined solid pin.
(4) Temperature Range: Dynamic -25 ~ 80ºC, Static: -40 ~ 80ºC/105ºC.
(5) Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
(6) RoHS compliant.

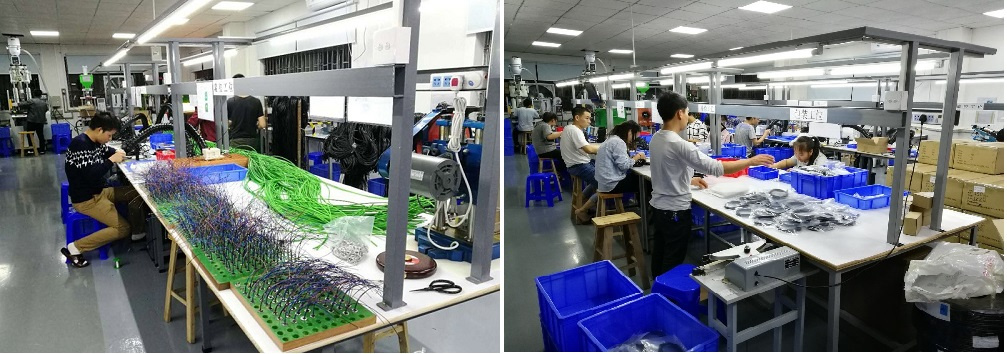

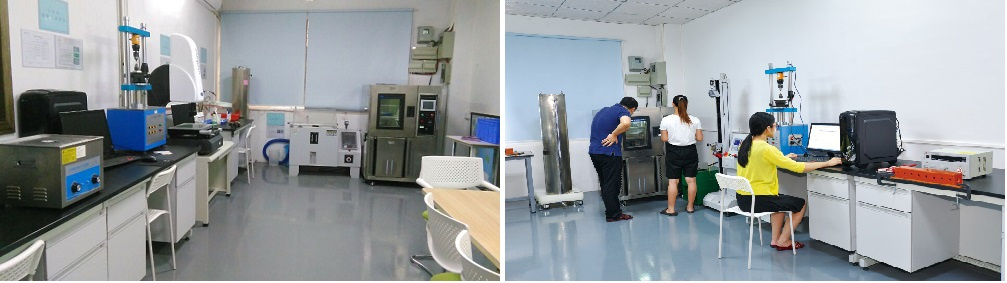

6.Company profileCableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Product packaging (1) Our standard packing: Individual part with transparent PE bag with label;(2) Carton size: 44.5*36.5*23.5(mm) (3) OEM package available(4) Delivery : 1~ 3 weeks .8.FAQ(1)
Q:Are you a manufacturer or trading company?
A:We are a connector factory.(2)
Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.(5) Q:Sample lead time?
A:2-4 workdays(6) Q: Volume order lead time?
A:3-10 workdays(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

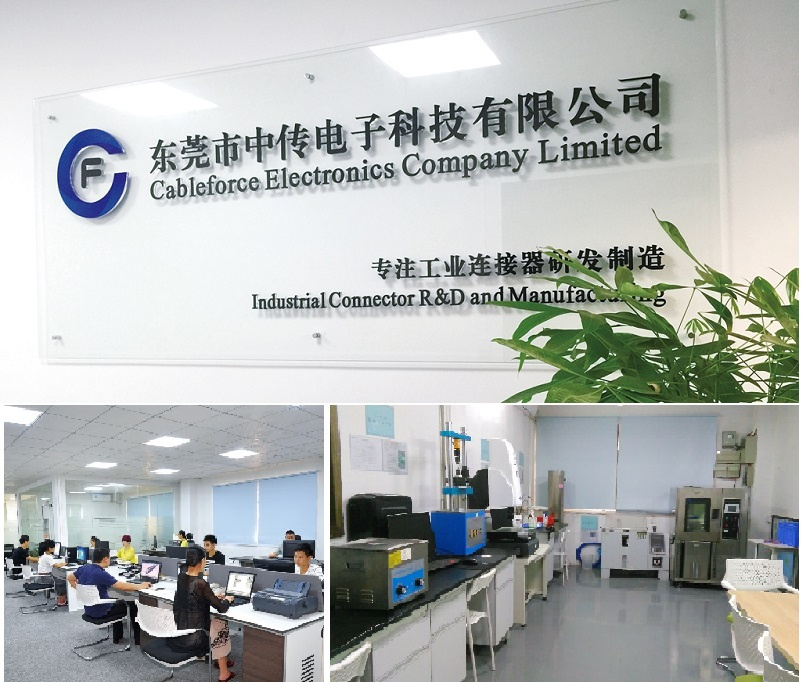

Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
