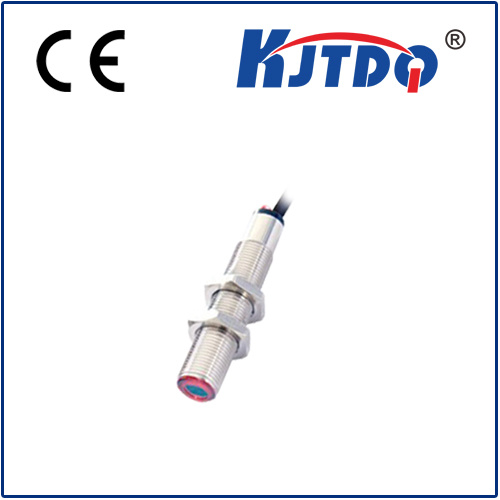

M12 Diffuse PNP NPN Photoelectric Sensor Switch

Name: M12 Diffuse PNP NPN Photoelectric Sensor Switch
Brand: all-electronics-online.com
SKU: 781719535
Availability: InStock
Rating: 4.9 (134 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KJT-FJ12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage Type:	10-36VDC Voltage
Protection Degree:	IP 67
Response Time:	<8.2ms
Sensing Distance Range:	Adjustable
Type:	Photoelectric Sensor
Feature:	Standard

Product Description

KJT-FJ12 Series Photoelectric sensor switch

Detailed Product Description

Features:

----Easy to set up and adjust distance.

----Short-circuit protection, reverse polarity protection.

----Cable and connector connection optional.

----Stainless steel housing, strong and durable. Plastic housing, eonomical and easy to install.

----Light on/dark on conversion function.

----Built-in power supply, AC, DC or AC/DC universal Power supply.

Variety:

----Diffuse reflection type

----Retro reflection type

----Through beam type

Housing size [mm]	M12*60
Thread size [mm]	M12145
Mode	Diffuse reflection
SN [mm]	50mm, 100mm
Light source	Infrared LED (880nm)

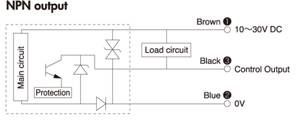

Output	NPN/PNP NO/NC
Power supply	10-36VDC
Protection degree	IP67
Response time	Max,8.2ms
Hysteresis	3-20%
Repeat accuracy	≤5%
Load current	≤200mA
Residual voltage	≤2.5V
Consumption current	≤25mA
Protection circuit	Surge, reverse polarity and short-circuit
Indicator	Yellow LED
Ambient temp.[ºC]	-15~55ºC
Ambient RH	35-95%
Housing material	Nickel-copper Alloy
Connection	PVC Cable 2m
