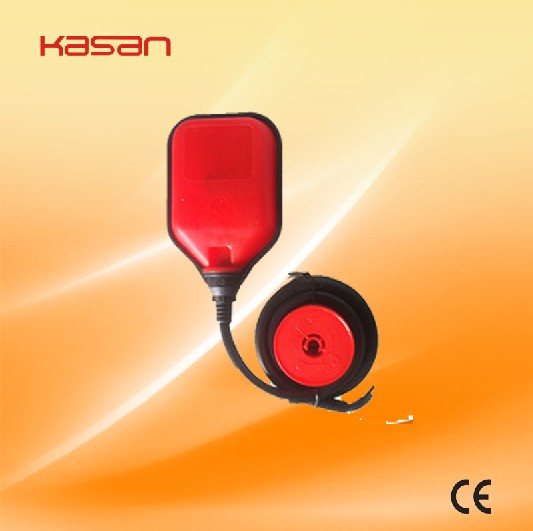

M15-1 Float Switch, Level Sensor Liquid Float Switch, Cable Float Type Level Switch, Water Level Controller Float Switch

Prod Model:	M15-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue, Red, Black
Lentgh:	2m 3m 5m

Product Description

M15-1 float switch, level sensor liquid float switch, cable float type level switch, water level controller float switch

1. Application
----------------------------------------------------------------------------------------
A float switch is a great way to automatically turn any appliance such as a pump, on or off. A ball inside the tethered float switch simply changes position from top to bottom with the rising or falling motion it changes the floats angle, thus breaking or establishing the electrical circuit to turn the pump on or off. Our Level Float Switch have CE certificate. Level Float Switch used to control the water level. Our level float switch used widely on the pump and water tank. We use color packing for our float switch. We check the float switch packing and quality strictly before delivery.
2. SPECIFICATIONS
---------------------------------------------------------------------------------------------------

Rated Voltage, Frequency: 250V AC 50Hz/60Hz
Rated current: 10 (4)A/16(4)A/16(8)A
Max. Working temperature: 80degree
Protection Grade: IP68
Mechanical endurance more than 100, 000 times
Electrical endurance more than 50, 000times
Length: 2m 3m 5m 10m 20m as customs required



1) Microswitch: 10(8)A 250v-10(4)A380V
2) Switch currency: ≥ 5000 switch workings tested by VDE specification
3) Protective connection: T70U
4) Protection: Waterpoof
5) Max temperature: 80
6) Working pressure: Max. 1bar
7) Circuitbreaking capacity: Directly KW with 250V

Float Regulator	Liquid Controller /float switch
Rated voltage	250V(380V)
Rated Frequency	50Hz/60Hz
Rated current	10A(3A)
Working temperature	0 degee to 80 degree
Mechanical endurance	≥100.000 times
Electric endurance	≥ 50.000 times
Protection grade	IP68CS
Standard cable length	2m 3m 5m 10m 20m as customs required
Switch currency	+++ ≥50 000switch workings tested by VDE specialisation
Protective connection	T 70U
Protection	waterproof
Working pressure	max.1bar
Circuit breaking capacity	Directly KW with 250V
Float	Polypropylene
Cable	polypropylene Jacket
Counter Weight	Polypropylene Sealed Housing
Cable Material	HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2)
