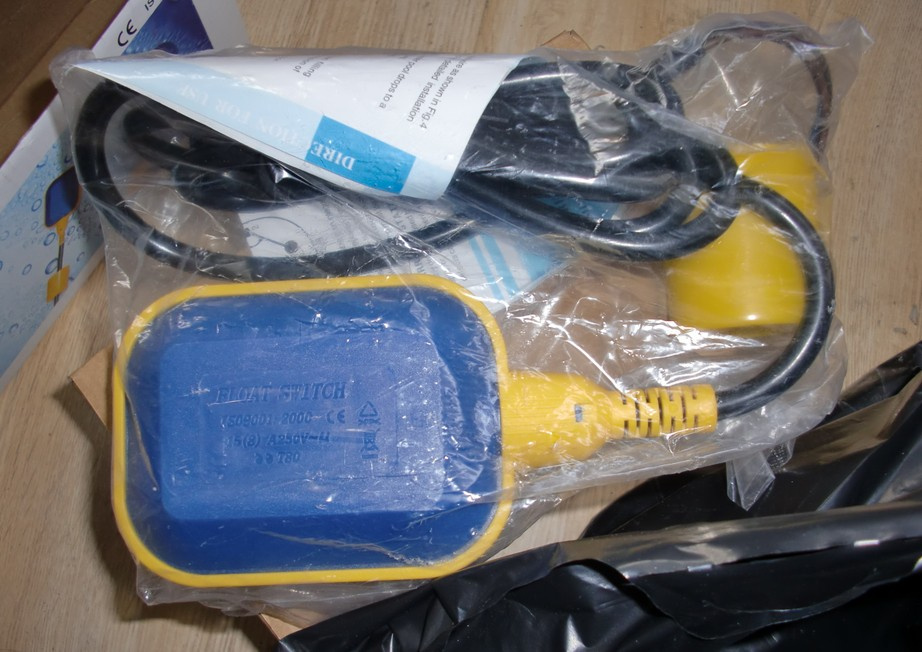

M15-2 Water Tank Float Switch/ Fluid Level Controller

Name: M15-2 Water Tank Float Switch/ Fluid Level Controller
Brand: all-electronics-online.com
SKU: 693686372
Availability: InStock
Rating: 4.6 (129 reviews)

Price:	US $ 1.5-3/Piece
Trade Terms:	FOB,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	M15-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue, Red, Black

Product Description

Flaot Switch's operation voltage is 220vac, and current can be up to 15A. Applies to branch water, sewage, aid-base solution and oil. Application cost is very low.

Features:
Microswitch: 10(8)A 250V~10(4)A 380V
Switch currency: +++ ≥ 50 000switch workings tested by VDE specialisation
Protective connection: T 70U
Protection: Waterproof
Max. Temperature: 70° C
Working pressure: Max. 1bar
Circuitbreaking capacity: Directly KW with 250V
Standard Cable Length: 5m ~ 100mm or Accorrding to customer's request
Float: Polypropylene
Cable: Polypropylene Jacket
Counter Weight: Polypropylene Sealed Housing
Cable Material: HO7RN- F3x0.75mm2, PVC (3x0.5mm2, 3x0.75mm2, 3x1.0mm2)

Float Regulator	Liquid Controller /float switch
Rated voltage	250V(380V)
Rated Frequency	50Hz/60Hz
Rated current	10A(3A)
Working temperature	0 degee to 80 degree
Mechanical endurance	≥100.000 times
Electric endurance	≥ 50.000 times
Protection grade	IP68CS
Standard cable length	2m 3m 5m 10m 20m as customs required
Switch currency	+++ ≥50 000switch workings tested by VDE specialisation
Protective connection	T 70U
Protection	waterproof
Working pressure	max.1bar
Circuit breaking capacity	Directly KW with 250V
Float	Polypropylene
Cable	polypropylene Jacket
Counter Weight	Polypropylene Sealed Housing
Cable Material	HO7RN- F3x0.75mm2 , PVC (3x0. 5mm2,3x0.75mm2, 3x1.0mm2)
