| Prod Model: |
YW-16-C09PE-02-001 & YW-16-J09SX-03-001 |
| Cable Specification: |
0.15mm-0.2mm2/26-24AWG |
| Diameter Range: |
Od5.5-7mm |
| Rated Current: |
5A |
| Operating Voltage: |
400V |
| Protection Level: |
IP65/IP67 |
| Hardware Metal: |
Zinc Alloy(Pearl Hard Chromium) |
| Sealing: |
Silica Gel |
| Flammability Rating: |
UL94-V0 |
Product Description

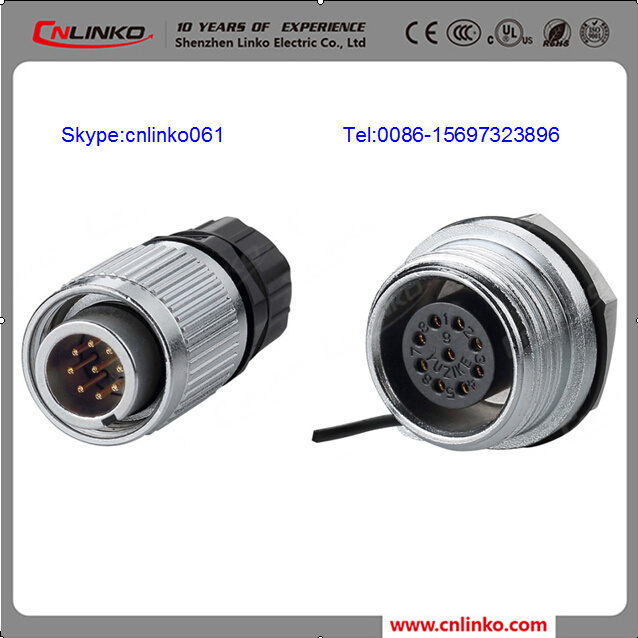

M16 9pin Circular Connector/ IP67 Signal Waterproof Connector
YW waterproof connector,zinc alloy shell,effective safety and signal shielding,using the locking screw,more secure and reliable.
1.All zinc alloy shell,complete with electromagnetic and radio frequency interference protection,while meeting the needs of high-end products to match
2.Outer screw locking device,a solid safety.
3.16MM and 20MM optional mounting dimensions.
4.Quick and easy nut locking system design.
5.Hanging dust cover design avoid matters;high safe performance,easy to operate.
6.3 pins and 9 pinsfor choice.
7.5-10A rms rated current.
8.Slip-resistant outer circle
YW-16-J09PE-02-001,YW-16-C09SX-03-001
| Connecting mode: | screw connect |
| Protection level: | IP65/IP67 |
| Cable specification: | 0.15mm2 ~ 0.2 mm2 /26~24 AWG |
| Diameter range: | Φ5.5mm ~Φ7mm |
| Contact diameter×Qty: | Φ1.0×9 |
| Current rating(A): | 5A |
| Operating voltage(AC.V.rms): | 400V |
| Withstand voltage(AC.V)1min: | 1500V |
| Contact resistance: | <2.5mΩ |
| Insulation resistance: | >500MΩ |
| Durability: | ≥500 mating&unmating cycles |
| Temperature rating: | -40°C~80°C |
| Method of connecting cable: | solder |
| Prevent the combustion level: | UL94-V0 |
| Temperature rise: | 10A per contact at 30°C,
12A per contact at 40°C,
15A per contact at 50°C. |
| Produce type: | Standard metal 3 pin circular connector |
| Material: | |
| Shell&insulated parts: | High performance engineering plastics |
| Hardware metal: | Zinc alloy(pearl hard chromium) |
| Contact pin: | Copper alloy(gold-plated) |
| Spring: | Stainless steel |
| Sealing: | Silica gel |
| | |
| Main characteristics: | |
| - Sealed against dust and fluid (IP65/IP68) |
| - Vibration resistance,impact resistance,stretching resistance |
| - With one hand, can quickly insert or pull out |
| | |
| Application industries: | |
| - Stage equipment | - The smart grid |
| - Medical equipment | - Server |
| - Solar energy equipment | - Ship equipment |
| - Electric power equipment | - Vehicle equipment |
| - Communications equipment | - Heavy machinery |
