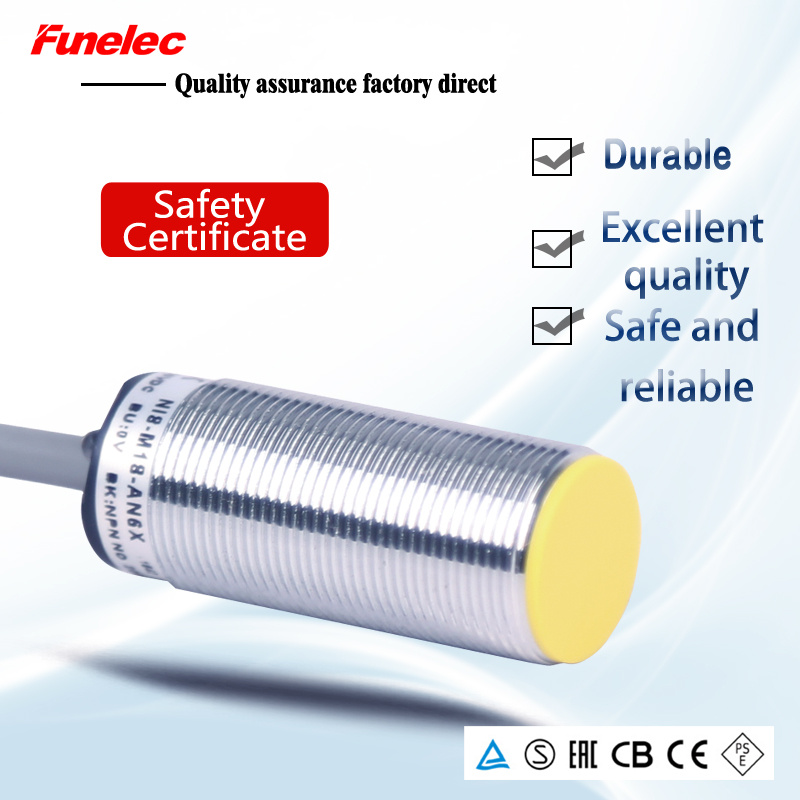

M18 IP67 Waterproof Stainless Ce Normally Close Embedded Proximity Sensor

Name: M18 IP67 Waterproof Stainless Ce Normally Close Embedded Proximity Sensor
Brand: all-electronics-online.com
SKU: 727773512
Availability: InStock
Rating: 4.4 (23 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	FNT-X18
Material:	Stainless Steel
Voltage Type:	DC Voltage
Rotection Degree:	IP 67
Mounting:	Flush / Non-Flush
Standard:	Standard
Certification:	CE
Type:	Inductive Proximity Switch
Principle:	Inductive
Wires:	NPN/PNP 3 Wire, Two Wire
Application:	Position Sensor, Speed Sensor

Product Description

FNT-X18 Series Proximity Sensor/ inductive proximity switch

Detailed Product Description

Features:

1) Multiplicity appearance
2) Compact volume
3) High repeat orientation precision
4) Many output form
5) Strong protection distribution
6) Wide voltage range
7) Dustproof, vibration-proof, waterproof and oil-proof
8) With short-circuit protection and inverted connecting protection
9) Service life up to one million
10) Adopts envelop glue, temperature resist, oil-proof colophony in it

Mounting	Flush / Non-Flush
SN	5mm / 8mm
Power supply	10-36V DC
Housing size	*M1860 M1865*
Thread size	*M18140*
Output	NPN/PNP NO/NC
Temperature drift	≤±10%
Hysteresis	1-20%
Repeat accuracy	≤5%
Load current	≤200mA
Residual voltage	≤2.5V
Consumption current	≤10mA
Protection circuit	surge, overload, short-circuit, reverse polarity
Indicator	Yellow LED
Ambient temp.	-25 ~ 150ºC
Ambient RH	35-95%
Frequency	500Hz
Protection degree	IP67
Housing material	Nickel-copper Alloy
Connection	PVC Cable 2m

Our Services
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively

FAQ
Q: If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.

Q:Your product seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others!
A: Our product are high quality customized.I think compare the quality first and then compare the price is the best way.

Q:Can I get a sample before the order because I really don't how is the quality of your product?
A:Of course!We also think sample order is the best way to build the trust.Please send the enquiry to us and get the sample!

Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.

Pls feel free to contact us, we will be happy to provide you with the best quality products and personalized service!
