| Prod Model: |
LM18-T |
| Brand: |
Winston |
| Antistop: |
Inductive Proximity Sensor Switch |
| Workmanship: |
The Exquisite German Technology |
| Protection Degree: |
IP67 |
| Shell Material: |
Brass Nickel Plating |
| Form: |
Flush |
| Sensing Distance: |
5mm |
| Sensing Object: |
Metal |
| Output Voltage: |
6-36VDC / 90-250VAC |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Proximity Switch |
| Wires: |
NPN / PNP 3 Wires |
| Application: |
Location Detection |
| Size: |
M18*1 |
Product Description

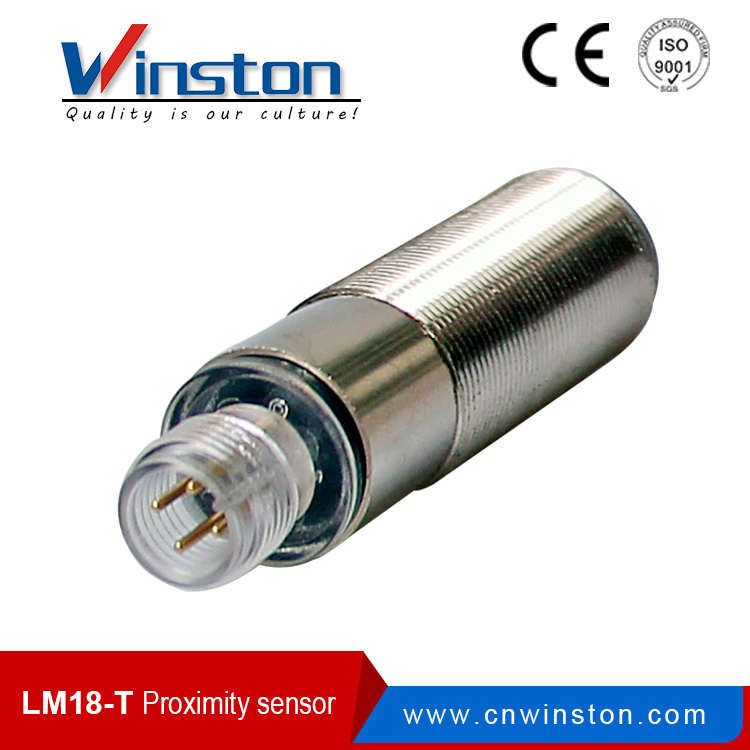

M18 NPN / PNP NO / NC Proximity Sensor With Connector (LM18-T)
Product advantage :
Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Technical Parameters
| LM18-T / LM8-T3 | Detection Distance | 5mm |
| Flush | DC10-30VDC (6-36VDC) | NPN | NO | LM18-3005NAT |
| NC | LM18-3005NBT |
| NO+NC | LM18-3005NCT |
| PNP | NO | LM18-3005PAT |
| NC | LM18-3005PBT |
| NO+NC | LM18-3005PCT |
| Two wire system | NO | LM18-3005LAT |
| NC | LM18-3005LBT |
| AC90-250VAC | SCR Control-lable silicon | NO | LM18-2005AT |
| NC | LM18-2005BT |
| NO+NC | |
| Relay output | |
| Control output | DC | | | |
| SCR/Relay | 300mA |
| Output vol;tage drop DC/AC | DC (NPN PNP) type 3V or less,Two wire 3.9Vor less,
AC 10Vor less DC<3V AC>10V |
| Consumption current | DC (NPN PNP) type 12V 8mA,24V 15mA ,
AC 10mA or less DC<15mA, AC>10mA |
| standard detected object | | 18*18*1 (A3 iron) |
| Repeated precision | | 0.02 |
| DC/AC | 200Hz/10Hz |
| Working environment temperature | -25ºC ~ + 75 ºC |
| Insulation resistance | 50MΩ |
| Shell material | Metal |
| Protection grade | IP67 |
Model explanation:
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;L: Two-line DC output;
AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;
H: High temp resistance; R: Ring type)
