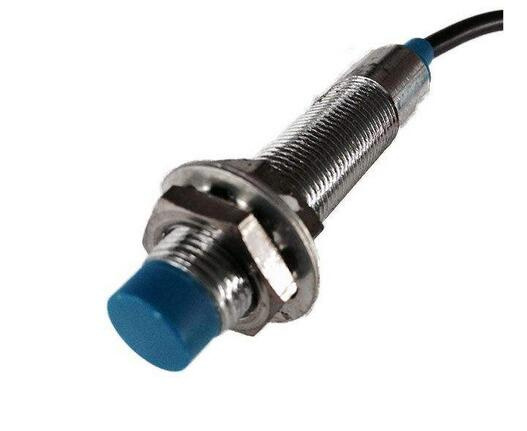

M8 Proximity Sensor Switch/ Metal Sensor Switch 1mm 6-36V NPN

Name: M8 Proximity Sensor Switch/ Metal Sensor Switch 1mm 6-36V NPN
Brand: all-electronics-online.com
SKU: 835140425
Availability: InStock
Rating: 4.3 (129 reviews)

Price:	Negotiable/Piece
Min Order:	20/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LM8-3001NA
Wires:	NPN (',Three-Wires)
Standard:	Standard
Certification:	CE
Type:	Inductive Proximity Sensor
Principle:	Inductive
Application:	Machine
Size:	M8

Product Description

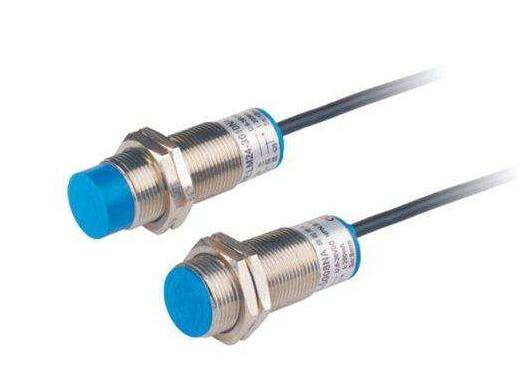

Standard function type inductive sensors
	Features Non contact detection, safe and reliable; ASIC design; Perfect choice for metallic targets detection;
Part number
NPN NO LM8-3001NA	PNP NO LM8-3001PA
NPN NC LM8-3001NB	PNP NC LM8-3001PB
NPN NO+NC LM8-3001NC	PNP NO+NC LM8-3001PC
Technical specifications
Mounting Flush Non-flush	Leakage current [lr] ≤15mA
Rated distance [Sn] 2mm 4mm	Circuit protection Short-circuit, overload and reverse polarity
Assured distance [Sa] 0…1.6mm 0…3.2mm	Output indicator Yellow LED

Dimensions M1263mm M1267 mm	Ambient temperature -25ºC…70ºC
Output NO/NC(dependson part number)	Ambient humidity 35-95%RH
Supply voltage 10…30 VDC	Switching frequency [F] 1500 Hz 1000 Hz
Standard target Fe 12121t Fe 12121t	Voltage withstand 1000V/AC 50/60Hz 60s
Switch-point drifts [%/Sr] ≤±10%	Insulation resistance ≥50MΩ(500VDC)
Hysteresis range [%/Sr] 1…20%	Vibration resistance 10…50Hz (1.5mm)
Repeat accuracy [R] ≤3%	Degree of protection IP67
Load current ≤200mA	Housing material Nickel-copper alloy
Residual voltage ≤2.5V	Connection type 2m PVC cable
Dimensions	Wiring diagram
