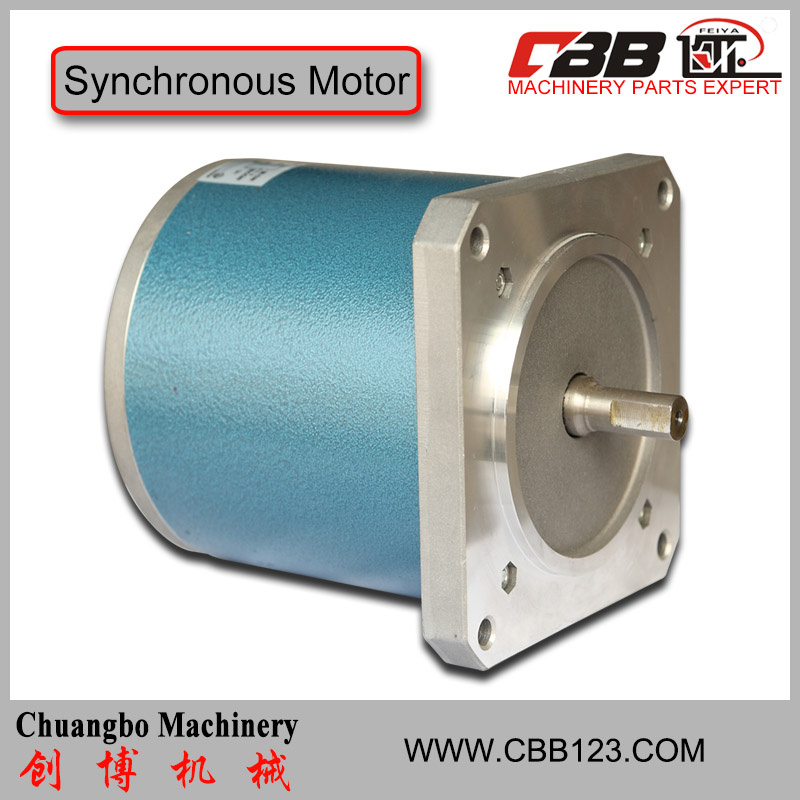

Machine Spare Parts Permanent Magnet Synchronous Motor

Prod Model:	low speed
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	220V
Frequency:	50Hz
Speed:	60/115
Usage:	EPC
Application:	Industrial
Operating Speed:	Low Speed
Operation Mode:	Electric Motor
Magnetic Structure:	Permanent Magnet
Structure:	Rotating Pole Type (',Armature Fixed)
Number Of Poles:	Single-Phase
Ventilation:	Closed
Brand:	Cbb

Product Description

Several models of low speed motor for you.
Synchronous motor can simplified the transmission structure, eliminate the motor institution noise.
Permanent magnet synchronou motor is a new synchornous motor without reducing gear device, it runs at low speed through motor. It can be used to simplify the transmission structure, and reduce the noise caused bygear reduction structure. This is designed as closed-end structure. The characteristics are following: High reliability, long use life, small vibration, low noise, stable running speed, big start-up torque, start-up current without concussion, little current change when load is changing, self-locking capability, instant start, reverse and stop, and so on. This product can be used as drive component in low speed transmission system. On the occasions that require low speed direct drive, this product can be applied. If it gets through inverter power, then the operator can change motor running speed to meet the different requirements.

This product is a new type of low speed synchronous motor, which is a ungeared device can get from motor directly. Using this product can simplified the transmission structure, eliminate the motor institution noise.

This product is a closed structure. The excellent characteristics: High reliability, long operating life, runtime little vibration, low noise, speed stability and big start torque and start-up no impact on the current, when the load changes, the current changes very little, have certain selflocking ability, and it can start momentary, reverse and stop etc.

This product can be used as drive element of the low drive system. Wherever needs low drive directly, this product can be adopted, if match with frequency conversion power, it can transform the motor speed to meet with various needs.

Type	Voltage (V)	Torque (N.m)	Power (W)	Output shaft (mm) S(	Weight (kg)	Capicity (µF/v)	Resistance (Ω/W)
55TDY4	220	0.27-0.38	16	6	0.7	0.47µF/400V	1Ω/8W
70TDY4	220	1-1.2	24	8	1.6	0.8µF/400V	1.5Ω/16W
90TDY4	220	2.3-2.8	80	12	3.2	2.7µF/400V	680Ω/50W
110TDY4	220	4.0-6.0	110	12	6	4.0µF/400V	450Ω/100W
130TDY4	220	8.5	145	16	9	6.0µF/400V	360Ω/100W
1500TDY4	220	1.2-1.4	200	16	12.5	8.0µF/400V	260Ω/150W
