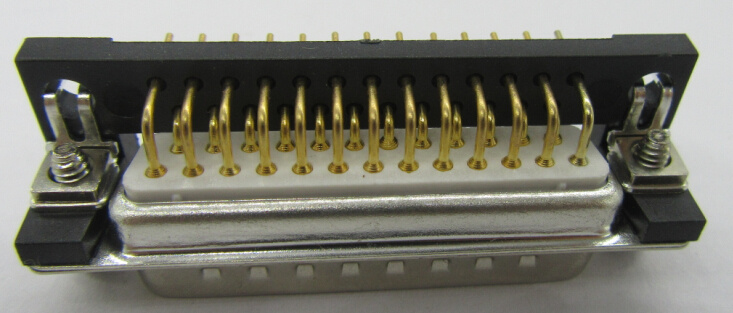

Machined D-SUB Female Connector, Right Angle, with Thread and Fork

Machined D-SUB Female Connector, Right Angle, with Thread and Fork
Price: US $ 2.5/Piece
Min Order: 500/Piece
Pay Type: T/T,Western Union,Paypal
Prod Model: DB25-F-R-G0-T

Product Description


Specifications:
Machined D-SUB Female Connector, Right Angle, with Thread and Fork
Main Feature:
.9/15/25/37/50 pin d-sub connector
.right angle or dip straight or solder type
Material:

Standard insulator
PBT thermoplastic,30%glass filled(UL94V-0 rated)
Insulator color
Blue/Black/White
Contacts material:Brass
Contact Plating:Gold Plated
Shell Material:SPCC
Shell Plating:Nickel (or Tin,Zinc,Gold)Plated
Hardware Plating:Steel,Nickel (or Tin,Zinc,Gold)Plated
Electrical:
Rated load:0.5A 30V DC
Contact resistance:30MΩ Max
Insulation resistance:100 MΩ Min.AT 500V DC
Dielectric Withstand Voltage:500V AC for 1 minute Min.
Mechanical:
Insertion force:0.75 lbs max.
Extraction force:0.44 lbs min.
Life:5000 Times
Temperature Rating:
Operating temperature:-40°C to +70°C
Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
