| Prod Model: |
S2800E |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Western Europe |
| Color: |
Black |
| Control Type: |
Vector Control |
| Certification: |
CE ISO |
| Output Voltage: |
220V; 380V;660V |
| IP Rate: |
IP20 |
| Multi-Speed Function: |
8 Speeds |
| Output Current: |
5.4-290A |
| Pid Control: |
Built-in |
| Overload Capacity: |
150% Rated Current in 60s; 180% Rated Current in 1 |
| Jog Key Function: |
Jog Key Function |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
Machtric |
Product Description

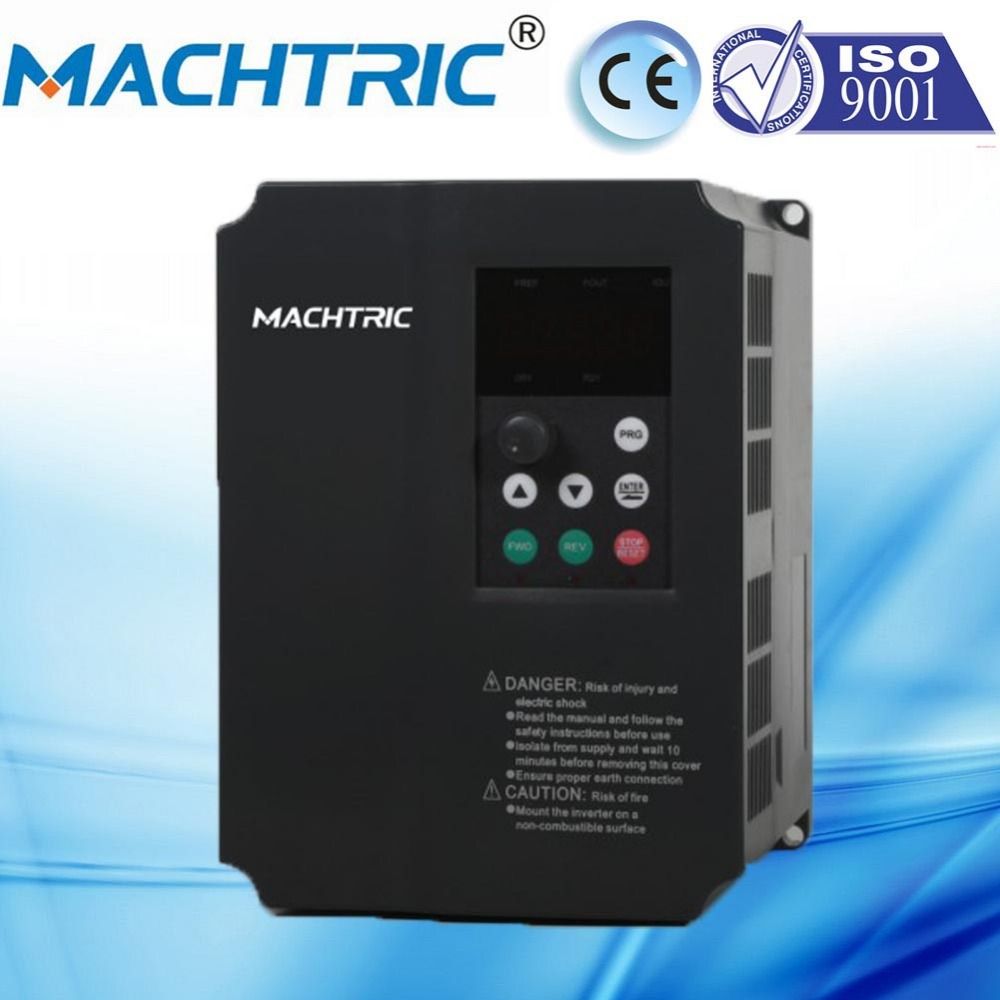

S2800 E Series Vector Control Inverter
Many machine lines and output is 10000set /month
Customized specification is accepted.
Implement strict quality testing and control procedure to make superior quality.
Certification:ISO 9001,ISO14001,OHSAS18001 & CE
Application:
Paper machinery, Screw output device, Drawing Equipment,
Dyeing plant, Injection plastic equipment, Air condition system,
Machine tool equipment, Boller system, Chemical fiber equipment,
Water supply, oil transportation installtion. ect. Texitile equipment.
Variable Frequency Drives Variable Speed Drives Frequency Converters AC converters
Frequency Inverters AC Drivers AC Drives AC Motor Drives VFD VSD Transistorized Drives
Applications:
- Food Machinery- Feeder, mixer, bag filling machines, pastry forming machine
- Woodworking machinery- Polishing machine, grinding machine, carving machine
- Textile machinery-winding machine, fabric inspection machine
- Packaging machinery-Liquid filling machine, pharmaceutical filling machine
- Blowing machine, Printing equipment-offset, Feeding machine, Sealing machines...
product specification:
| Model | S2800 E |
| Input | Rated Voltage& Frequency | Singel phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Votage Allowable Range | 220/380±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
| Techinc | Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector senserless control |
| Adjustment Ratio | 1:100 with vector senserless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector senserless control |
| Carrier Frequeny | 0.5~15Hz |
| Terminal | Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID,
etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage
, low voltage,
over heat, short phase, over load, etc, |
Our service:
1. Reply inquiry within 24 hours from Monday to Friday
2. OEM service accept
3. Charge Sample test
why choose us:
- 11years Golden Supplier on Alibaba
- 20 years experience at produce frequency inverter
- 10 years OEM experience for customers
- Products sold for more than 40 countries
- After-sales responding within 24 hours
- One to one pre-sales consulting services
- Factory located in Shanghai, with high-tech professional engineer teams.
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
