| Prod Model: |
S900GS |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Western Europe |
| Color: |
Black |
| Control Type: |
Vector Control |
| Certification: |
CE ISO |
| Power Of 440V: |
0.75kw~22kw |
| IP Rate: |
IP20 |
| Weight: |
Different Weight |
| Size: |
Compact Size |
| Communication: |
RS485 |
| Frequency Range: |
0.10~400.00Hz |
| Power Of 220V: |
0.4kw ~1.5kw |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Output Type: |
1/3 Phase |
| Brand: |
Machtric |

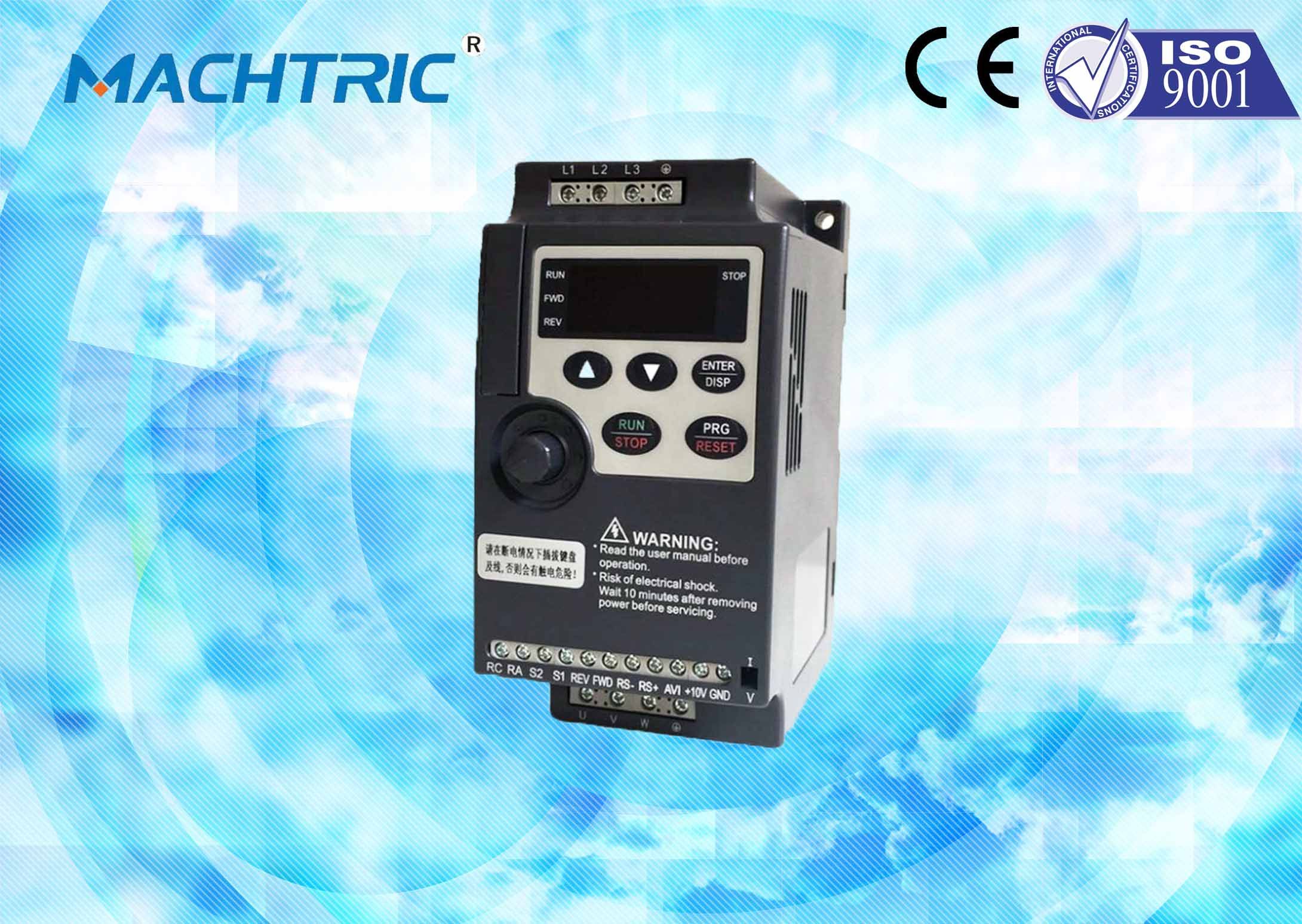

Product Description
Quick Details
Place of Origin: Fujian, China (Mainland)
Brand Name: Machtric
Model Number: S900GS
Output Power: 0.75kW-220KW
Output Type: Multiple
Size: VFD/AC MOTOR DRIVE
Weight: VFD/AC MOTOR DRIVE
Input Voltage: 200V
Output Voltage: 200V-240V
Type: AC-DC-AC
Output Frequency: 0.1-400Hz
Output Current: VFD/AC MOTOR DRIVE
CERFITICATION: CE,OHSA,ISO
Item: S900GS
Color: Black
Brand: Machtric
Protection: Ip20
Application: Light application
Warranty: 12 Months
VFD/AC MOTOR DRIVE: VFD/AC MOTOR DRIVE
Efficiency: 98%
Control mode: VF Control
Applications:
- Food Machinery- Feeder, mixer, bag filling machines, pastry forming machine
- Woodworking machinery- Polishing machine, grinding machine, carving machine
- Textile machinery-winding machine, fabric inspection machine
- Packaging machinery-Liquid filling machine, pharmaceutical filling machine
- Blowing machine, Printing equipment-offset, Feeding machine, Sealing machines...
product specification:
| | Items |
S900GS |
Power
Supply | Rated voltage, Frequency | Single phase/Three phase 220V 50/60Hz |
| Voltage Range | 220V:170V~240V 380V:330~440V |
| Output | Voltage Range | 220V:0~220V 380V:0~380V |
| Frequency Range | 0.10`400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/current, DC bus voltage, the temperature and so on. |
| Control Specifications | Output Frequency Range | 0.10Hz~400.00Hz |
| Frequency Setting Resolution | Digital input:0.01Hz, analog input:0.1% of maximum output frequency |
| Output Frequency Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load requirements |
| Torque Control | Auto increase: auto raise torque by loading condition; manual increase; enable to set0.0~20.0% of raising torque |
Multifunctional lnput
Terminal | Six multi-function input terminals, realizing functions including fifteen section speed control, program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional Output
Terminal | 2 multi-function output terminals for displaying of running, zero speed, counter, external abnormity, program operation and other information and warnings |
| Acceleration/deceleration Time Setting | 0~-999.9s acceleration/deceleration time can be set individually |
| | PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input:0 to 10V,,0 to 20mA can be selected;
Dig ital input: Input using the setting dial of the operation panel or RS485 or UP/DOWN |
| Multi-speed | Six multifunction input terminals, 15section speed can be set |
| Automatic voltage regulation | Automatic voltage regulation function can be selected |
| Counter | Built -in 2group of counters |
Protection/
Warning Function | Overload | 150%,60 second(Constant torque) |
| Over Voltage | Over voltage protection can be set |
| Under Voltage | Under voltage protection can be set |
| Other Protections | Overheat, short circuit, over current, and parameter lock and so on |
| ronment | Ambient Temperature | -10ºC to 40ºC(non-freezing) |
| Ambient Humidity | Max.95%(non-condensing) |
| Altitude | Lower than 1000m |
| Vibration | Max. 0.5G |
| Structure | Cooling Mode | Forced air cooling |
| Protective Structure | IP20 |
| Installation | Mode | Wall Mounted |
