Magnetic-Conductive Laminated Sheet B

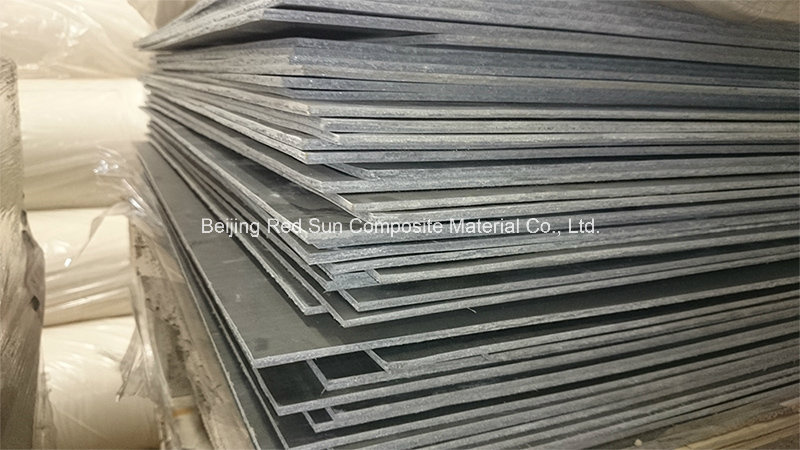

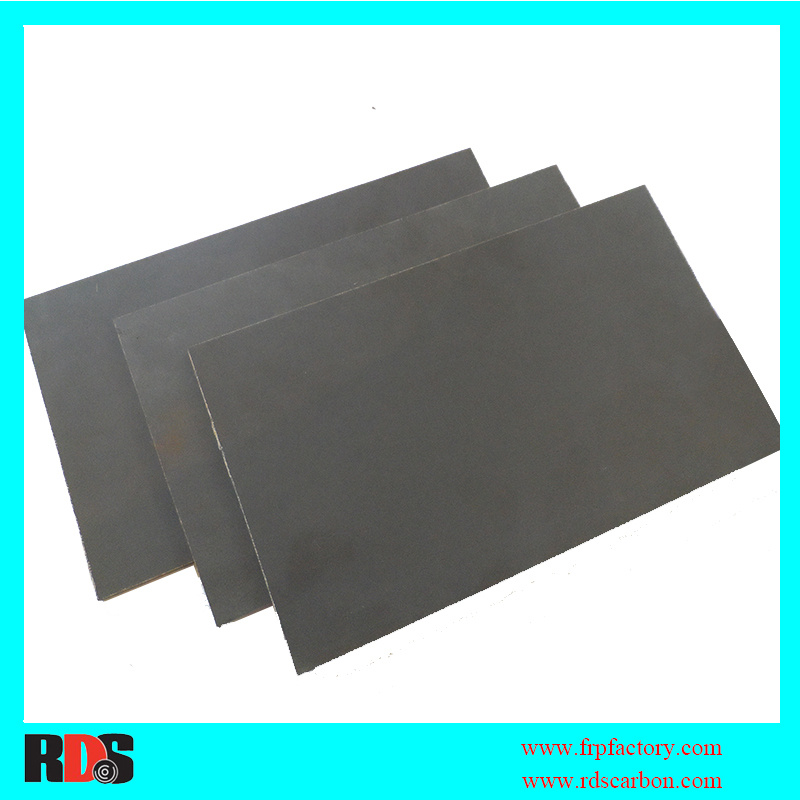

Name: Magnetic-Conductive Laminated Sheet B
Brand: all-electronics-online.com
SKU: 670391902
Availability: InStock
Rating: 4.7 (43 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Normal Dimension:	940±20mm*1440±20mm
Application:	Electrical Base, Shell
Type:	Solid
Chemistry:	Organic Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV

Product Description

Temperature classification is B. Good magnetic permeability and excellent mechanical property.

Used as magnetic slot and wedge of electric machines in the well or other motors.

Table 1: Nominal thickness and tolerance
Nominal thickness mm			Tolerance mm
2			± 0.30
2.5			± 0.33
3			± 0.37
3.5			± 0.42
4			± 0.45
5			± 0.52
6			± 0.60
Note: 1. The other tolerances are negotiated by customer and supplier. 2. The tolerance of preferred thickness should adopt the bigger one if the one of preferred thickness for nominal thickness is not lied in the table. 3. Normal dimension: 940± 20mm× 1440± 20mm
Table 2: Technical Data
No	Properties			Unit	Normal Value
1	Density			g/cm 3	≥ 2.8
2	Thermal stability at 180 ° C			h	24
3	Water absorption			%	≤ 1.0
4	Tensile strength			MPa	≥ 90
5	Flexural strength	lengthwise	at room temperature	MPa	-
			at high temperature		-
		crosswise	at room temperature		≥ 107.8
			at high temperature		-
6	Impact strength (in-notched)			kJ/m 2	≥ 39.2
7	Comparative magnetic permeability 1.6× 10 4 A/m			-	≥ 7

Beijing Red Sun Composite Material Co., Ltd. is one professional producer for SMC and BMC molding products, insulating rigid laminates, rods and tubes, flexible composites, high thermal resistant products, gasket, fiber glass products, engineering plastics, etc. We also provide the further fabrication for these products and kinds of composite materials. You can get most of what you want from us.

Advanced production line, excellent technology and experienced work team assure we can provide you the products comply with the international standards and different requirements. We assure that you will get the high efficiency feedback and best service from us for those products that we deal with and certainly with the competitive price.

We have won customers from USA, Canada, Germany, Japan, and so on to be our partners, and more and more customers are joining us.

Red Sun Composite always takes the "Mutual Benefit", "Quality First" and "Better Ethics" as principle. Red Sun Composite will be your partner to success.
