Magnetic Contact Reed Switch Magnetic Reed Switch Sensor Br-1014t

Name: Magnetic Contact Reed Switch Magnetic Reed Switch Sensor Br-1014t
Brand: all-electronics-online.com
SKU: 699042072
Availability: InStock
Rating: 4.3 (66 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BR-1041T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wire:	3/4" AWG
Color:	White Brown Grey
Install:	Recessed Mount
Certification:	CE

Product Description

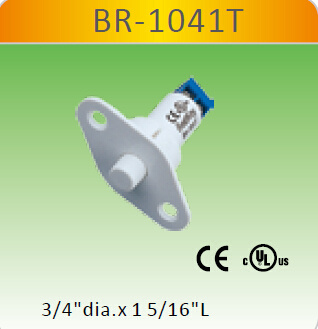

SENTEK BESTKEY Magnetic Contact Switch recedded mount BR-1041T

* Push button switch
* 3/4" diameter press to fit
* Self-locking
* Spacer and screws included
* 18" #22AWG leads or screw terminal
* Special leads available
* Colors: White, Brown

For more information, pls contact us freely!

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BR-1041T	Closed	N/O	1/4(6)	0.150	10	100	0.5
BR-1041TA	Open	N/C	1/4(6)	0.150	3	30	0.2

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
