Magnetic Door Sensor with UL

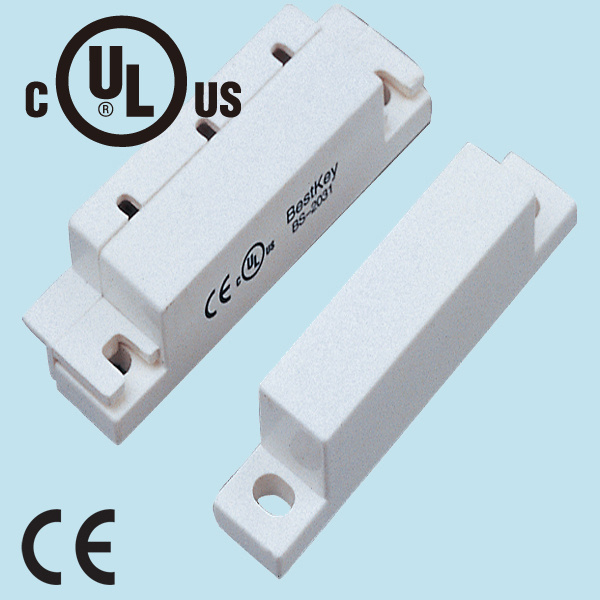

Name: Magnetic Door Sensor with UL
Brand: all-electronics-online.com
SKU: 699595172
Availability: InStock
Rating: 4.9 (118 reviews)

Price:	US $ 0.60-0.86/Piece
Trade Terms:	FOB,EXW,others
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BS-2031
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	UL

Product Description

* Screw mount Concealed terminals

* Spacers, cover and screws included

* Switches or magnets available seperately

* Resistor, Diode and Supervisory Loop available on request

* With lead available: BS-2025

* Colors: White, Brown, Grey

Part Number	Loop Type	Reed Form	Closed Gap[Inch(mm)]	Departure Gap[Inch(mm)]	Maximum Initial Contact Resistance(Ohm)	Maximum Contact Rating(W)	Maximum Switching Voltage (VDC/VAC)	Maximum Switching Current(A)
BS-2031	Closed	N/O	1.2(30)	1.3(33)	0.150	10	100	0.5
BS-2031A	Open	N/C	1 1/4(31)		0.150	3	30	0.2
BS-2031C	Closed&Open	SPDT	1 1/4(30)		0.150	3	30	0.2

Ningbo Sentek Electronics Co., Ltd., is a professional manufacturer in fire and security products, such as smoke detector, gas detector, magnetic contacts and so on.

Most of magnetic contacts are UL list, UL, EN approval for smoke detector and heat detector.

We are still like to be your OEM/ODM manufacturer in fire and security products, including reed sensors.

Warmly welcome customers for all over the world to talk and do business with us.
