| Prod Model: |
Magnetic GPS Tracker tk104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC |
| Battery: |
3.7V 6000mA/H Polymer Battery |
| Size: |
94mm*60mm*38mm |
| Weight: |
300g |
| Large Battery: |
Vehicle GPS Tracker with 100days Standby |
| Feature: |
Waterproof, Magnetic, Internal External Antenna |
| GPS Tracking Solutions: |
SMS, GPRS Web Platform and Android Ios APP |
| GPS Accuracy: |
5m |
| For Vehicle Tracking: |
Engine Stop, Over Speed, Real Time Tracking |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Position and GSM Transmit |
| Port Number: |
20 |
| Model: |
Vehicle GPS Tracker Tk104 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

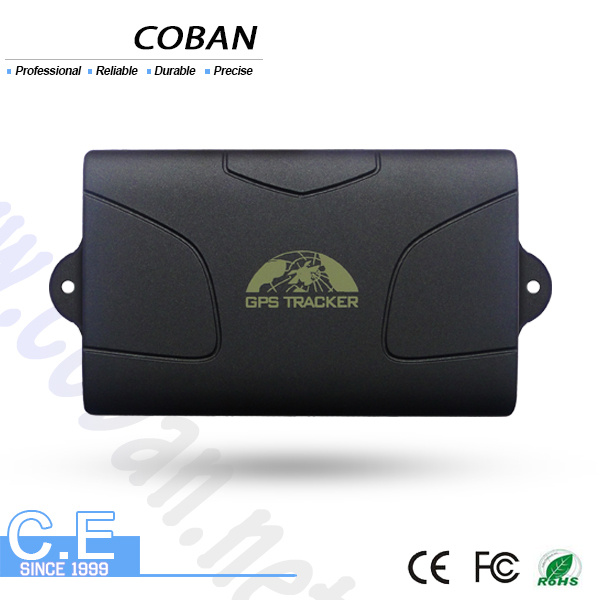

Magnetic GPS Tracker with large battery for vehicle tracking (GPS104)
1. Built-in 6000mAh battery
2.60 days standby time
3. Powerful magnet
4. Waterproof shell
5. Wireless vibration
6. Voice surveillance
7. SMS alerts
8. With Free PC platform
9. Optional web-server platform
10. With 3 colourful LED signal light
11. External and Internal GSM/GPS antenna to choose use
12. Support for external power
Functions:
1. View remote target current location map through cell phone or PDA
2. Get location in real street/address name, by sending address+password to tracker, it will send u back a detailed street address
3. GPS+LBS positioning ways. When there is no GPS signal, it will locate by GSM network.
4. Auto tracking continuously. Send SMS "fix+intervals+time unit+***n+password" to unit, it will track automatically
5. Single location by calling tracker
6. Oil-cut and restore by sending SMS
7. Power-cutand restore by sending SMS
8. Low power alarm. It will alarms when the power is below 3.7V
9. SOS panic alarm. It will send "help me! +lat/long. " to you cell phone asking for help
10. Shock sensor alarm.
11. Movement alarm
12. Overspeed alarm
13. Real time tracking by SMS or computer
14. Easy to switch between SMS and GPRS mode
15. Voice surveillance
16. Sleeping function: Can save power to extend the standby time
Applications:
Locating and tracking service for cars, trucks, container trucks,
| Content | specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA± 1mA |
| GSM operating Current | 54mA± 3mA |
| GPRS Current(data transfer) | 60mA± 5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A± 0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
Our Services
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
Contact Reference
Shenzhen Coban Electronics co., Ltd
website:www.coban.net
Attn:Winni Zhou
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
