| Prod Model: |
GPT26 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Weight: |
180g |
| GSM Frequency: |
850/900/1800/1900MHz |
| Working Voltage: |
3.7VDC |
| Dimension: |
108.5(L)X66.5(W)X22.4(H) |
| GPS Positioning Accuracy: |
5-15m |
| GPS Frequency: |
1575MHz |
| Battery Capacity: |
7000mAh |
| Lbs Accuracy: |
200m |
Product Description
Magnetic GPS tracking device support low power alarm and GEO-fence alarmProduct DescriptionPRODUCT FEATURES:Supports quad bands, i.e. 850/900/1800/1900MHz, universal in the world.
Built-in 7000mAh High-capacity battery, The longest standby for a month (LBS status)
Usually LBS working, GPS can be enable when needed (automatically closed after 6 hours)
Strong magnetic force,can be adsorped on iron
Military grade three anti-performance, waterproof to IP67
GPS / LBS dual positioning, support A-GPS
KEELIN WEB platform, mobile APP, SMS remote setting mode, tracking devices
Support EELINK protocol, can be integrated to any platform of the customer's
OTA upgrade firmware.
PLATFORM/APP:Real-Time Tracking
History Route Play Back
Vibration Alarm
SOS Alarm
Speed Alarm
Geo-fence Alarm
Low Battery Alarm
PRODUCT PARAMETERS| Voltage | 3.7 VDC |
| Work Current | <30 mA |
| Standby Current | <15 uA |
| GPS Accuracy | 5-15 m |
| LBS Accuracy | About 200 m |
| GPS Frequency | 1575MHz |
| GSM Frequency | 850/900/1800/1900MHz |
| Hot/warm/cold Start | <3s,<15s,<60s |
| Battery Capacity | 7000 mAh |
| Dimensions (mm) | 108.5(L) × 66.5(W) × 22.4(H) |
| Work Temperature | -20ºC~70ºC |
| Work Humidity | 20%~80% RH |
| Net Weight | 180 g |
| IP Level | IP67 |
PS Tracker Operating PrincipleThere installed Satellite Receiver module and mobile phone module. GPS precise positioning with A-GPS and feedback position to the platform via GPRS at setting times(e. G. Every 30s). It shows the precise position of the device on the map of platform. We need GPRS to transmit data, so the mobile phone with SIM card need the GPRS function.

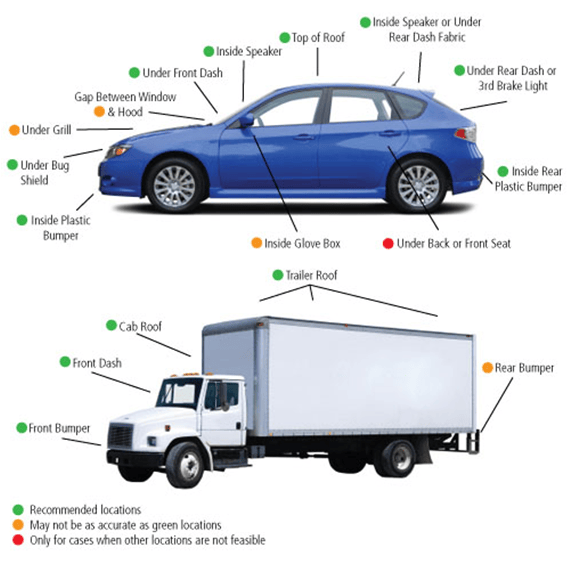

Installation postion
Platform
You can choose Keelin terminal monitoring platform or download APP by phone. It is both designed by EELINK, we can position, real time tracking and playback on the platform server or app. Meanwhile you can use your own platform which can support multiple protocols.
Platform website: www.keelin.com.cn, choose language at the right hand side and click demo button to experience
Accessories (Optional)
Relay/ Microphone/SOS cable
Delivery
*Sample and mini order will be delivered within 1-2 working days after the receipt of payment.
*For order over 500pcs or customized order, please contact our sales to make sure the current inventory. Our manufacturing capacity is 1, 200, 000 units per year. And for the popular units we hold 3000pcs stocks in advance per month.
Warranty
*All products have been strictly Quality Checked in house before packing.
*All products have been well packed before shipping.
*One year warranty is provided for all models. We will bear maintenance cost during warranty.
Customization
Shenzhen Eelink Communication Technology Co. Ltd is a creative hi-tech company which focus on GPS tracker R&D and market leading. We offer customization according to different customer's requirements...
Case one
We customize one OBD tracker to provide complete tracking solutions for a well-known company. This model combined hardware to software, including base positioning service platform and value-added positioning service platform. Users can quickly track, position their cars through this platform
Case two
We design and customize one tracker used in food transportation industry for an American Logistic Food Transportation Company. This tracker monitors the food temperature all the way during transportation.
Case Three
Special Customization GPS Tracker for North American customer. We've got FCC, PTCRB Certificate and the defective rate is less than 0.1%. Sales volume has reached one million till now.
Case Four
Customize GPS phone for kids with multiple function of positioning, remote monitoring and radiation protection.
