Magnetic Latching Relay for Meter (WJ-80A)

Prod Model:	WJ-80A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificate:	ISO, Ce

Product Description

Appliance:
1. Electrical meter.
2. Automatic meter reading(AMR).
3. Automatic control devices.

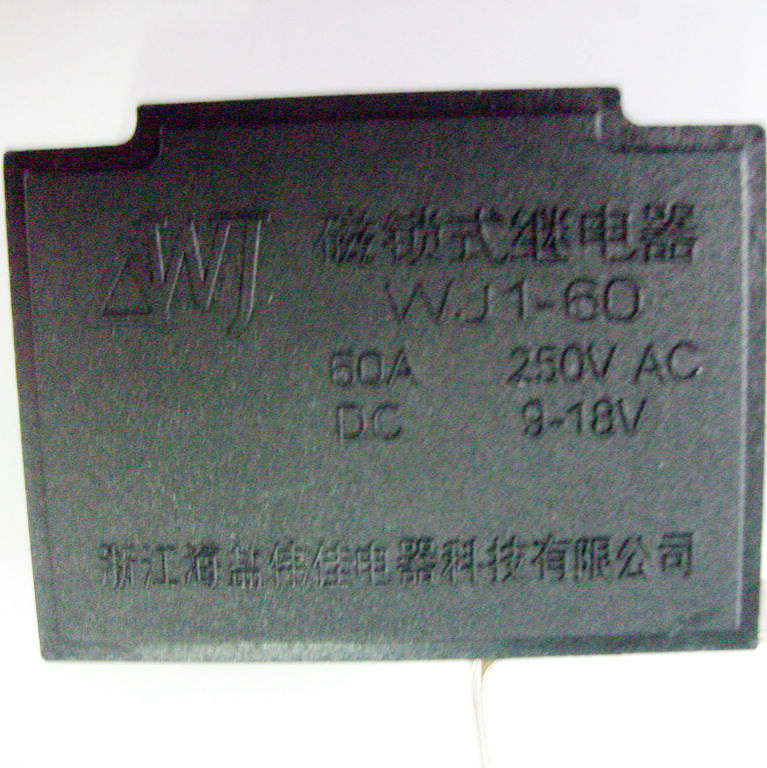

Magnetic Latching Relay WJ-80A
Basic Data:
Contact Arrangement: 1A. 1B
Contact Material: Silver Alloy
Max Switching Current: 60A. 80A
Max Switching Voltage: 250VAC
Max Switching Power: 15KVA

Production Features:
1. Classifid as 60A and 80A.
2. Various installation holes for customer's choice.
3. Law temperature rise. Low coil power.
4. Long electrial and mechanical life.
5. Well quality with low price.

Specification Data:
Coil Rated Voltage (V)	9	12
Coil Resistance(Ω )± 10%	80	145
Coil Pulse Drive Voltage Amplitude	≥ 120% Rated Voltage
Coil Pulse Drive Width	40mS Min    100mS Max
Coil Power	Double Coil  2/2W
Rate Switch Current	80A
Rate Switch Voltage	250VAC
Rate Current Contact Pressure drop	60mV  Max
Contact Switch Time	20mS  Max
Ambient Temp	-40-80° C
Vibration	10-55Hz  Single Amplitude 0.75mm
Impact	147 m/S²
Relative Humidity	45%-85%
Life(Mechanical)	≥ 1× 10
Life(Electrical)	≥ 1× 104
Max Operate Frequency	600 OPS/H
Dielectric Strength(Between open contact)	1500VAC 50/60Hz
Dielectric Strength(Between coil & contact)	3750VAC 50/60Hz
Insulation Resistance	1000MΩ (500VDC)

We can design to meet customized requirement.

Technical points:
1. Magnetic system: The patented technique is a smart and cleverishly designed system which works with the structure of metal spiral-like magnetic shielding system without external electron magnetic interference. What's more, the fast push-pull effort of instaneous operation is fierce. Meanwhile, it owes trusted ability of resisting vibration and impact force as well as steady magnetic lock. The mechanical loss during its linear reciprocating operation is very little.
2. Contact operating system: It has very little mechanical loss due to its reform from inefficient swing-out lever operation to linear reciprocating operation. The use of the two-way flexible gap-free floating operation in its moving contact effectively reduces its contact bounce and extends the using life of contact. The big contact separating brake clearance effectively ensure the safely of the electrical properties; High contact close-brake pressure and lower voltage at rated load(<60mv) and lower temperature conductivity.
3. Magnetic latching relay pulse trigger parameters: The pulse amplitude and width rely on the accurate parts processing. The perfect manufacturing technique effectively ensures the long-term stability of the pulse trigger parameters of the magnetic latching relay.
4. Its mechanical-electrical integration system design and its internally installed circuits of commutations, boost pressure, stored energy and relay driving make the energy meter convenience, safe and reliable.
