Magnetic Level Transmitter-Floater Type Water Level Sensor
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
UQK-B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sensor Accuracy: |
5mm, 10mm, 20mm |
| Signal: |
Switch, Sensor, Transmitter |
| Range: |
0-15m |
| Principle: |
Magnetic Sensors |
| Density: |
0.5 |
| Medium: |
Water, Liquid, Oil |
Product Description
Continuous Float Level Measurement-magnetic type level sensor transmitterProduct DescriptionContinuous Float Level Transmitter uses the magnetic inside of the floating ball following as the change of liquid level to change divider circuit composed by the resistor inside of the rod and the magnetic reed switch, thus converted into divider signal which can be turned by transmitter into standard industrial signal of 4~20mA so as to test the liquid level. The smaller the clearance of the magnetic reed switch is, the higher the accuracy is. This level indicator can also be used for long-distance indication if combined with other secondary instrument. It is a reliable indicator with simple principle.

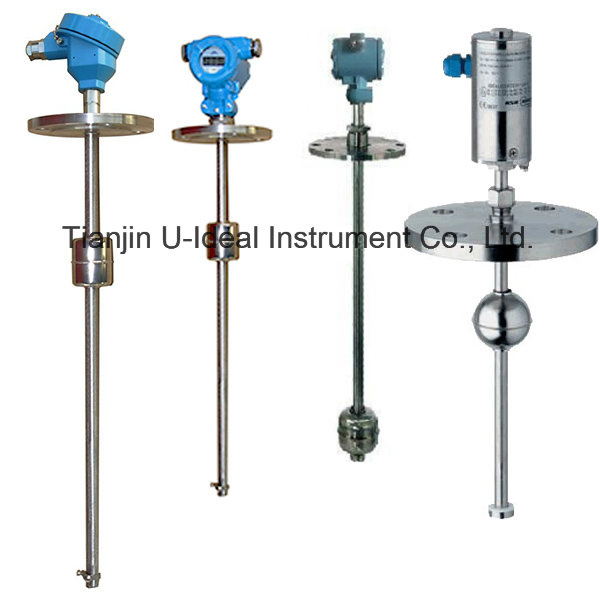

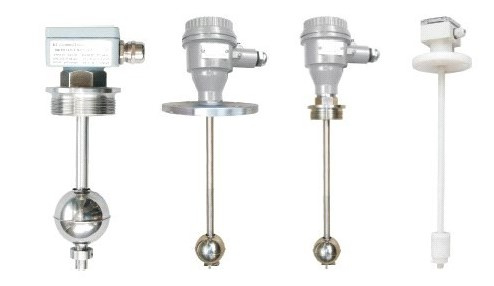

Product Pictures
Product FeaturesPlastic material such as PP, PVC, NBR, PVDF, can be used in strong acid and alkaline places;
Metal material such as SUS 304/316L, can be used in the place where the high temperature is up to 200 °C and high pressure is up to 64kg/cm2;
Metal floating ball has dimensions of Φ45, Φ52, Φ75 and so on; Plastic has Φ48 and Φ55. Specific gravity ranges from 0.5 to 0.8g/cm3.
Output two-wire system: 4
~20mA or Resistor three-wire, supply voltage is 5
~30VDC;
Junction box: Stainless steel, aluminum alloy, PC, PP
Connection has thread types like PT, PF, NPT, BSP; flange types such as JIS, DIN, ANSI and so on available
The protection level of outgoing line or junction box is IP-65.
Special specification can be customized according to the user's requirement.
Remark: Special customization is available for this product.Selection Instruction of Continuous Float Level TransmitterWhen users select Continuous Float Level Transmitter, please refer to the following five steps in selection instruction. The Continuous Float Level Transmitter is a kind of customized product. To make the user easily select the right model, various types of flanges, threads, bracks, floating ball specifications, junction boxes and material properties are specially sorted out. The user can make a selection in the corresponding model selection table.
Model Selection of Continuous Float Level TransmitterNotesUsers select corresponding specification of float according to the working temperature, pressure, gravity, acid and alkali etc.
properties of the tested liquid.
Temperature: the maximum temperature of PVC is 150 °C, the maximum temperature of PP is 80°C, the maximum temperature of PVDF is 150°C, the maximum temperature of SUS 304/316L floating ball is 200°C.
| Name | floating level transmitter |
| output | 2-wire 4~20mA, switching alarm,LCD, Hart optional |
| Load | 0~500 |
| Level range | H=0.1~30m(specail assemble if longer than 6m) |
| Accuracy | A:+/-5mm, B: +/-10mm, C: +/-20mm |
| Fluid temperature | -20~150ºC |
| Electric Power | DC 24V |
| | | |
| Model selection |
| UQK | A: Level Switch |
| B: floater level transmitter |
| Accuracy (transmitter) | A | 5mm |
| B | 10mm |
| C | 20mm |
| Signal (transmitter) | L | LCD |
| H | Hart |
| Material | S | S304, S316 |
| P | PP Plastic anticorrosive (temperature<80ºC) |
| structure | 1 | float ball diameter:45mm. H1=40mm, H2=30mm |
| 2 | 76mm, H1=50mm, H2=40mm |
| 3 | 125mm, H1=80mm, H2=65mm |
| Installation | | F | flange |
| P | angle plate bracket |
| S | screw |
| A | adjustable screw is optional |
| Ex. Function | | | safety environment |
| E | explosion-proof |
