| Prod Model: |
Cargo Container GPS Tracking 104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
Ce FCC |
| Weight: |
300g |
| Compact Design: |
Internal and External GPS GSM Antennas |
| Delivery Time: |
1-3 Working Days |
| Shipment: |
DHL, UPS, EMS, TNT, FedEx, Hkpost etc |
| GPRS Protocol: |
Support TCP and UDP Protocol |
| Arm/Disarm: |
Acc, Shock Sensor Alarm |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| Large Capacity Battery: |
6000mA Battery |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
Coban GPS Tracker 104 |
| Screen Size: |
No Screen |
| Chip: |
No |
| Brand: |
Coban GPS Tracker |
| Certification: |
ISO9001 |
Product Description

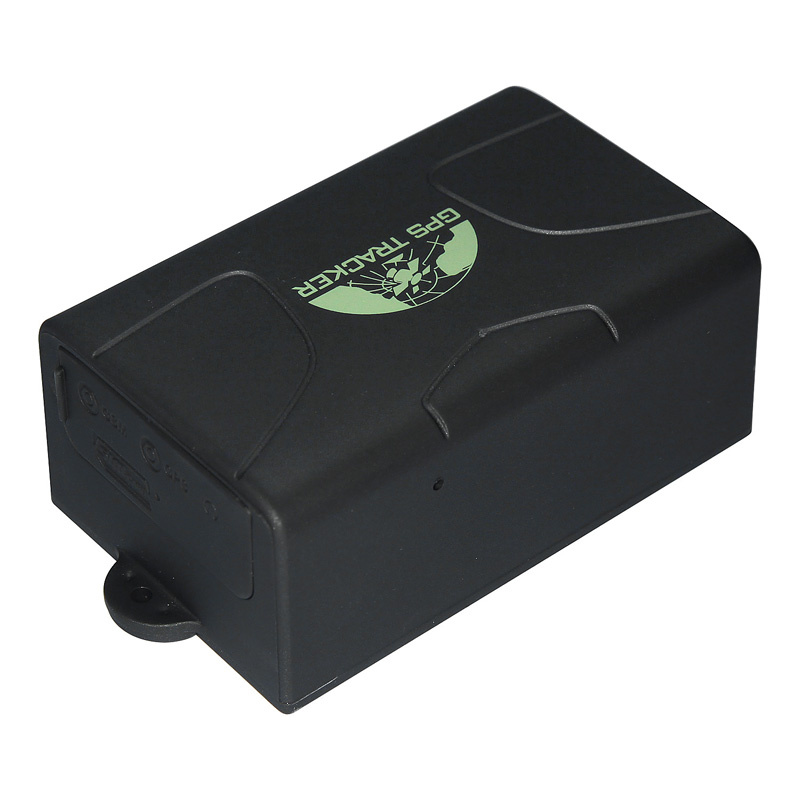

magnetic live tracking GPS Tracker for Cargo Container Tracking(GPS104)Function:
1. Waterproof shell
2. Built-in large capacity 6000MA battery, long standby time of 60 days.
3. Powerful magnets to absorb to vehicle firmly.
4.
Real-time tracking, retrieve of lost vehicles, cargo.
5. Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
6. Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
7.
Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
8. Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
9. tracking function by timing and frequency
10. Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district.
11. Movement alert: you can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number.
12. Over speed alarm: you can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
13. Low battery alarm function
14.
Remote Engine-stop and Resume.
Applying directions: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
Specification:
Content | Specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GPS/GSM/GPRS |
| Band | 850/900/1800/1900Mhz or 900/1800/1900Mhz |
| GSM/GPRS Module | Simcom340z or Simcom300z |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 4mA±1mA |
| GSM operating Current | 54mA±3mA |
| GPRS Current(data transfer) | 60mA±5mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1.2A±0.2A |
| Charge time | 5h |
| Standby time | GSM sleep mode | 1500h |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |

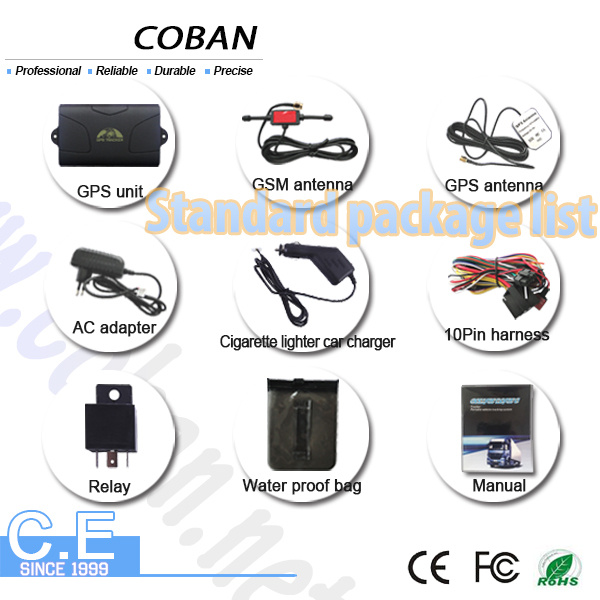

Part List
1 X GPS Tracker 104
1 X AC adapter (Input: AC 100-240V,Output DC: 1.5A,12V)
1 X Lighter car adapter (Car 12V OR 24V power)
1 X GPS Antenna
1 X GSM Antenna
1 X Relay
1 X Harness

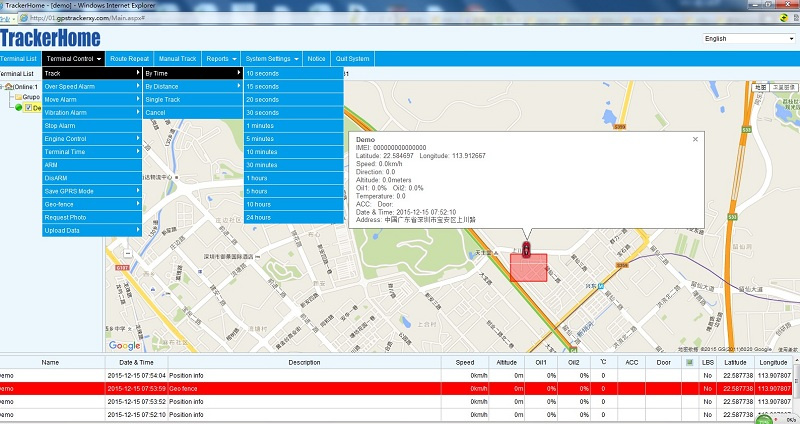

How to tracking ?The GPS devices support phone tracking and 13 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Tracking way:
Five types Tracking way:
1.SMS with google map

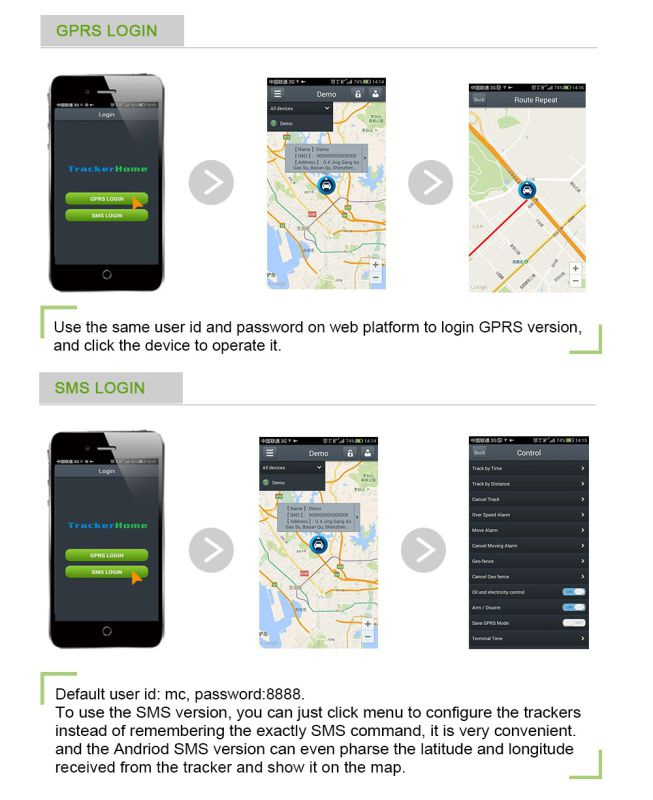

2. IOS and Android APP
3.get real address with street name
our website www.gpstrackerxy.com
E >: IOS and Android APP

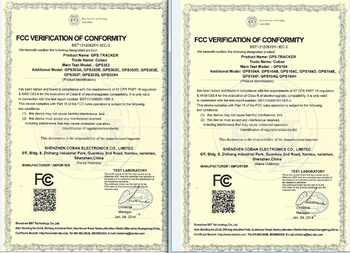

certificate
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 5-7 days after the receipt of payment. Please contact our sales to make sure the current inventory .
More details including user manual and photos etc will be sent after receive your inquiry Shenzhen Coban Electronics co., Ltd
