Name: Magnetostrictive Sensor Mini Bar Type Displacement Sensor
Brand: all-electronics-online.com
SKU: 820986235
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTM-25mm
Usage:	Position Measurement Sensor
Working Stroke:	25-300mm
Electric Stroke:	25.5-302mm
Working Speed:	5m/S
Material:	Aluminum Alloy

Product Description

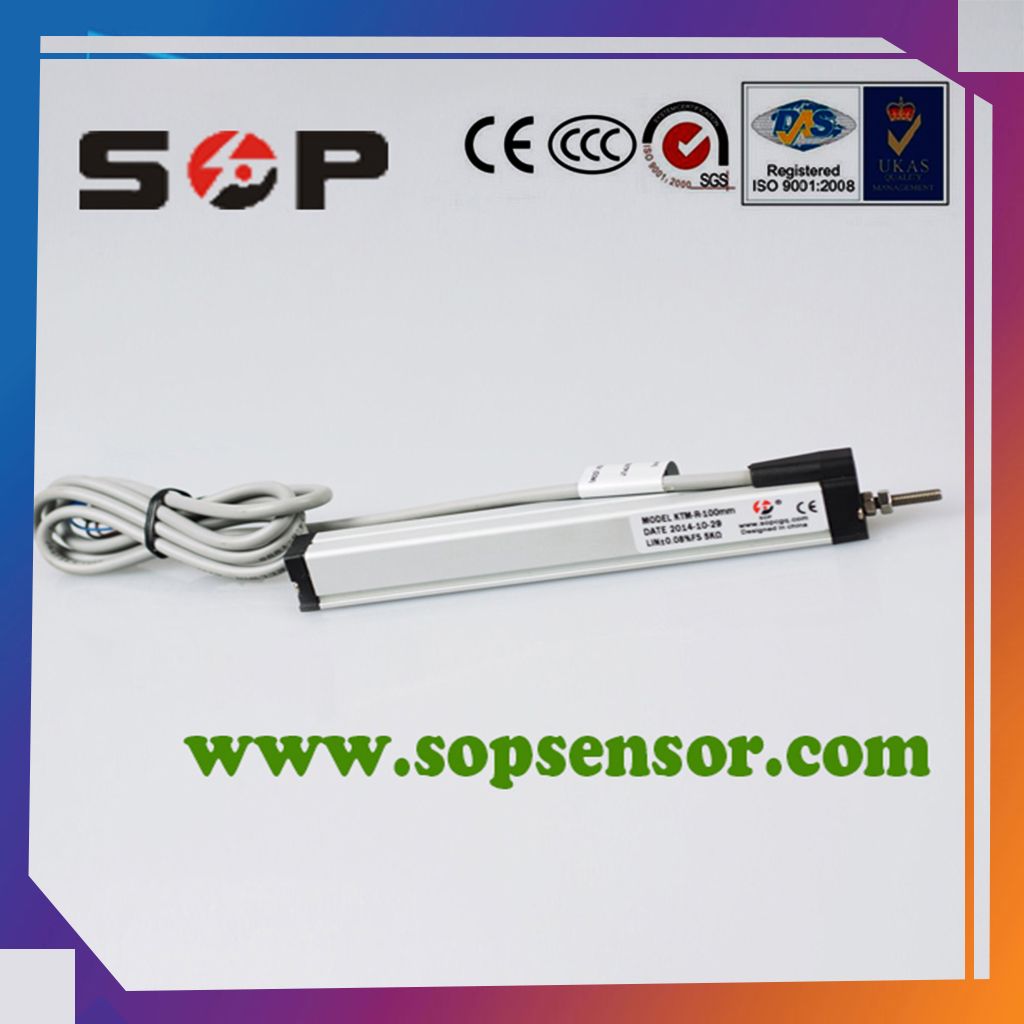

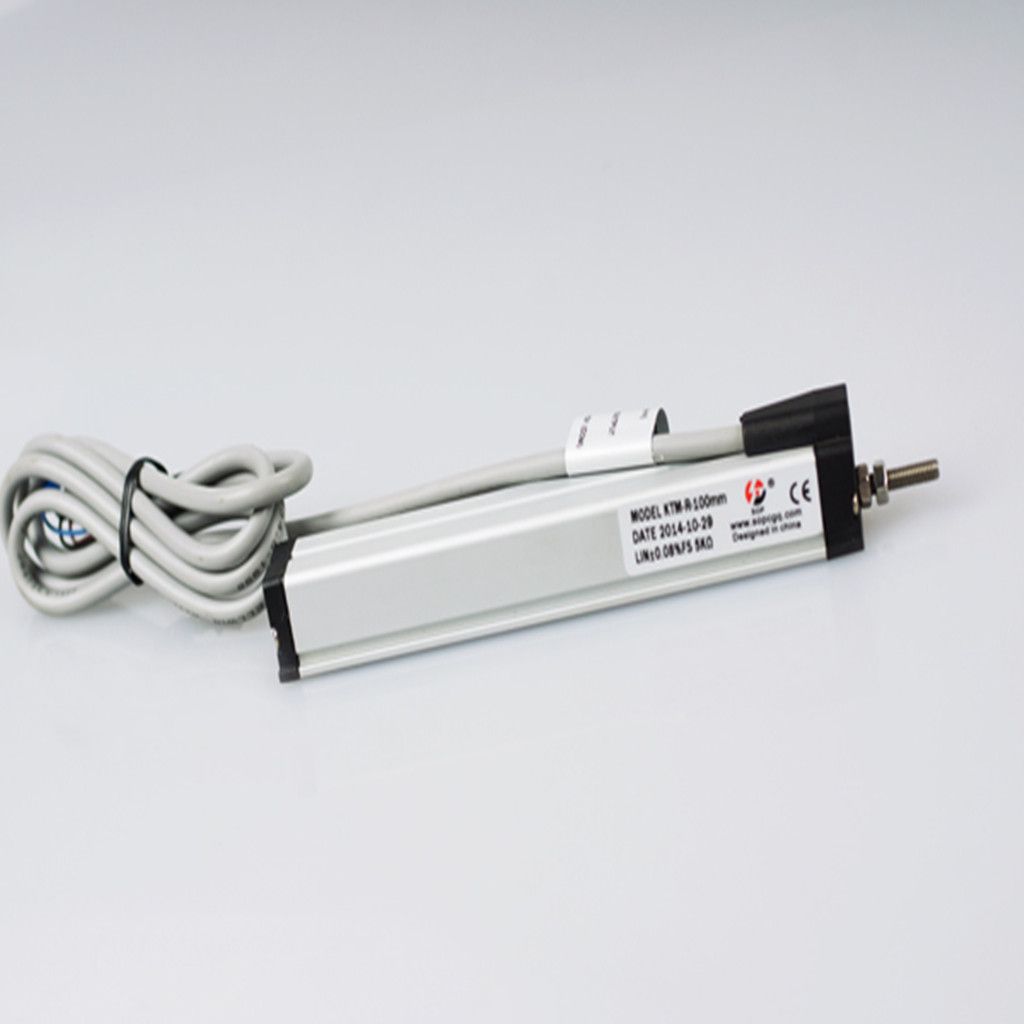

Magnetostrictive Sensor Mini Bar Type Displacement Sensor

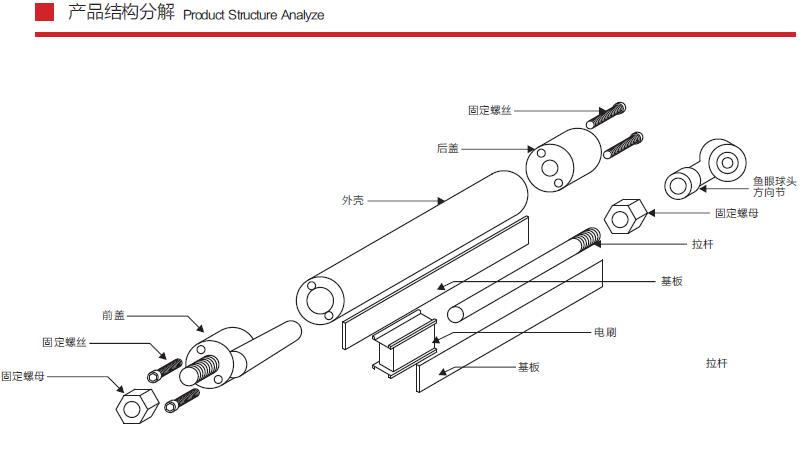

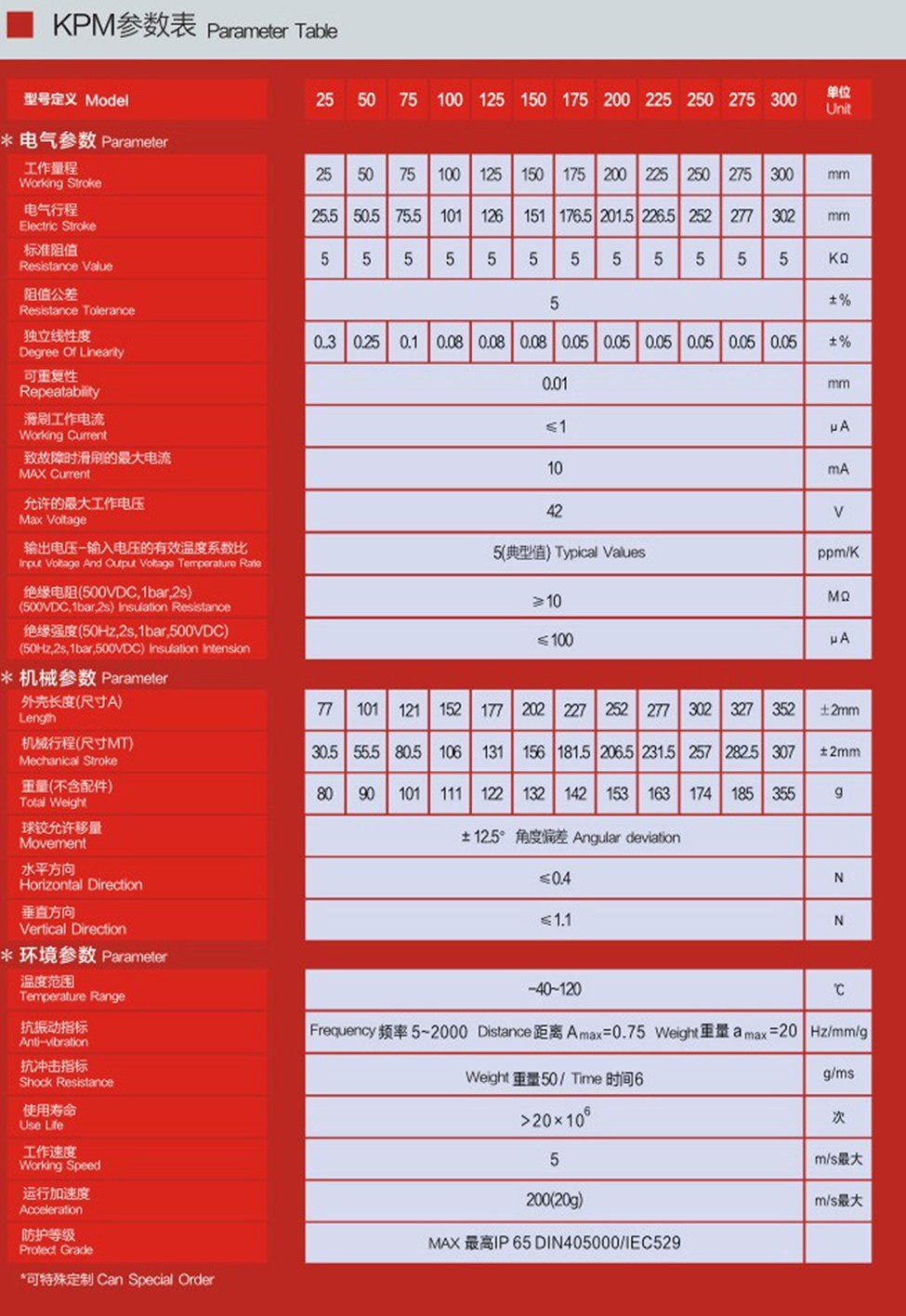

Model																																		Unit
Working Stroke	25	50			75			100			125			150			175			200			225			250			275			300		mm
Electric Stroke	25.5	50.5			75.5			101			126			151			176.5			201.5			226.5			252			277			302		mm
Resistance value	5																																	KΩ
Resistance Tolerance	5																																	±%
Degree of Linearity	0.3		0.25			0.1			0.08			0.08			0.08			0.05			0.05			0.05			0.05			0.05		0.05		±%
Repeatability	0.01																																	mm
Working Current	≤ 1																																	μA
Max Current	10																																	mA
Max Voltage	42																																	V
Input Voltage and Output Voltage temperature Rate	5(Typical Values)																																	ppm/K
(500VDC,1bar,2s) Insulation Resistance	≥ 10																																	MΩ
(50Hz,2s,1bar,500DVC) Insulation Intension	≤ 100																																	μA
Length	70			95			120			145			170			195			220			245			270			295			320		345	±2mm
Mechanical Stroke	30.5			55.5			80.5			106			131			156			181.5			206.5			231.5			257			282.5		307	±2mm
Movement	± 3° Angular deviation, ±0.05mm Parallel Deviation
Horizontal Direction	≤0.4																																	N
Vertical Direction	≤1.1																																	N
Temperature Range	-40~120																																	ºC
Anti-vibration	Frequency 5~2000 Distance Amax=0.75 weight a max =20																																	Hz/mm/g
Shock Resistance	weight/time																																	g/ms
Use Life	>50×106
Working Speed	5																																	m/s(max)
Acceleration	200(20g)																																	m/s(max)
Protect Grate	MAX IP65

Product feature:
Volume smaller
Linear excellent
Resolution rate is higher than 0.01mm
Protection grate is ip65
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage:

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

Sensor fault and coping methods
1, power supply capacity caused by lack of wave electronic ruler -- The power supply capacity of forstability
2, FM interference and electrostatic interference caused by electronic scale digital display beating -power lines and signal line equipment to separate line slot
3, display data beating regularly, or there is no display data -- check wire breakage or short circuit
4, the installation will cause a bad beating - mounted display digital linear displacement sensor forneutral good, but the parallelism allows error - 0.5mm, angle is allowed error of plus or minus 12 degrees.
5, sensor wiring error -- right connect the power supply lines and output lines
