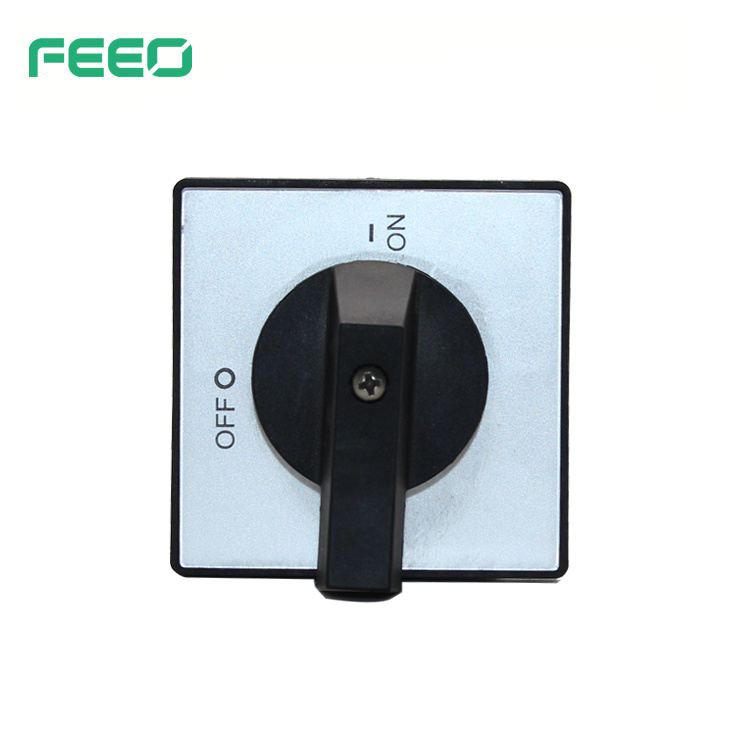

| Prod Model: |
FDIS |
| Name: |
DC Isolator Switch |
| Function: |
Isolation Switch |
| Rated Current: |
32A |
| IP Degree: |
IP30 |
| Rated Voltage: |
600-1500V |
| Rated Insulation Voltage: |
1500V |
| Rated Impulse Withstand Voltage: |
8000V |
| Type: |
Low-voltage |
| Structure: |
Single-column Disconnector |
| Installation: |
Outdoor High-voltage |
| Operation: |
Manual |
| Grounding: |
Un Grounded |
| Series: |
Three |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Single Throw-in |
| Certification: |
CE |
| Number Of Poles: |
2, 4p |
| Brand: |
Feeo |
Product Description
main panel dc power isolation isolator grid connected inverter switch Product Description

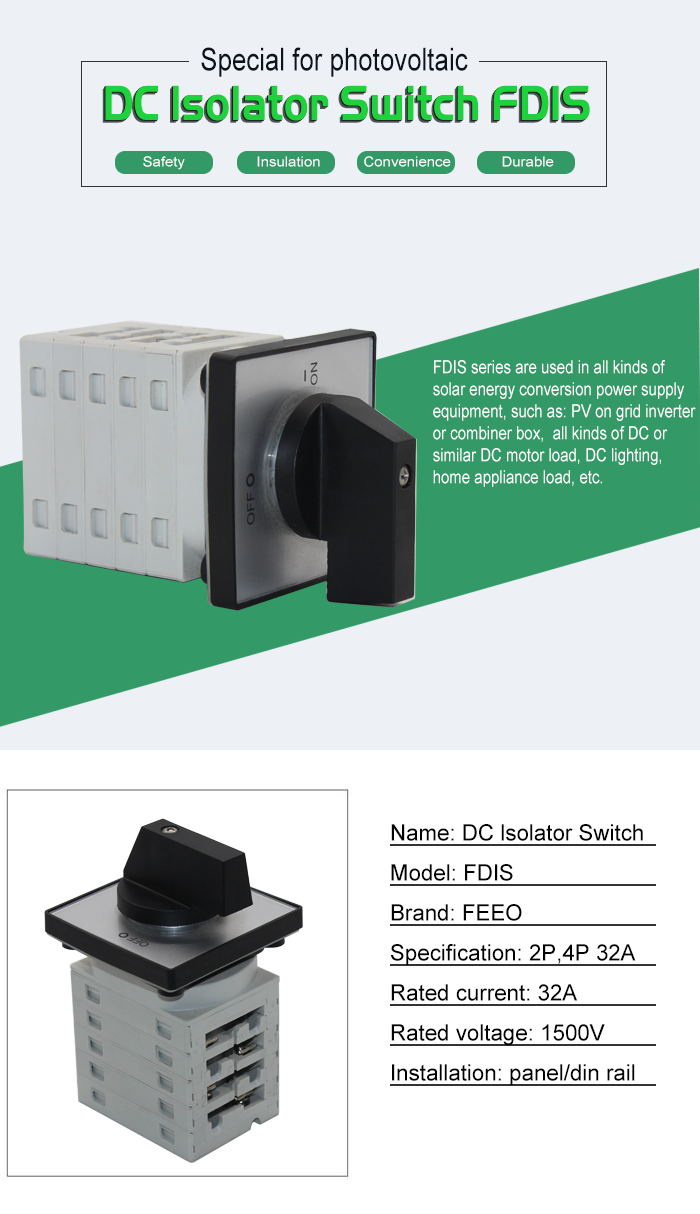

DC Isolator Switch Application:
1. All kinds of solar energy conversion power supply equipment for DC interruption, such as:
Photovoltaic grid connected inverter or PV grid connected system between battery board and inverter
Photovoltaic off net inverters or photovoltaic off net systems between the battery board and the inverter
Photovoltaic energy storage inverter or photovoltaic energy storage system between the battery board and the inverter
PV pump controller or PV pump system panel and controller
2. All kinds of DC low voltage incoming line or DC low voltage distribution line, such as:
The interruption of each load and transmission line in the subway system
3. All kinds of storage systems for storage battery, such as:
Between the battery and the sine / square wave converter
Between storage battery and energy storage inverter

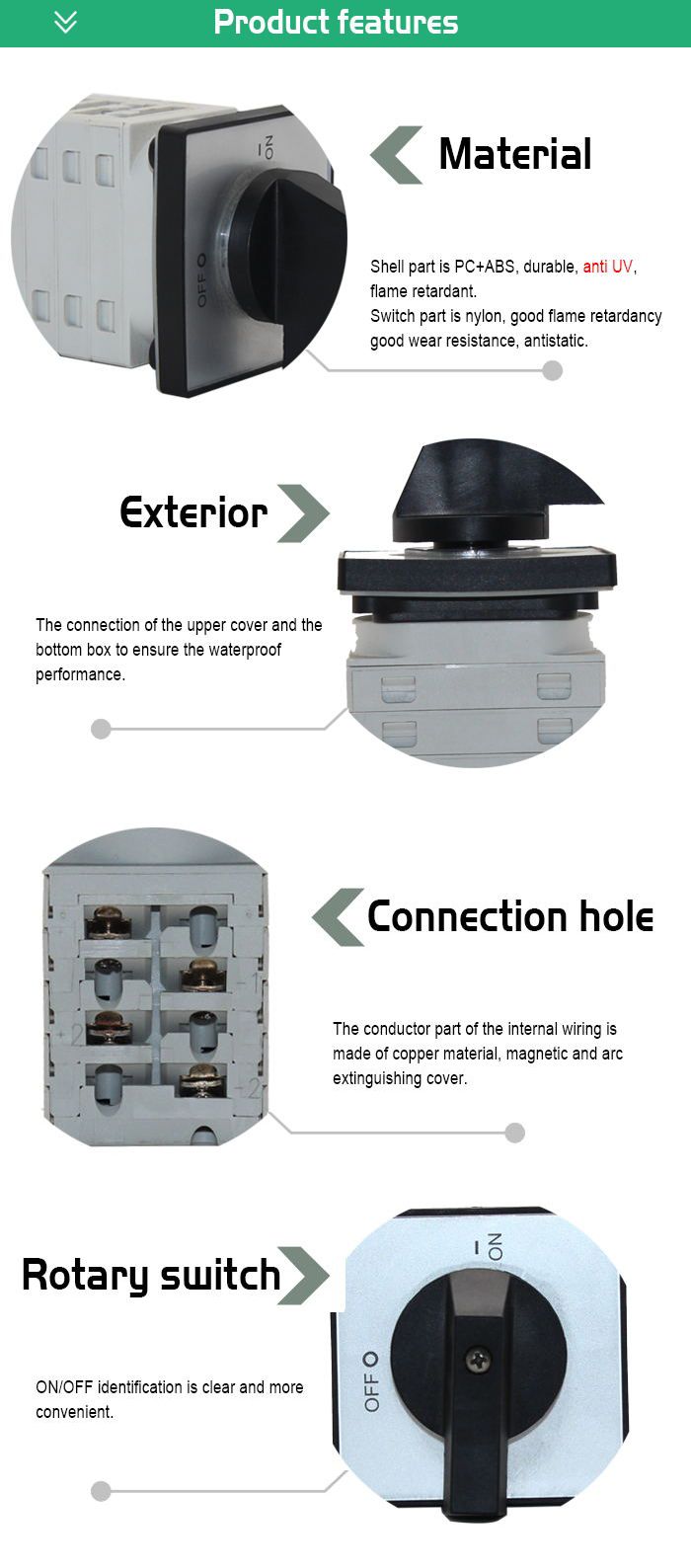

4. All kinds of DC or similar DC motor load, DC lighting, home appliance loadDC Isolator Switch Features:1. Panel Mounting&Din Rail installation
2. Magnetic and arc extinguishing cover
3. Flammability rating: UL94V-0
4. Rated Voltage up to 1500VDCDC Isolator Switch Parameters:| Technical parameters | | | Model | FDIS-32 |
| Rated insulation voltage | Ui | | V | 1500 |
| Rated heating current | Ithe | | A | 32 |
| Rated impulse withstand voltage | Uimp | | V | 8000 |
| Rated short-time withstand current(1s) | Icw | 2,4 | A | 1000 |
| 2H | A | 1700 |
| Rated short-circuit making capacity | Icm | 2,4 | A | 1000 |
| 2H | A | 1700 |
| Rated short-circuit current | Icc | | A | 5000 |
| Mechanical life | | | | 10000 |
| DC poles | | | | 2 or 4 |
| Operating temperature | | | ºC | -25 to +70 |
| Storage temperature | | | ºC | -40 to +70 |
| Class of pollution | | | | 2 |
Packaging & ShippingDC Isolator Switch Package:Standard export carton packing DC Isolator Switch Delivery Time:
3-15 days after confirming order,detail delivery date should be decided according to production season and order quantity.
DC Isolator Switch Shipping:
1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
YUEQING FEEO ELECTRIC CO.,LTD.
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
FAQ
Q: If I'm interested in your DC Isolator Switch when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.
Q:Can I get a sample before the order because I really don't how is your DC Isolator Switch quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer free sample service!Please send the enquiry to us and get the free sample!
Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 15days.
Q:How's the warranty period for your Inverter?
A:We offer one year warranty for our customer.
