| Prod Model: |
6-CNJ-250 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
520*269*220 mm |
| Weight: |
69kg |
| Big Capacity: |
250ah |
| Maintaince Free: |
Yes, No Need to Add Water |
| Terminal: |
Cable |
| Type: |
Lead-Acid Batteries |
| Usage: |
Lighting |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Rechargeable: |
Chargeable |
Product Description
size: 520*269*220 mm
total hight: 245
Weight: 69Kg
Design Life:8 years
Cover Material: ABS Engineering Plastic
Packaging Details:Carton and Polywood Case
Special Certificate for Shipping:Safty Transport Testing Report
Export Markets:Global
Additional Info.
Packing:Polywood Case
Standard:CE, ROHS, TUV, SGS
Origin:Jiangsu, China
HS Code:8507200000
Production Capacity: 2gkwh Each Year
Product Description
Superiority:
1) export since 1990
2) better recovery ability after over charging
3) 80%DOD 869 times
4) work 2years longer than other companies beacause of unique formulas
5) passed TUV SGS CE 6)MSDS report helps reducing 30% shipping cost

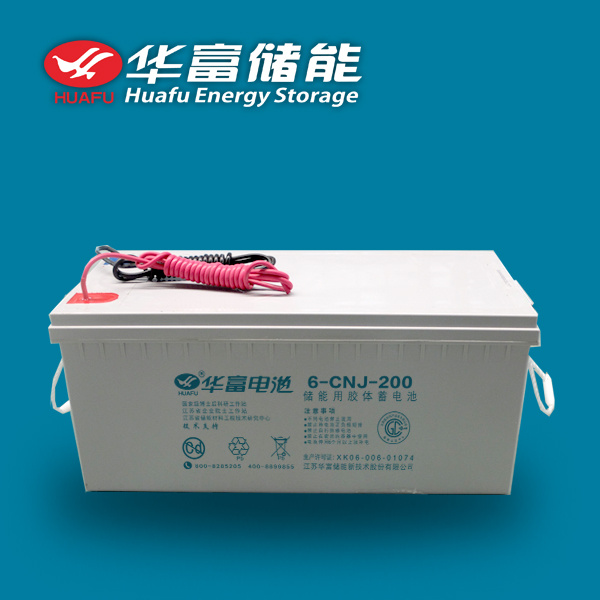

Maintenance Free Deep Cycle 12v 250AH Battery
Summary
CNJ series is specially designed for frequent cyclic performance. With thicker plates, special nano-gelled material and addictives as well as updated safety valve regulated technology, the CNJ energy storage series has excellent performance for high/lower temperature stability and lower current/power discharge application. Besides, unique formulas ensure the battery can be recharged easily to a normal level, and longer service life.
Product Features
1. Voltage class: 12V/6V
2. Float charge voltage: 13.5V-13.8V
3. Equalized charge voltage: 14.4V-14.7V
4. Long working life: 13-15years
5. Low self-discharge rate: ≤3%/month
6. High sealed reaction efficiency: ≥99%
7. Widen operation temperature rang:-30ºC~55ºC
8. Electrolyte: patented formula and the main component of nano gelled imported from German; has the consistency and appearance of petroleum jelly.
9. Grid: radioactive grid structure, lasted grid alloy (lead-tin alloy) with patented design, greater ability of anti-corrosion
10. Plate:thicker, pasted flat type with patent formula ensure stronger ability to recover from deep discharging
11. Separator: updated long and superfine fiber separator with higher absorptive and lower resistance
12.Terminal: two or more types terminals are convenient for selection
13. Safety valve: sensitive operates pressure and reliable equipped with explosion-proof arrester and acid filter
14. Green solution: environmental protection such as cadmium-free, non-spillable
Model | 12V 250AH |
| Max.Discharge Current | 30I10A (3min) |
| Self-Discharge(25°C) | <3%/month |
| Warranty | 4 years |
| Designed life | 8 years |
| Using Temperature | Discharge: -45°C~50°C |
| Charge: -20°C~45°C |
| Storage: -30°C~40°C |
| Recommended Using Temperature | 15°C~30°C |
| Charge Voltage (25°C) | Float Charge: 13.5V-13.8V |
| Average Charge: 14.4V-14.7V |
| Max.Charge Current | ≤0.25C10 |
| Charge Mode(25°C) | Float Charge:13.65±0.15V/Cell |
| Temperature Compensation Coefficient :±18 mV/Cell°C |
| Cycle Charge:14.7±0.3V/Cell |
| Temperature Compensation Coefficient: ±30 mV/Cell°C |
| Cover Material | ABS Engineering Plastic |
| Cycle life | 105 % @ 40°C |
| 85 % @ 0°C |
| 60 % @ -20°C |
| | 100%DOD 572 times |
| DOD cycle | 50%DOD 1485 times |
| | 30%DOD 2406 times |
Applications for Deep Cycle Solar Gel Battery
1. Photovoltaic/wind energy system
2. UPS/EPS
3. Light electric power supply system
4. Small power station system
5. Solar energy system in extremely cold or hot areas
Compliant standards
IEC60896-2-1995
TD/T 799-2010
GB/T 19638.2-2005
GB/T22473-2008
YD/T1360-2005
JISC8704-2:1999
Passed ISO9001.ISO14001, GB/T28001-2001, CE, TLC, CGC certificates
About Packing
OEM service is provided
Huafu High Technology Energy Storage Co., Ltd is a leader in battery industry for energy storage in China, manufacturer ranks NO. 1 in sales of GEL battery in Chinses market, with more than 20 years experience in producing and exporting environmental friendly Rechargeable Valve Regulated Lead Acid (VRLA) Battery, AGM Sealed Lead Acid (SLA) Batteries, Deep cycle Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, Specialty batteries for plateaus, OPzV Battery, OPzS Batteries, Telecom Batteries, Lead Carbon, Lithium batteries.
Established in 1990, located in Gaoyou Industrical Park of 180000 square meters in Jiangsu, China. Today, Huafu has nearly 200 full-time R&D personnel, nearly 100 part-time R&D personnel, has built a national post-doctoral workstaions, technology research institution for energy storage materials. With International advanced automatic equipment and excellent producing process, Huafu produces an annual capacity of approximately 4, 000, 000kVAh.
Lead battery & Lithium Battery are our major prodcuts: Classify our lead battery into Energy Storage Battery Series, Back-Up Battery, EV Battery. The Energy Storage Battery Series includes 2V and 12V AMG lead acid battery, AGM GEL Battery, Pure Gel Battery, Solar Deep Cycle battery, Lead-Carbon battery, Heat-tolerant battery, Tubular OPZV battery, Tubular OPZS battery. The Back-up battery series includes 2V and 12V VRLA Battery, Telecom Front terminal battery. Our EV battery includes 6V, 8V, 12V battery for electric vehicle, electric forklift, etc. Lithium battery includes LiFePO4, Ternary lithium power battery.
In the passed 20 years, HUAFU staffs has been insisted on gaining the believe of customers by our quality. We have successfully got the certificates of ISO9001 quality management system, ISO14001 environment management system, and passed the audit of OHSAS 18001. Also, we have received various product quality recognition, like UK's IEC60896.21/22. IEC61427, CE authentication of the European Union, UL recognition of the USA, Soncap certification for Nigeria and Golden Sunflower. RoHS, SGS, etc.
HUAFU ranks NO. 1 in sales of GEL battery in Chinese market. We has been cooperating with China Mobile Limited & Unicom Limited, ZTE Corporation, China Tower, Huawei Technologies, Emerson. Export from 10 years ago, near to Shanghai Port, Our long-term business ship has been built with Philips. Our products has also sold to USA, Brazil, Russia, Iran, Korea, Thailand, South Africa, Nigeria, Italy, Greece, Germany, Spain, etc.
Best Quality, Good Service, In time Support, Competitive Price. Choose Us!
