Maintenance Free SLA Battery 12V 80ah

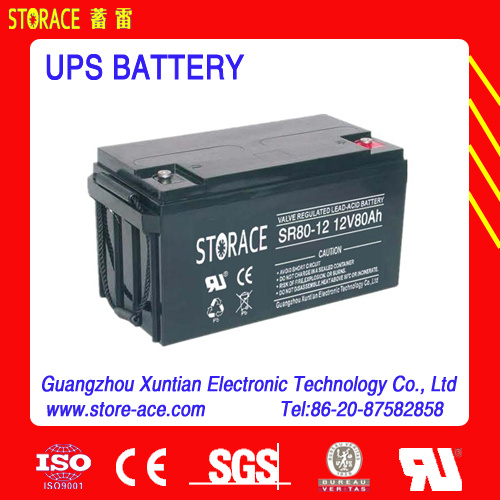

Name: Maintenance Free SLA Battery 12V 80ah
Brand: all-electronics-online.com
SKU: 701840365
Availability: InStock
Rating: 4.8 (32 reviews)

Price:	US $ 65-99/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR80-12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	260169211mm
Weight:	23.40kg
Charging Current:	<0.3c
Sealing:	Glue Sealing
Color:	Black and Dark Gery
Cell:	6
Terminal Type:	Bolt and Nut
Battery Case:	ABS
Safety:	Explosion-Proof
Plate:	Flat Plate
Type:	Lead-Acid Batteries
Usage:	Lighting
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Rechargeable:	Chargeable
Shape:	Rectangle

Product Description

We produce VRLA/SLA Battery, Industrial Battery, 12V/ 6V Battery, Rechargeable Battery, Gel Battery, Deep Cycle Battery, sealed lead acid battery and so on.

Maintenance free battery SR80-12 SLA battery 12V 80ah

Valve regulated lead acid series UPS batteries are designed with AGM (Absorbent Glass Mat) technology, high performance plates and electrolyte to gain extra power output for common power backup system applications widely used in the field of UPS, Emergency Lighting System.

Battery Structure
1. Container/Cover: Made of UL94HB and LU 94V-0 ABS Plastic
2. Negative Plates: Use the special PbCa alloy grids, optimize the recombination efficiency and less gassing.
3. Separator: Import high quality AGM separator.
4. Postive Plates: PbCa grids minimize corrosion and prolong life.
5. Terminal post: Cooper material with maximum conductivity, enhance the high current rapidly.
6. Vent Valve: Allows the release of excess gas automatically for safety.

Application
UPS, solar systems, control systems, power systems, wind energy systems, telecommunication/communication systems & etc.

Characteristics
1. Excellent safety performance.
2. Good dischargeing performance.
3. Good stock-proof performance.
4. Good impact-proof performance.
5. Good resistance to overdischarge.
6. Good resistance to overcharge.
7. Good resistance to high current.

Data Sheet

Capacity 77° F(25º C)	20 hours rate(4.2A 10.8V)	84Ah
	10 hours rate(8A 10.5V)	80Ah
	5 hours rate(13.8A 10.5V)	69Ah
	1 hour rate(50A 9.6V)	50Ah
Internal Resistance	Full charged battery 77° F(25º C): 7mΩ

Capacity affected by Temperature (10 hour rate)	104° F(40º C)	102%
	77° F(25º C)	100%
	32° F(10º C)	85%
	5° F(-15º C)	65%
Self-Discharge 68° F(20º C)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	60%
Max discharge current77° F(25º C): 800A(5S)
Charge (Constant Voltage)	Float: 13.6 to 13.8V/77° F/(25º C)
	Cycle: 14.4 to 14.7V/77° F/(25º C)
	Max Current: 20A
