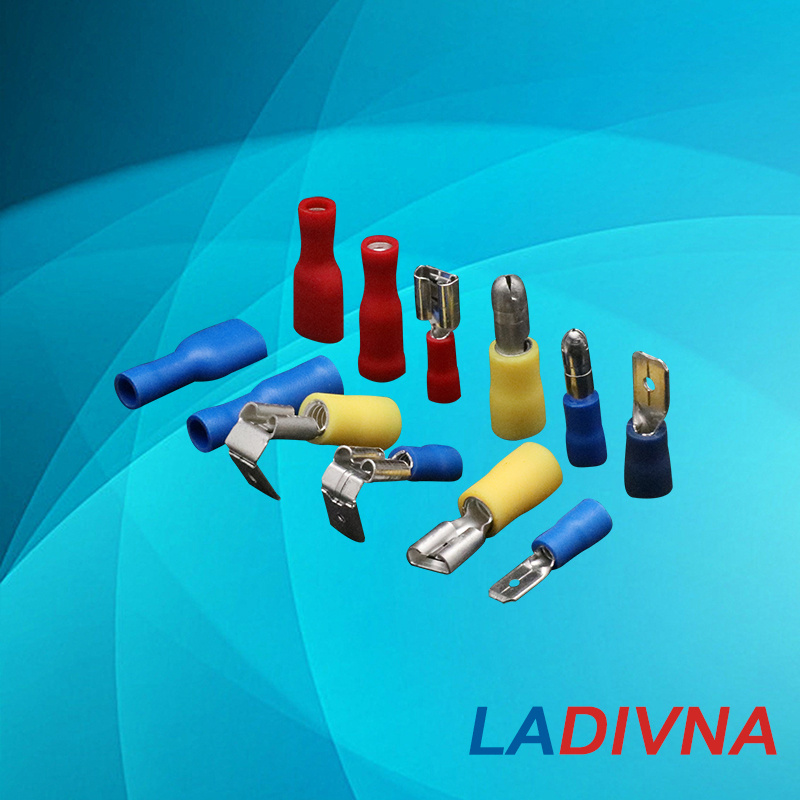

Male Pre-Insulating Terminal (MDD)

Name: Male Pre-Insulating Terminal (MDD)
Brand: all-electronics-online.com
SKU: 687583595
Availability: InStock
Rating: 4.7 (30 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	2000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper

Product Description

Male Pre-Insulating Joint (MDD):
Cable size: 0.5~1.5mm2(A. W. G22~16)
1.5~2.5mm2(A. W. G16~14)
4~6mm2(A. W. G12~10)
Max current: Imax=10A~24A
Material: Copper

Item No	Nema	Dimension(mm)
Item No	tad(mm)	B	d	D	L	H	Color
MDD1.25-110(5)	0.5x2.8	2.8	1.7	4.3	17.7	10	Red
MDD1.25-110(8)	0.8x2.8	2.8	1.7	4.3	17.7	10
MDD1.25-110(5)	0.5x4.75	4.75	1.7	4.3	20	10
MDD1.25-110(8)	0.8x4.75	4.75	1.7	4.3	20	10
MDD1.25-250	0.8x6.35	6.35	1.7	4.3	21	10
Cable size: 1.5~2.5mm 2 (A. W. G. 16~14) Max current: Imax=15A Material: copper
	Nema	Dimension(mm)
Item No	tad(mm)	B	d	D	L	H	Color
MDD2-187(5)	0.5x4.75	4.75	2.3	4.3	20	10	Blue
MDD2-187(8)	0.8x4.75	4.75	2.3	4.3	20	10
MDD2-250	0.8x6.35	6.35	2.3	4.3	20	10
Cable size: 4~6mm 2 (A. W. G. 12~10) Max current: Imax=24A Material: copper
	Nema	Dimension(mm)
Item No	tad(mm)	B	d	D	L	H	Color
MDD5.5-250	0.8x6.35	6.35	3.4	5.7	25	13	Yellow
