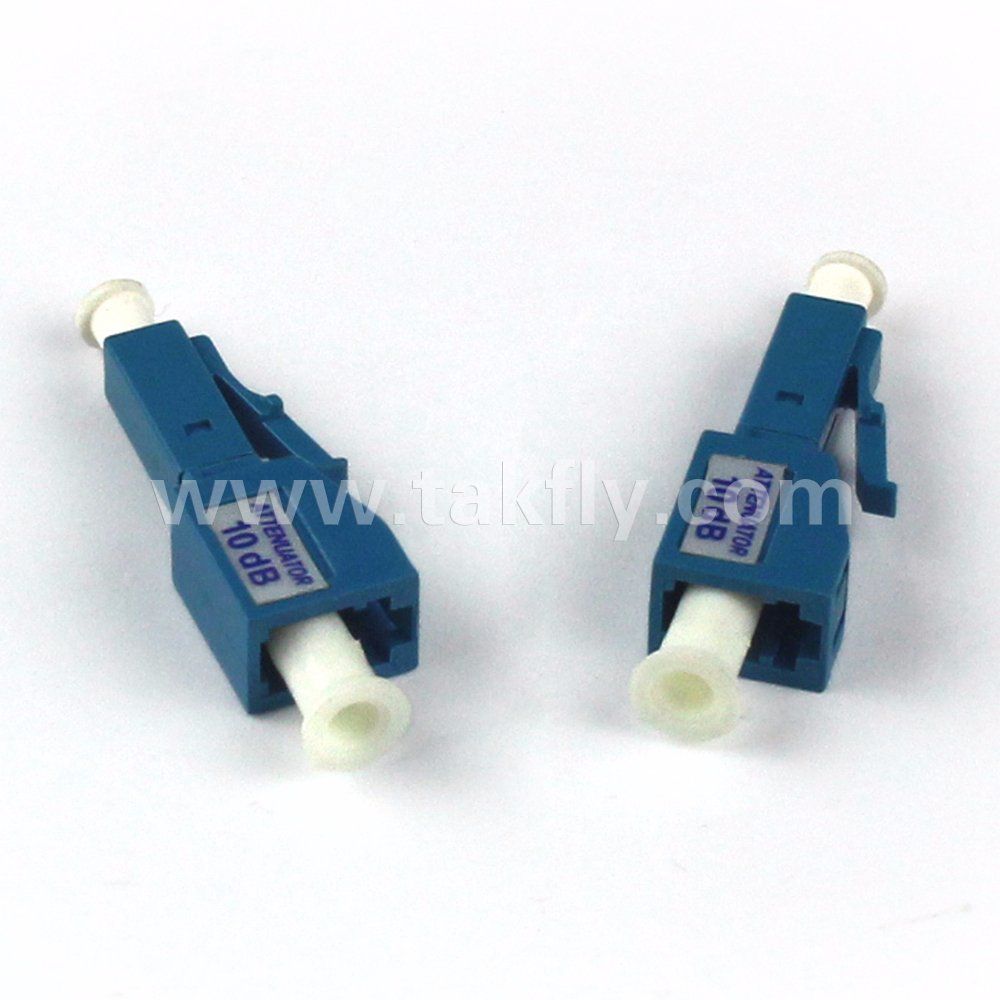

Takfly Communications Co., Ltd. >> (male to female) LC Optical Attenuator

(male to female) LC Optical Attenuator

(male to female) LC Optical Attenuator
Price: US $ 2.5/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: optical Attenuator
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Df
Usege: Upc/APC
Return Loss: More Than 40dB
Attenuation Tolerance: 0.5dB
Ateenuation Value: 0-20dB
Operation Wavelength: 1310nm and 1550nm
Type: Sc, FC, St, LC or Other Type
Working Temperature: -25;C~+75c
Storage Temperature: -40c~+ 85c
Delivery Time: 3working Days After Payment Recieved
Transmission Medium: Single-Mode
Structure: LC
Number Of Cores: Single-Core
Ferrule Endface: PC(',UPC)

Product Description

(male to female) LC Fixed Type optical  Attenuator

Warranty :
* Responsible for after-sales service
* 6 monthes
Specifications:

* High durability
* Attenuation levels from 1dB to 30dB
* Metal-ion doped fiber
* Compliance with TIA/IEA, IEC, RoHS

Feature:

* EDFA, DWDM, Long-haul
* Wide-Area networks
* Telecommunication networks
* Gigabit applications (ATM, Ethernet)

Specification:


Item

Unit

Parameter

Operating Wavelength

Nm

1310-1550

Attenuation Range

dB

1-10dB(1dB step),15,20dB

Return Loss

dB

PC:≥50   UPC:≥55   APC:≥60

Attenuation Tolerance

dB

≤1.0(11-30dB)

Working Temperature

°C

-25~+75

Storage Temperature

°C

-40~+85


Ordering information:


* Type: Adapter (Female to Female), Connector (Male to Female) , In-line type, and variable type for your choice.
* Attenuation Range: 1-30dB
* Housing color: MM beige, SM UPC Blue, SM APC Green
* LC,SC, FC,ST, etc attenuator for your requests.
* UPC and APC option















Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
