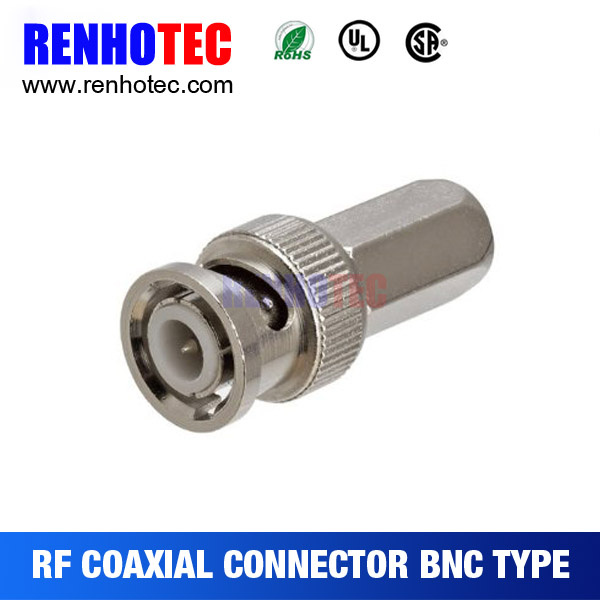

Male Twist on Cable Coaxial Connector BNC Plug for RG6 Rg59

Name: Male Twist on Cable Coaxial Connector BNC Plug for RG6 Rg59
Brand: all-electronics-online.com
SKU: 748095635
Availability: InStock
Rating: 5 (108 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RHT-610 BNC connector
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Business Type:	Manufacturer
Connector Type:	BNC Connector
Orientation:	Straight
Impedance:	50ohm
Body Material:	Zinc Alloy/Brass
Plating:	Nickel
Lead Time:	7-10 Days
RoHS Compliant:	RoHS I Compliant
Service:	OEM&ODM
Type:	Generally Coaxial Connector
Coupling Mechanism:	Double Bayonet Plug-in
Brand:	Renhotec

Product Description

The BNC connectors are for low power, quick connector/disconnector application using a bayonet type coupling mechanism. There are 50ohm and 75 ohm about the Characteristic impedance. They are widely use in electronic instrument, communication equipment, internet system, microwave testing.

Material and finish:

Shell	Zinc alloy gold plated
Contact pin	Brass gold plated
Socket	Beryllium gold plated
Elastic contact	Beryllium gold plated
Insulator	PTFE
Crimp ferrule	Copper alloy nickel or gold plated
O-ring	6146 silastic

Major technical chracterstics:

Impedance	50/75 Ω Nominal
Frequency Range	0-4 GHz with low reflection
Voltage Rating	500 volts peak
Dielectric Withstanding Voltage	1, 500 volts rms
VSWR straight	1.3 max 0-4 GHz
right angle	1.35 max 0-4 GHz
Center contact Resistance	1.5 mΩ
Outer contact Resistance	0.2 mΩ

Applications:
· Antennas
· Automotive
· Cable Modems
· Computers/LANs
· Medical Equipment
· Radios
· Telecom

Features:
1. Excellent performance and competitive prie
2. Sample confirm first before mass production
3 ISO 9001: 2008 certificated
4 ROHS compliant
5 short lead time

RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.

Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.

Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.

Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.

Our managing principles:Good quality, loyalty and common prosperity.
