Manorshi 14*10mm Waterproof Ultrasonic Sensor with Pins for Car Parking

Name: Manorshi 14*10mm Waterproof Ultrasonic Sensor with Pins for Car Parking
Brand: all-electronics-online.com
SKU: 835383145
Availability: InStock
Rating: 4.7 (132 reviews)

Price:	US $ 0.35-0.8/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSW-A1440H10TR
Function:	Transmitting or Receiving
Construction:	Water Proof
Terminal:	Pin
Center Frequency:	40±1.0kHz
Transmitting Sound Pressure Level:	Min.100(30cm/10vrms Sine Wave) 0dB=0.0002u Bar

Product Description

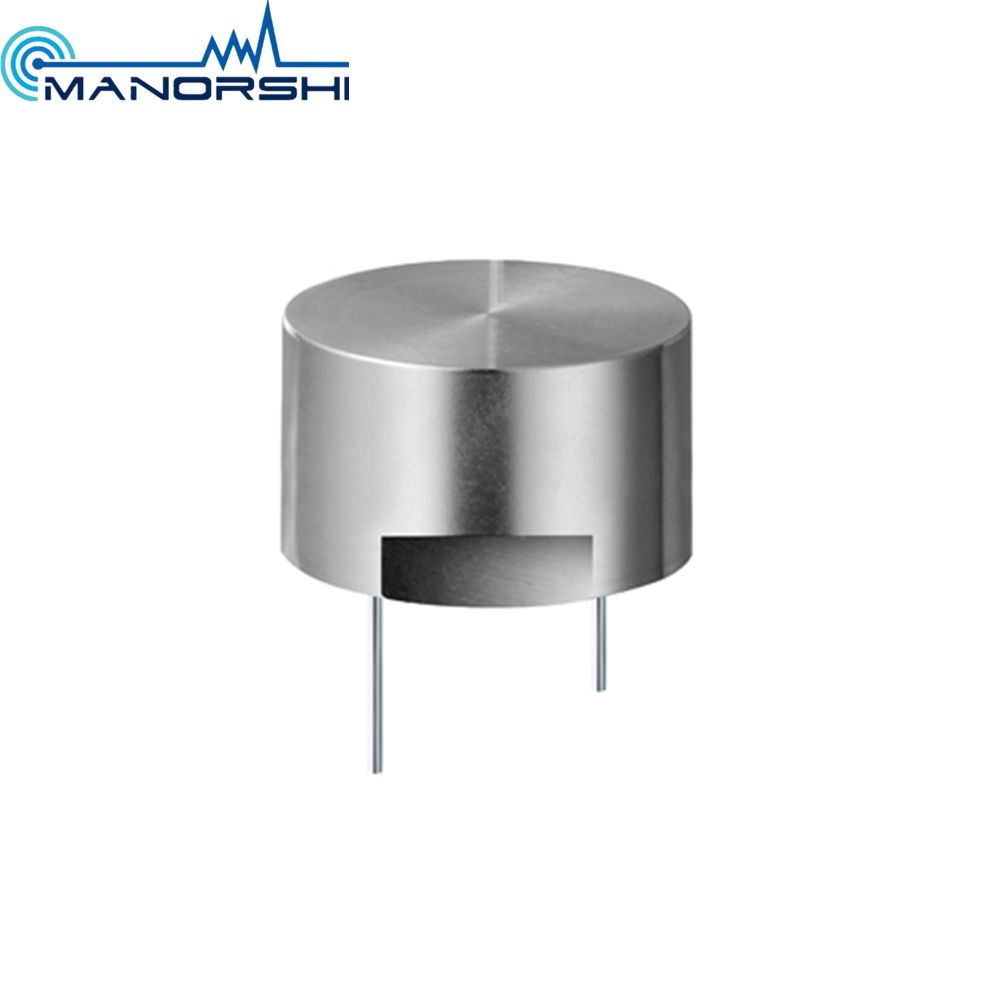

Manorshi 14*10mm waterproof ultrasonic sensor with pins for car parking

Specification

Item	Unit	Specification
Function		Transmitting or receiving
Construction		Water Proof
Terminal		PIN
Center Frequency	Hz	40±1.0k
Transmitting Sound Pressure Level	dB	Min.100(30cm/10Vrms Sine Wave) 0dB=0.0002u bar
Receive Sensitive	dB	Min.-74dB/V/μbar(at 40Khz 0dB=1v/u bar)
Max. Driving Voltage(cont.)	Vp-p	150
Capacitance	PF	1800±20%at 1KH_Z
Operating Tem.Range	ºC	-35 to 80
Storage Temerature	ºC	-35 to 80
Housing Material		Aluminum

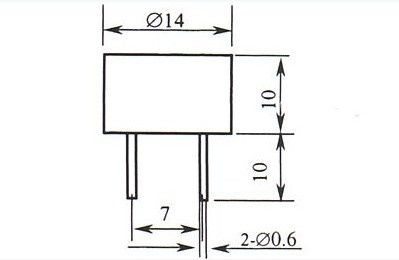

Dimension



Application



Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Trade show & Certification

FAQ

1.What's your MOQ?

MOQ depends of different series of products, pls contact with us.

2.Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.

3.How about freight fee?

We cooperate with different express companies, enjoy the lowest discount.

4.Do you support after sales service?

The professional after-sales service team will solve all problems for you.

Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
