Manorshi Cheap Tr Ultrasonic Sensor Distance 10 Meters with Pin (MSO-AT1240H09R)

Name: Manorshi Cheap Tr Ultrasonic Sensor Distance 10 Meters with Pin (MSO-AT1240H09R)
Brand: all-electronics-online.com
SKU: 637226355
Availability: InStock
Rating: 4.9 (114 reviews)

Price:	US $ 0.25-0.5/Piece
Trade Terms:	CFR
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSO-AT1240H09R
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Cheap Tr Ultrasonic Sensor Distance 10 Meter
Center Frequency:	40±1.0kHz
Spl:	≥115dB
Directivity:	70°
Capacitance:	2100±20%PF
Housing Material:	Aluminum or Plastic
Driving Voltage:	≤30vrms
Color:	Black
RoHS:	Yes

Product Description

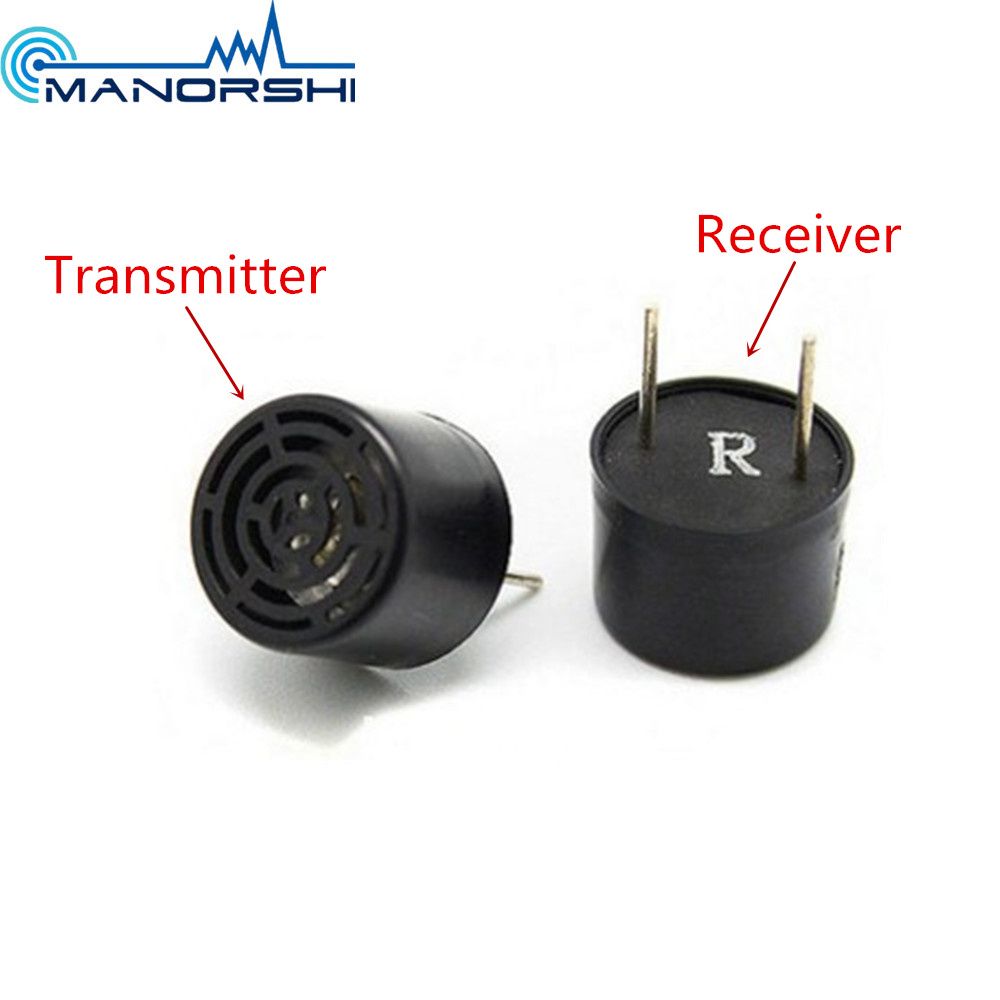

manorshi cheap TR ultrasonic sensor distance 10 meters with pin (MSO-AT1240H09R)

Specification

NO.	Item	Specification
1	Center frequency	40.0±1.0KHz
2	Sensitivity	≥-65dB
3	Sound Pressure Level	≥115dB
4	Bandwidt	2.0KHz
5	Beam Angle	70° typical
6	Capacitance	2100±20%pF
7	Max. Driving Voltage	30Vrms
8	Operating temperature	-20~+70ºC
9	Storage temperature	-30~+80ºC

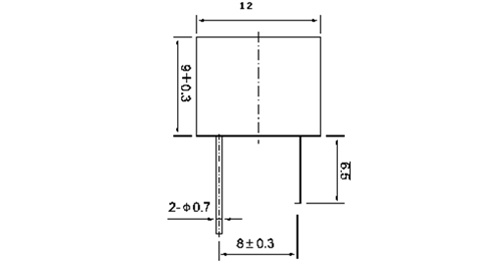

Dimension

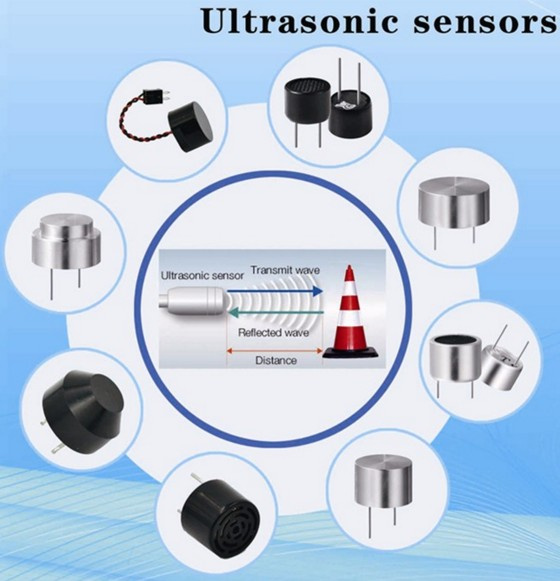

Application


Why choose us




About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.
Trade show & Certification

FAQ

1.What's your MOQ?

MOQ depends of different series of products, pls contact with us.

2.Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.

3.How about freight fee?

We cooperate with different express companies, enjoy the lowest discount.

4.Do you support after sales service?

The professional after-sales service team will solve all problems for you.

Manorshi Electronics Co., Ltd. is a professional manufacturers of acoustic components in China. We can supply all kinds of acoustic and security components such as Piezo Ceramic Elements, Piezo Buzzers, Magnetic Buzzers, SMD buzzers, Mechanical buzzers, Sound Alarms, We also make Ultrasonic sensors, Distance measuring sensors, Which have Water proof type and Open type, And other related products such as Speakers.

Our products are widely used in electric appliances, computers, cordless phones, alarm systems and parking systems. Backed by professional engineers and advanced equipment, we assure the best quality products, competitive prices, and fast delivery.

If you have any enquiry about our products, Pls contact us now.
