Manual Automatic 220V AC Voltage Stabilizer DC Power Single Phase Regulator

Name: Manual Automatic 220V AC Voltage Stabilizer DC Power Single Phase Regulator
Brand: all-electronics-online.com
SKU: 819145505
Availability: InStock
Rating: 4.5 (108 reviews)

Price:	US $ 95.25-100.11/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DBW
Export Market:	World
Quality:	AAA
Current Type:	AC
Phase:	Single Phase
Usage:	DBW
Frequency:	High Frequency
Brand:	Chana/OEM

Product Description

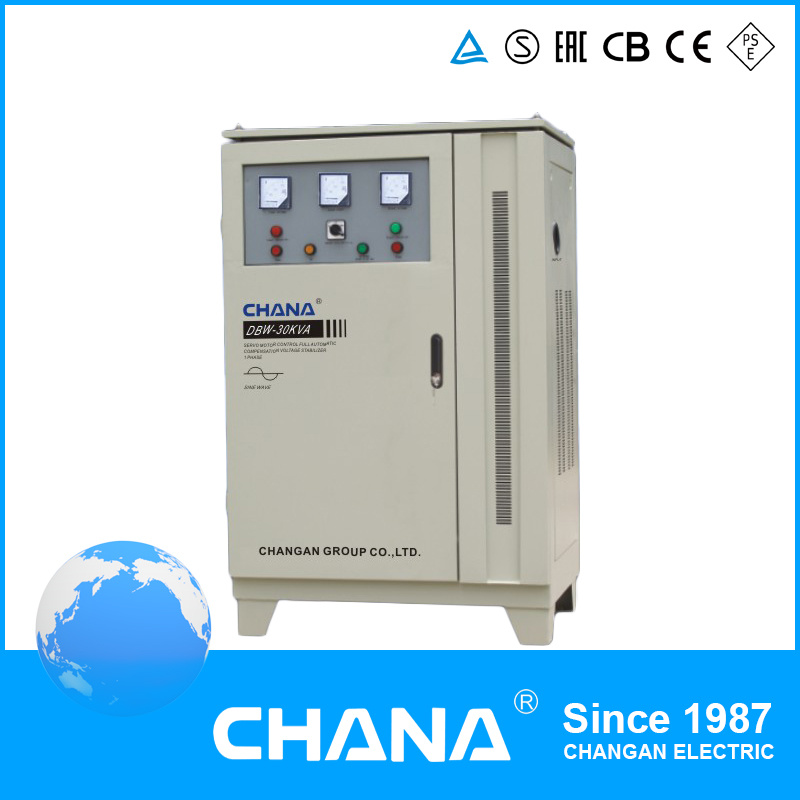

Full Automatic Compensation Voltage Regulator/Stabilizer

1. Application

It is widely used in the place with large electricity demands such asfactories, post&Communication, schools, hotel etc. Acted as whole voltage-stabilizing or single voltage -stabilizing.

2. Feature

This series large power voltage stabilizer is an energy-saving new product developed by our company by absorting the advanced technology of WesternEurope. It is provided with two systems of manual/automatic dual control, direct output and stabilizing output, with the functions of over/under-voltage protection, delay and error protection etc, it is reliable and suitable for any load.

3. Main Technical Data

Phase no.: Single-phase
Input voltage: 220V± 20%(176~264V)
Output voltage: 220V± 2~5% adjustable
Frequency: 50Hz/60Hz
Efficiency: ≥ 95%
Response time: ≤ 1.5S (against 10% input voltage deviation)
Ambient temperature: -10 º C ~+40º C
Insulation resistance: ≥ 2MΩ
Waveform distortion: Non additional waveform distortion
Protection functions: Over-voltage, over-current, phase shortage,
Phase-sequence and mechanical failure.
Over-load capacity: 1min. At the rated current of 2 times.
Electricity-resistance strength: Power frequency sinusoidal is 2000VAC without
Breakdown and flashover when it lasts 1min.

4. Specification

Model Product	Nos.&Kinds of Pkg	Packages Size(mm)
DBW-30KVA	1Unit/Case	6280160
DBW-40KVA	1Unit/Case	76100180
DBW-50KVA	1Unit/Case	76100180
DBW-60KVA	1Unit/Case	76100180
DBW-70KVA	1Unit/Case	76100180
DBW-80KVA	1Unit/Case	10095200
DBW-100KVA	1Unit/Case	10095200
DBW-120KVA	1Unit/Case	10095200
DBW-150KVA	1Unit/Case	11595210
DBW-180KVA	1Unit/Case	11595210
DBW-200KVA	1Unit/Case	11595210

5. FAQ(Packaging & shipping)

Q1. What's the payment term?
A.We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.

Q2. How's the delivery time ?
A.Usually it will take about 25 days for production

Q3. Tell me the standard of package?
A.Normally are cartons, but also we can pack it according to your requirement.

Q4. Could you offer form a or c/o ?
A.It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q5. Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do oem

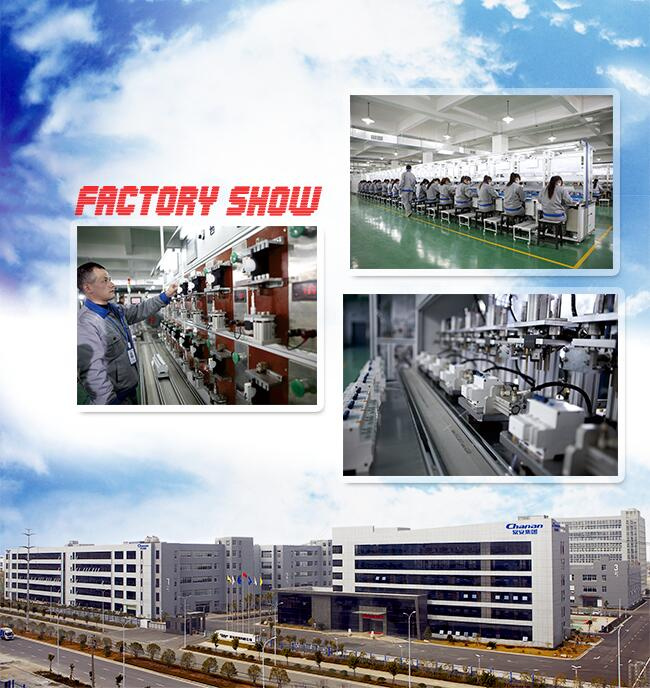

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
