| Prod Model: |
VT310N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Is Customized: |
Yes |
| Dimension: |
110*80*30mm |
| Input Voltage: |
DC 9V~36V/1.5A |
| Oil Leaking/Refuel Alarm: |
Yes |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Screen Size: |
No |
| Chip: |
Ublox7 |
| Brand: |
Topshine |
| Certification: |
CE+RoHS |
Product Description
VT310N is a professional level GPS vehicle tracker focus on positioning and vehicle security. VT310N can support detecting engine off/on, controlling door/windows/engine, can equip fuel consumption detection, temperature detection, geo-fencing, SOS alert, over speed alert, with build-in motion sensor for power saving, with build-in memory to store GPS position info when no GPS signal and resend automatically when GPS signal recover. It has abundant ports for additional applications and tracking solutions especially suitable for fleet management.
Functions & Features:
* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 950 mAh battery
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening (optional)
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; View mileage data via GPS web-based tracking centre system
* Door open/close status detecting
* Door open/close control
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26, 000+ waypoints even no GPRS signal
* I/O: 5 Inputs, 5 Outputs, 2 Analog Inputs.
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Accident alarm (need crash sensor support) (optional)
* Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Temperature & Fuel sensor detecting/monitoring, (optional)
Application:
Suit for Vehicle security / Fleet management
| Technical Parameters: |
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 850mAh |
| Dimension | 104mm x 62mm x 24mm |
| Installation Dimension | 104mm x 83mm x 24mm |
| Weight | 150g |
| Operating temperature | -20° to 65° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM 900/1800/1900Mhz or GSM 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
| Flash Memory | 4MB |
| Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs. |

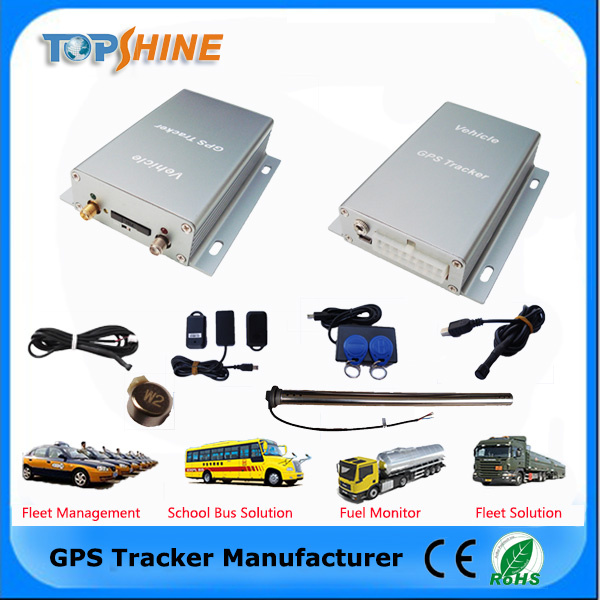

Complete Set:
Standard Package:
Main unit
GSM antenna
GPS antenna
Wire harness
Relay
Optional Accessories:
Special USB cable
Fuel sensor
Microphone
Active RFID kit
Passive RFID kit
| Packing Measures: |
|
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.65 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
