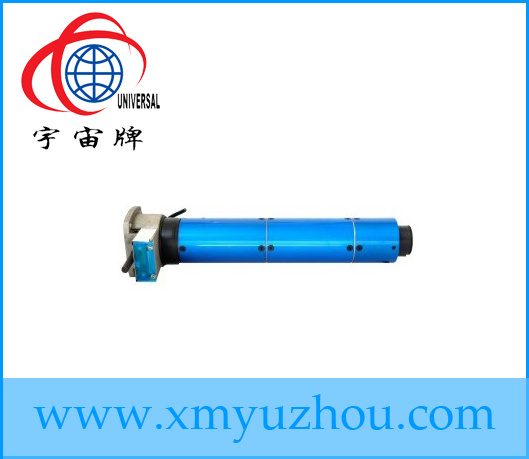

Manual Gear Tubular Motor for Projection Screen (YZ92M1)

Name: Manual Gear Tubular Motor for Projection Screen (YZ92M1)
Brand: all-electronics-online.com
SKU: 715328785
Availability: InStock
Rating: 4.6 (83 reviews)

Price:	US $ 120/Set
Trade Terms:	FOB
Min Order:	100/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YZ92M1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
The Theory:	Gear Tubular Motor
Diameter:	92mm
Type:	Manual Type
Function:	Control
Number Of Stator:	Single-Phase
Application:	Shutters & Windows
Brand:	Universal

Product Description

Gear Tubular Motor:
Type: YZ92M
Manual override type
New style
Gears type limit switch
Smaller and thinner bottom base, easier for installation.
Stable quality with attractive prices.
Ideal for rolling shutters, large garage doors for airplane, etc.

About YZ92-N -M Industrial Door Motor Series:
YZ92-N -M series tubular motors are designed by international advanced technology, with merits of Safe, Compact, Vogue and Effective, adopt side-magnetic brake system. The output torque is from 140N. M to 330N. M. They are widely used for large garage doors for airplane, roller shutters etc. All our products are CE. TUV. UL. RoHS certificated.

Functional feature:
A. Single-phase asynchronous motor;
B. High power, constant speed, big load capacity;
C. Tubular motor working time is no less than 4min;
D. Motor with mechanical limit switch, easy regulation;
E. Flexible control mode, working with Huate's controllers, single control, group control and packet control can be achieved.

Motor Model	Torque(N.m)	Rotating(rpm)	Rated Voltage(V)	Rated Frequency(Hz)	Rated Power(W)	Rated Current(A)	Number of Tums(tum)	Protection Index(IP)	Running Time(min)	Net Weight(Kg)
YZ92-140M1	140	12	230	50	580	2.6	16	IP44	>=4	12
YZ92-180M1	180	12	230	50	626	2.8	16	IP44	>=4	12
YZ92-230M1	230	12	230	50	830	3.6	16	IP44	>=4	12
YZ92-300M1	300	8	230	50	880	3.8	16	IP44	>=4	13.5
YZ92-330M1	330	8	230	50	910	4	16	IP44	>=4	13.5

Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.

Main products:

Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.

Superior Service:

Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.

Quality Assurance:

We have QC department to make inspect every step of production, so we can make sure good quality products for customers.

Sample Order:

Sample order is available, normally, it takes about 7 days to make new samples.

Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
