Shanghai Beok Controls Co., Ltd. >> Manual Operate 220V Room Heating Thermostat for HVAC System

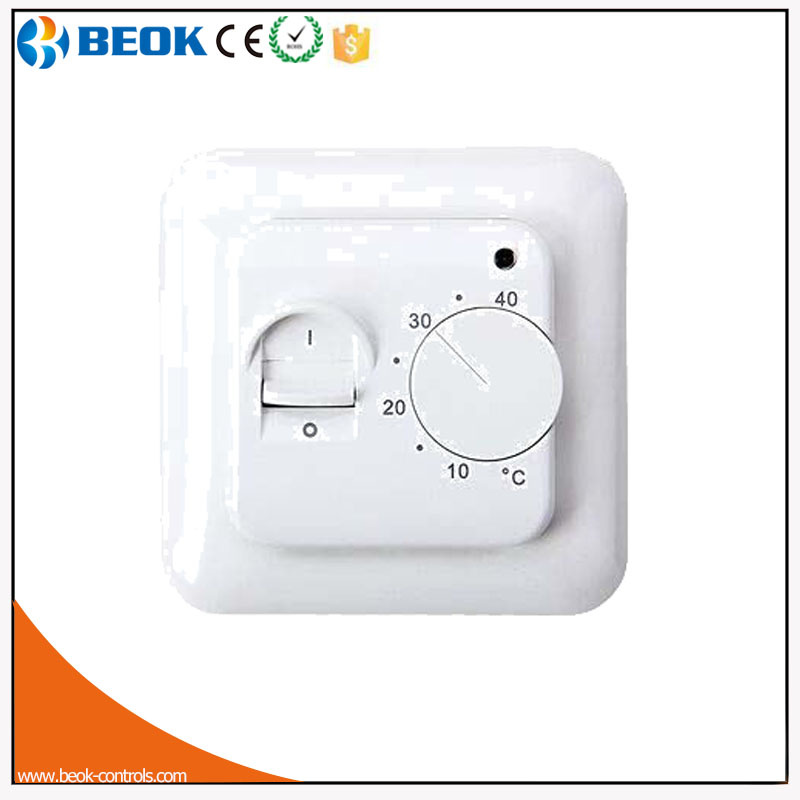

Manual Operate 220V Room Heating Thermostat for HVAC System

Manual Operate 220V Room Heating Thermostat for HVAC System
Price: US $ 6-11/Piece
Min Order: 300/Piece
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: TOM20-EP
Feature: 3 Sensors Mode Optional
Application: Home
Material: Plastic
Warranty: 2.5years

Product Description



16A Mechanical Room Thermostat For Floor Heating




Product Summary




TOM20 mechanical electric thermostats are widely ued to temperature control of industrial,

commercial and domestic room in floor heating systems.





Product Technical Parameter

Working VoltageAC230V(AC110V/AC24V available)
Power Consumption5W
Switching Differential ±0.5K
Consumption<0.3W
Ambient Temperature-5~50 Celsius
Protective HousingIP20
Housing MaterialAnti-thermoplastic NTC Sensor
Floor SensorRubber-thermoplastic NTC sensor; Cable length is 3m

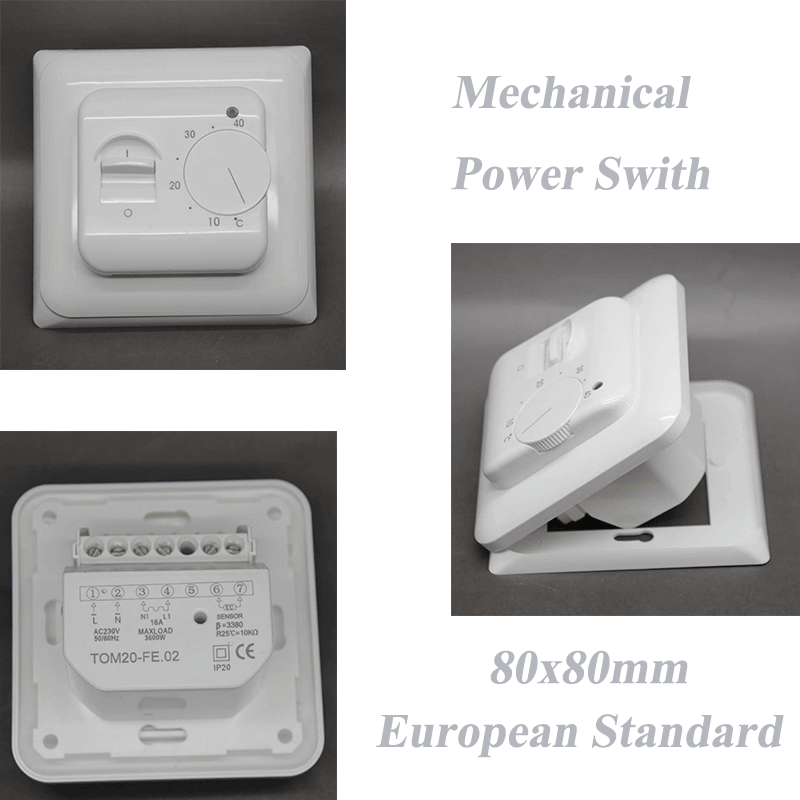

100% Real Product Photos



------------------------------------------------------------

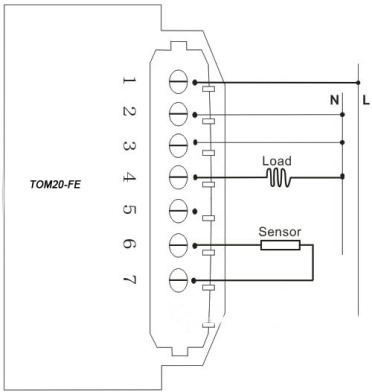

Thermostat Back Connect Diagram







Product Model Spec

ModelCurrent Loading Sensors
TOM20-FE.0216AWith external sensor
TOM20-FE.0316AWith two sensors


Shanghai Beok Controls Co., Ltd is one of the biggest HVAC designer and manufacturer in China, the factory is located in Hubei and Jiangsu Province, and Head office is in Shanghai, over 345 employees, 7-10 engineers and 15 persons for test team, 3 production line;

The products including Room Thermostat, Motorized Valves, Water Valves, Manifolds and Thermal Actuators ects. Recent years, our products be exported more and more volume to Europe, Africa, Asia, Austria Countries, our business not only go with B2B and also B2C is our mainly market, owing to our more better quality and services, we get the high reputation from the customers.

The company culture is based on the human and products quality, providing the best products with the reasonable prices, to be the most credible supplier of customers, we will come out at least 3-5 new models for every years, and keep the failure rate far below 0.3%, , we provide OEM and ODM for customer need. If you have any problems or inquiries, please do not hesitate to contact with us.

Expect to cooperate with you and welcome you to visit us any time.
