Manucature Cold Shrink Tube for Electrical Insulation

Name: Manucature Cold Shrink Tube for Electrical Insulation
Brand: all-electronics-online.com
SKU: 780198015
Availability: InStock
Rating: 4.3 (96 reviews)

Price:	US $ 1.5-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KC92
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tensile Strength:	11.6MPa
Rated Voltage:	1kv
The Hardness:	42ha
The Elongation At Break:	1013%
The Density:	1.14G/Cm3
Electrical Strength:	24kv/mm
The Tear Strength:	50.2n/mm
Application:	Insulating Varnish
Chemistry:	Inorganic Insulation
Material:	Rubber
Type:	Insulation Tube
Color:	Gray

Product Description

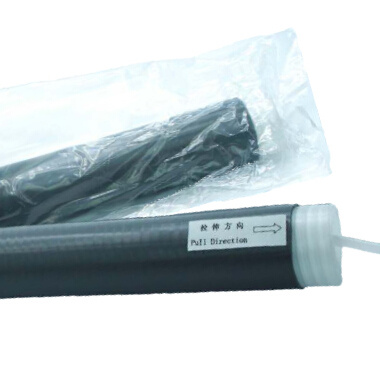

Description of KC92 Shrink Tube
KC 92 is a cold shrinkable tube made of silicone rubber which has been expanded and put up on a removable core.
Once the tube is properly placed over the connector area,the core is pulled out,and the tube shrinks tightly onto the cable jacket providing electrical and mechanical protection as well as a moisture seal of the splice or termination.
KC 92 can be used on all solid dielectric cable up to 1000 volts as well as wireless coaxial and optical fiber cables.
It resists corrosion,chemicals,ultraviolet light and ozone.
Although not required,KC92 can be combined with KC80 Rubber Mastic tape achieve an even better water seal.
Specification of KC92 Shrink Tube

Application of KC92 Shrink Tube
Primary electrical insulation and moisture sealing in splices and terminations of solid dielectric power cable up to 1000 volts
Insulating and moisture sealing of coaxial and optical fiber telecommunication cable connections
Use where superior resistance to ultraviolet light and other weathering is desired
Other moisture sealing and mechanical protection applications
