| Prod Model: |
GWB1208, GWB1302, GWB1309 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Design PCB,Wire Leads Toroidal Transform: |
High Flux Density Grain- Oriented Silicon Steel |
| UL,CE ,RoHS: |
Minature Size |
| 3200va: |
20 Ampere 50Hz |
| Diameter=88mm,Height<=42mm: |
for Electronic Control |
| Power Range: |
15va 30va 45va 50va 105va 200va 600va 1kVA |
| Enamel Wire Transformer Power: |
50va 80va 100va 300va 450va 500va 1000va 2500va |
| 10va: |
Minature Size |
| Efficiency: 75-98%: |
Diameter Is 55mm-300mm |
| D320mm,H130mm,Weight 34kg: |
5000va Transformer |
| Wire Materials: 1. Copper, Aluminum, Alu: |
Wires Raw Materials: Aluminum Instead of Copper Co |
| Application: |
Medical Equipment |
| Type: |
Toroid Core Structure |
| Phase: |
Single or Three Phase Toroidal Transformer |
| Operation Condition: |
Indoor PCB, UPS, Outdoor Swimming and Outdoor LED |
| Usage: |
Audio, Amplifier, Medical, LED Ligting, Pool |
| Winding Form: |
Insultation Tape with Class B or Class F |
| Insulating Medium: |
Class B or IP66 |
| Installation: |
Power Toroidal Transformer China |
| Magnetic Circuit Structure: |
Silicon Core or Steel |
Product Description

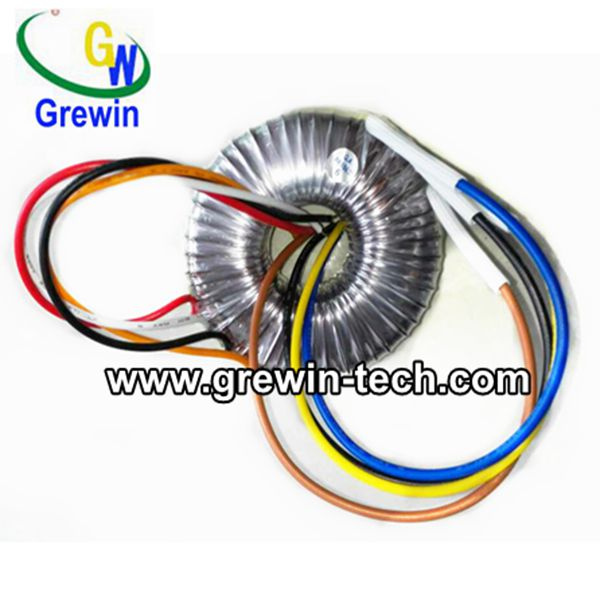

toroidal power transformer 3va 10va 50va 100va 200va 300va 380va 400va 500va 1KVA 5kva 6000VA
1.We have abtained VDE,UL,CE,ROHS,ISO9000 Approal and SGS Audit Supplier in China,We guarantee quality is the first.
A.
1. Installation:
Horizontal (non-conventional-type base plate), sunk, side type, and bridge.
2.Application:
Especially low-hum and low-dispersing construction
Low-level of induction
High-grade design casing possible
Statically shield winding and magnetical shield winding optional .
Be used widely such as audio equipment,communication,new energy areas,Electrical control,Cable TV network etc.
The Partial List of GW-B Series Toroidal Transformers with Cable and Mounting Holes:
20VA | Φ 60 | H25 | >82 | 10mA | 1.20V 0.45kgs |
| 30VA | Φ 65 | H35 | >84 | 10mA | 1.20 0.50kgs |
| 50VA | Φ 70 | H40 | >88 | 20mA | 1.15 1.30kgs |
| 100VA | Φ 85 | H60 | >90 | 30mA | 1.15 1.50kgs |
| 120VA | Φ 90 | H75 | >93 | 40mA | 1.10 2.00kgs |
| 200VA | Φ 110 | H80 | >93 | 100mA | 1.10 2.80kgs |
| 300VA | Φ 120 | H80 | >94 | 150mA | 1.08 3.50kgs |
| 500VA | Φ 130 | H80 | >94 | 150mA | 1.08 5.00kgs |
| 800VA | Φ 140 | H85 | >94 | 200mA | 1.08 6.50kgs |
| 1000VA | Φ 140 | H85 | >95 | 300mA | 1.05 8.50kgs |
| 1500VA | Φ 160 | H90 | >95 | 400mA | 1.05 12.0kgs |
| 2000VA | Φ 180 | H90 | >95 | 400mA | 1.05 15.0kgs |
| 4000VA | Φ 220 | H95 | >95 | 500mA | 1.05 20.0kgs |
| 6000VA | Φ 250 | H95 | >95 | 500mA |
1.05 25.0kgs |
We can also produce waterproof toroial transformer with AU plug
Waterproof Encapsulated transformer Application:
1. Garden light
2. LED underwater lamp
3.LED Ground light
4.Outdoor power Supply
5.Audio sound field
6.Stage lighting
7.Outdoor lighting
8.Christmas Lights
Grewin' s garden waterproof transformers are light weight, highly energy efficient water-safe making them ideal for outdoor lighting & Christmas lights.
Splash Proof protection from water in all direction
Approved safe with IP64 Rating for outdoor use
Approval number with NSW Department fair trade.
Fully water proof fuse designed to eliminate the possibility of an electrics shock (as defined in IEC standards 65 and 257)
Included is a special safety fuse which eliminates the possibility of electrocution.
GWET-105 means 105VA in black cover and Australia plug .The power range is between 105VA and 2000VA.
The round Enapsulated Transformer with wire leads ,power range: 25VA-6000VA
Advantages:
100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance
Main parameters:
Input Voltage:AC 220V 230v 110v (Define the voltage)
Output voltage:AC 12V / 24V (Define the voltage)
Totally, we can design and produce all kinds of toroidal transformers,welcome to contact with us .
