| Prod Model: |
gps gsm vehicle tracker gps103B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Weight: |
120g |
| Feature: |
Oil Cut and Resume/Hardware Resetting |
| Remote Controller: |
Optional |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months |
| Car Security: |
Engine Shut Remotely |
| GPS Tracker 103 Package: |
40 Unit /Carton in Standard Color Box |
| Delivery Time: |
2-3 Business Days |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
103 |
| Brand: |
Baanool GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

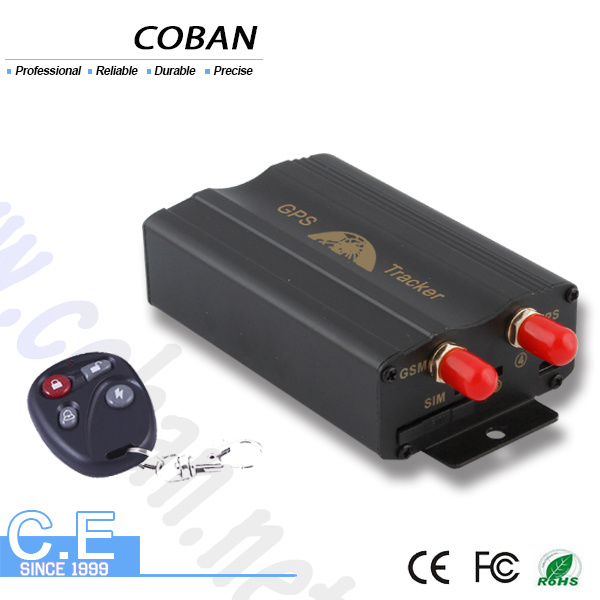

Manufacture Price GSM GPS Vehicle Tracker with free tracking software gps103bFeatures and functions*Small cubage, dimension: 83mm*54mm*26mm, weight: 120g, easy to hide.
*Support orientation without orientated server: It can find out
Real-time longitude and latitude, time and speed. By using public map software and entering longitude and latitude manually,
You can find out the real-time information of position.
*If the target you are inquiring enters into underground parking lot Or other GPS blind area, the tracker will inform you the last orientation.
*Get location in real street/address name
*Remote Engine-stop and Resume
*Active and deactive DOOR ALARM, ACC ALARM, SENSOR ALARM by remote control*tracking function by timing and frequency*Remote reset by SMS & reset button on the device
*Input Power:
12V-24V DC*GSM/GPS LED indicator
*Authorized number added and deleted function
*Support hidden alarm and monitor function
*Geo-fence: Set up a geo-fence for the unit to restrict its movements
Within a district. The unit will send the message to the authorized
Numbers when it breaches the district.
*Power supply disconnection alarm.
*Door alarm
*ACC alarm
*Movement alert: You can set up barriers when the vehicle is stopped.
Once moved, it can give an alarm to the authorized number.
*Over speed alarm: You can make the inspected target run according to fixed speed. It alarms when speed is exceeded.
*Low battery alarm function
*Check the vehicle status
Optional functions: *Quiver alarm*siren/hornSpecification| Brand | Specification |

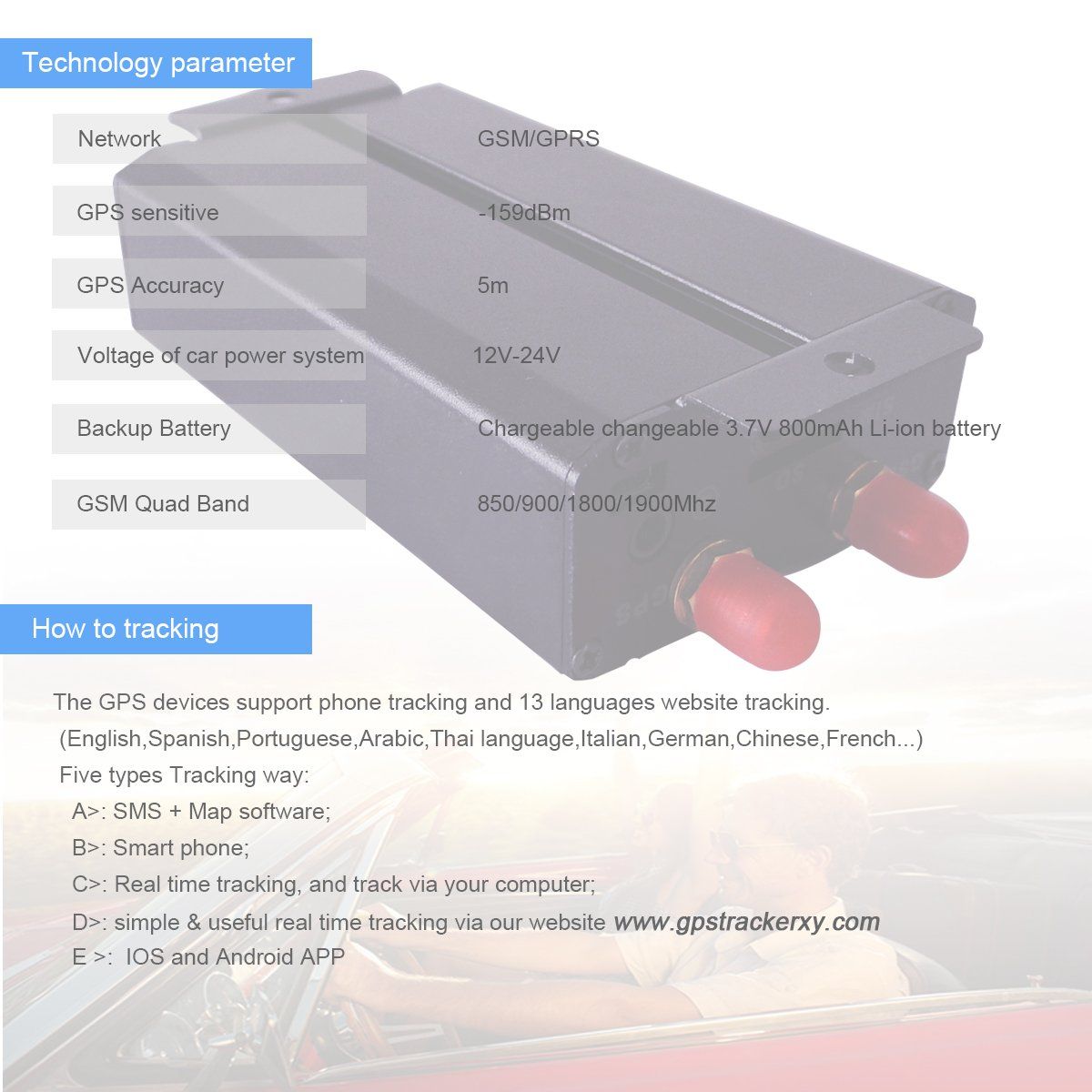

| Dimension | 83(L)x54(W)x26(H) mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Frequency | 850/900/1800/1900MHz |
| GSM/GPRS Module | SIM900B |
| GPS Module | SIRF3 chip |
| GPS sensitivity | -159dBm |
| GPS accuracy | 5m |
| GPS Start time | Cold status 45s |
| Warm status 35s |
| Hot status 1s |
| Humidity | 5%--95% non-condensing |
| Temperature | Operating Temperature | -20& deg; C to +65& deg; C |
| Storage Temperature | -40& deg; C to +85& deg; C |
| Voltage of Car power system | 12-24V |
| Battery Power | Chargeable changeable 3.7V 800mAh Li-ion battery |
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
