| Prod Model: |

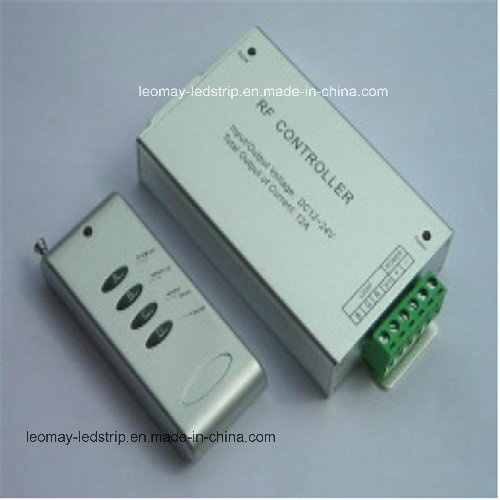

LM-ACT1 RGB 4 keys controller |
| Power: |
144W |
| Channel: |
3 Channels with 4A Each Channel |
| Warranty Time: |
2 Years |
| Delivery Lead Time: |
8-15 Days |
| Origion: |
Zhongshan,China |
| Application: |
LED Products |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Voltage: |
12V |
| Battery Type: |
Button Battery |
| Transmission Distance: |
About 30meters |
| Material: |
Electronic |
Product Description
Product Description
1 Dimension: 89x70x28mm
2 Working Temperature: -20~60 degree
3 Input Voltage: 12V DC
4 Connecting method: Common anode
5 Output current: 4A for each color
6 Remote controlled by RF(Radio Frequency) system
7 Can operate any common anode RGB lights
8 7 static colors and 4 changing color patterns
Electric character:
1. Input voltage: 12V DC
2. Output: Three COMS output
3. Connecting method: Common anode
4. Output current: : 4A for each color
Operation:
1. ON/OFF: Turn on or Turn off the controller. When it turns off, it will reserve the last patterns
2. Mode: It is a function key. Press one time, one color pattern appear. Total 11 patterns
3. Brightness+: Press one time, brightness increases one level. Total 256 levels
4. Brightness-: Press one time, brightness decreases one level.
