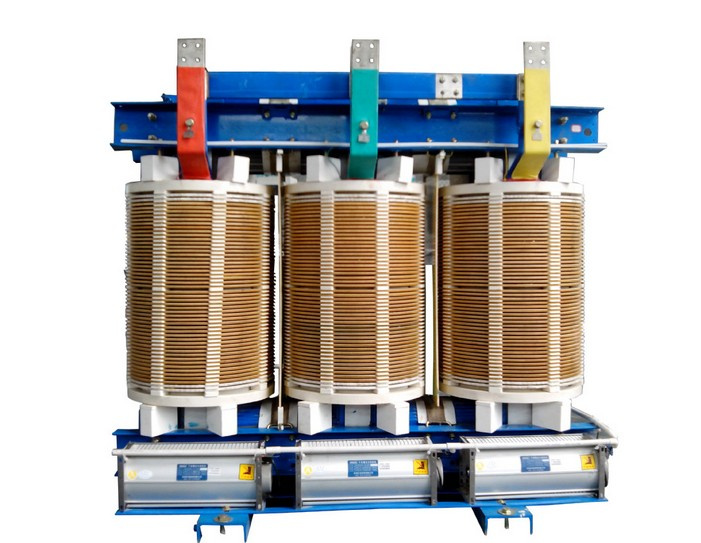

Manufacturer 3 Phase Dry Type Power Distribution Transformer

Prod Model:	SG10
Type:	Sg10
Connection Group Symbol:	Y, Yno /D, Yn11
Impendance Voltage:	4%/6%
Rated Voltage:	10kv
Rated Capacity:	30kVA to 2500kVA
Weight:	420kg to 5620kg
Application:	Electronic
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Brand:	Zhongyi

Product Description

Manufacturer 3 Phase Dry Type Power Distribution Transformer

Product Description
SG (B) 10 series of non-encapsulated H-class dry-type power transformers adopt the special process technology of German (MORA) dry-type transformers to ensure that the products fully meet the fire prevention and waterproof and environmental protection requirements. It is the ideal product for distribution systems and it's widely used in the subway, shipbuilding, mining, chemical, power companies and personnel-intensive buildings as well as other special requirements of the occasion for safety.

Technical specification

Product Model No.	Connection Group Symbol	Loss  W		Impedance Voltage(%)	No-load Current(%)	Overall Dimensions (without enclosure)  mm							Weight(Kg)
		No-load	Load			L	W	H	L1	L2	d	f
SG10-30	Y,yn0 D,yn11	200	690	4	2.4	900	1180	880	265	220	550	550	420
SG10-50		250	980		2.4	940	1180	985	295	220	550	550	450
SG10-80		370	1350		1.8	985	1180	1055	295	226	550	660	740
SG10-100		400	1540		1.8	1010	1180	1135	295	226	660	660	770
SG10-125		480	1770		1.6	1060	1180	1175	306	228	660	820	1005
SG10-160		540	2080		1.6	1120	1180	1230	312	228	660	820	1015
SG10-200		620	2530		1.4	1180	1230	1275	312	238	660	820	1035
SG10-250		720	2940		1.4	1290	1230	1330	315	238	660	820	1155
SG10-315		880	3760		1.2	1320	1340	1355	315	240	820	1070	1365
SG10-400		970	4410		1.2	1350	1340	1435	315	240	820	1070	1585
SG10-500		1160	5390		1.2	1395	1340	1495	325	258	820	1070	1795
SG10-630		1300	6450		1.0	1450	1340	1550	325	268	820	1070	2265
SG10-630		1290	6610		1.0	1545	1340	1445	325	268	820	1070	1930
SG10-800		1520	7750		1.0	1590	1340	1490	330	273	820	1070	2450
SG10-1000		1760	9300		1.0	1680	1340	1555	330	276	820	1070	2640
SG10-1250		2080	10200		1.0	1710	1470	1635	335	286	820	1070	3170
SG10-1600		2440	11340	6	1.0	1800	1470	1770	350	330	1070	1070	3985
SG10-2000		3320	14280		0.8	1850	1470	1890	350	346	1070	1070	4850
SG10-2500		4000	16560		0.8	1900	1470	2030	365	356	1070	1070	5620

Notes:
The Dimension and weight will be changed according to the requirements.
These two data in the table will be subject to the factory documents.

Why Choose us?
1.Specilized in manufacturing of oil-immersed power transformers,dry-type transformers, box-type substation,high and low voltage switchgear assembly and special-type transformers since 2008.
2.With the production capacity of value of 1000000kva,our transformers have been widely used in power plants, chemicals, construction, mining, metallurgy, rail transportation and so on.
3.All our products are ISO9001-2015 and CE certified,we also have a strong R&D team to meet any requirements of yours.
4.With great experience of the international transformer projects.

Packaging&Shipping
1. Wrapped with plastic film.
2. Fixed in a wooden case.
3. Wooden case on a pallet.
4. Iron shelf
5. Special packaging: According to customer's requirement
Delivery Details : 10-20 days according to order quantities

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according   to the quantity.
Q: What about the OEM
A: Yes,  OEM is accepted.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.

Our service
1, Your inquiry will be replied within 24 hours.
2, Customized service & perfect business solution
3, After-sale service: 1 years warranty and all-life services
